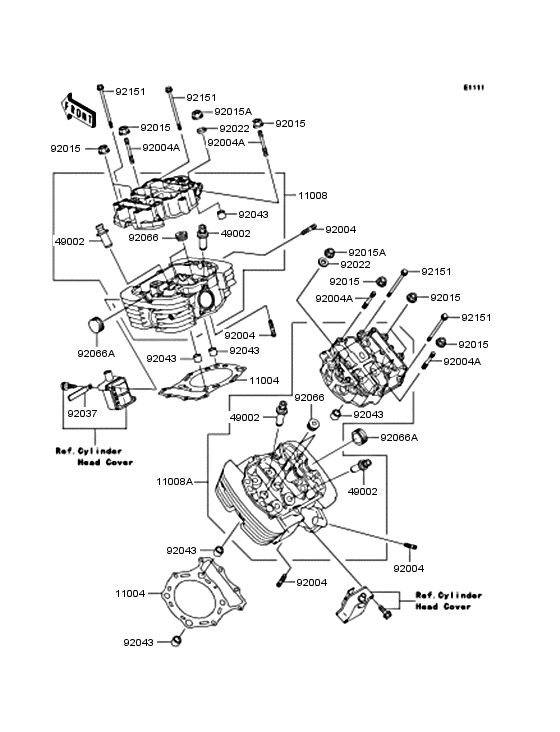

Cylinder head Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11004
|
11004
11004-1334 HEAD GASKETガスケツト(ヘツド) |
11004-1334 |
from US $65.52 |
||
|
11008
|
11008
11008-1407 HEAD-COMP-CYLINDER,FRヘツドコンプ(シリンダ)，FR |
11008-1407 |
from US $1,375.04 |
||
|
11008A
|
11008A
11008-1408 HEAD-COMP-CYLINDER,RRヘツドコンプ(シリンダ)，RR |
11008-1408 |
from US $1,375.04 |
||
|
49002
|
49002
49002-1088 GUIDE-VALVEガイド(バルブ) |
49002-1088 |
from US $21.09 |
||
|
92004
|
92004
92004-1214 STUDスタツド，8X25 |
92004-1214 |
from US $3.17 |
||
| replacement | |||||
|
92004
|
92004
172BA0825 STUDスタツド，8X25 |
172BA0825 |
from US $2.95 |
||
|
92004A
|
92004A
92004-1224 STUD,8X46.5スタツド，8X46.5 |
92004-1224 |
US $7.44 |
||
|
92015
|
92015
92015-1406 NUT,8MMナツト，フランジ，8MM |
92015-1406 |
from US $2.85 |
||
|
92015A
|
92015A
92015-1991 NUT,12MMナツト，12MM |
92015-1991 |
from US $3.48 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0115 NUT,12MMナツト，12MM |
92210-0115 |
from US $3.17 |
||
|
92022
|
92022
92022-1862 WASHER,12.3X25X3.2ワツシヤ，12.3X25X3.2 |
92022-1862 |
from US $3.80 |
||
|
92037
|
92037
92037-1539 CLAMP,WIRING HARNESSクランプ，L=45 |
92037-1539 |
from US $3.17 |
||
|
92043
|
92043
92043-1608 PINピン，13X16X14 |
92043-1608 |
from US $3.01 |
||
|
92066
|
92066
92066-1253 PLUG,PT1/2X12.5プラグ，PT1/2X12.5 |
92066-1253 |
from US $6.18 |
||
| replacement | |||||
|
92066
|
92066
92066-0002 PLUG,PT1/2X12.5プラグ，PT1/2X12.5 |
92066-0002 |
from US $5.54 |
||
|
92066A
|
92066A
92066-1442 PLUGプラグ |
92066-1442 |
US $7.04 |
||
| replacement | |||||
|
92066A
|
92066A
92066-0031 PLUGプラグ |
92066-0031 |
from US $7.86 |
||
|
92151
|
92151
92151-1058 BOLT,6X115ボルト，6X115 |
92151-1058 |
from US $3.33 |
||
