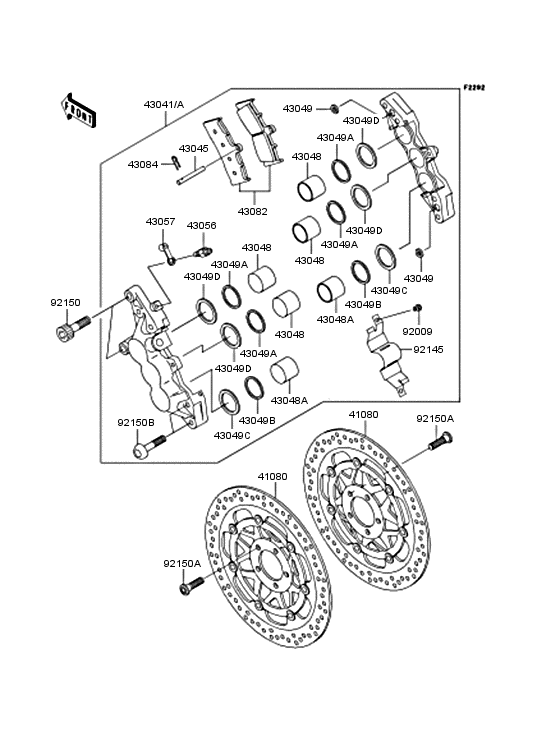

Front brake Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1511-5D DISC,FR,SILVER+DISC-Sデイスク，FR，シルバ-+デイスク(シルバ-) |
41080-1511-5D |
from US $448.67 |
||
|
43041
|
43041
43041-1863-GN CALIPER-ASSY,FR,LH,SIキヤリパアツシ，FR，LH，シルバ- |
43041-1863-GN |
from US $418.99 |
||
| replacements | |||||
|
43041
|
43041
43080-0021-GN CALIPER-SUB-ASSY,FR,Lキヤリパアツシ，FR，LH，シルバ- |
43080-0021-GN |
from US $331.26 |
||
|
43041
|
43041
43082-1274 PAD-ASSY-BRAKEキヤリパアツシ，FR，LH，シルバ- |
43082-1274 |
from US $78.30 |
||
|
43041A
|
43041A
43041-1864-GN CALIPER-ASSY,FR,RH,SIキヤリパアツシ，FR，RH，シルバ- |
43041-1864-GN |
from US $418.99 |
||
| replacements | |||||
|
43041A
|
43041A
43080-0022-GN CALIPER-SUB-ASSY,FR,Rキヤリパアツシ，FR，RH，シルバ- |
43080-0022-GN |
US $389.18 |
||
|
43041A
|
43041A
43082-1274 PAD-ASSY-BRAKEキヤリパアツシ，FR，RH，シルバ- |
43082-1274 |
from US $78.30 |
||
|
43045
|
43045
43045007 PINシヤフト(キヤリパ) |
43045007 |
from US $4.75 |
||
|
43048
|
43048
43048-1078 PISTON-CALIPERピストン(キヤリパ) |
43048-1078 |
from US $43.98 |
||
|
43048A
|
43048A
43048-1079 PISTON-CALIPERピストン(キヤリパ) |
43048-1079 |
from US $47.42 |
||
|
43049C
|
43049C
43049-1090 PACKING,PISTONPacking, piston seal; パツキング，ピストン シ-ル |
43049-1090 |
from US $7.75 |
||
|
43049D
|
43049D
43049-1096 PACKING,PISTON SEALPacking, piston seal パツキング，ピストン シ-ル |
43049-1096 |
from US $9.56 |
||
|
43049
|
43049
43049-1004 RING,SEAL6.5X11.5X2.2パツキング，6.5X11.5X2.2 |
43049-1004 |
from US $5.14 |
||
|
43049A
|
43049A
43049-1055 PACKING,PISTONパツキング，ピストン |
43049-1055 |
from US $9.56 |
||
|
43049B
|
43049B
43049-1059 PACKING,PISTONパツキング，ピストン |
43049-1059 |
from US $7.08 |
||
|
43056
|
43056
43056-1054
Breather-brake
ブリ-ザ(ブレ-キ) |
43056-1054 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SETブリ-ザ(ブレ-キ) |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDERキヤツプ(ブリ-ザ) |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1274 PAD-ASSY-BRAKEパツドアツシ(ブレ-キ) |
43082-1274 |
from US $78.30 |
||
|
43084
|
43084
43084003 CLIPクリツプ(パツド) |
43084003 |
from US $3.17 |
||
|
92009
|
92009
92009-1758 SCREWボルト，ソケツト，4X6 |
92009-1758 |
from US $1.74 |
||
|
92145
|
92145
92145-1482 SPRINGスプリング |
92145-1482 |
from US $13.46 |
||
|
92150B
|
92150B
92150-1973 BOLTボルト，ソケツト，8X40 |
92150-1973 |
from US $3.80 |
||
|
92150
|
92150
92150-1261 BOLT,SOCKET,10X37ボルト，ソケツト，10X37 |
92150-1261 |
from US $7.44 |
||
|
92150A
|
92150A
92150-1771 BOLT,SOCKET,8X30ボルト，ソケツト，8X30 |
92150-1771 |
US $6.05 |
||
| replacement | |||||
|
92150A
|
92150A
92154-1865 BOLT,SOCKET,8X30ボルト，ソケツト，8X30 |
92154-1865 |
from US $2.85 |
||
