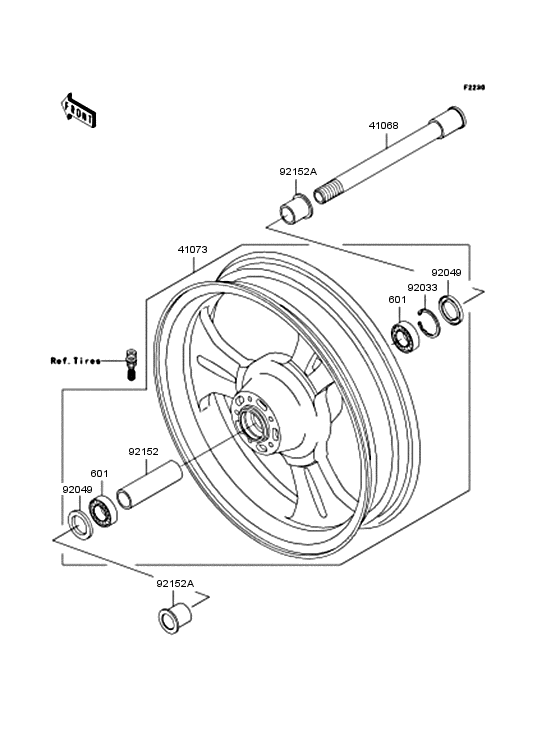

Front hub Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6005UU BEARING-BALL,#6005UUボ-ル ベアリング，#6005UU |
601B6005UU |
from US $22.59 |
||
|
41068
|
41068
41068-1458 AXLE,FRアクスル，FR |
41068-1458 |
from US $63.73 |
||
|
41073
|
41073
41073-1670 WHEEL-ASSY,FRホイ-ルアツシ，FR |
41073-1670 |
from US $1,090.84 |
||
|
92033
|
92033
92033-1042 CIRCLIP,47M/Mリング(スナツプ)，47MM |
92033-1042 |
from US $3.48 |
||
|
92049
|
92049
92049-1377 SEAL-OIL,BJN 32 47 5シ-ル(オイル)，BJN 32 47 5 |
92049-1377 |
from US $9.82 |
||
|
92152
|
92152
92152-1308 COLLAR,FR HUB,L=109カラ-，フロント ハブ，L=109 |
92152-1308 |
from US $17.74 |
||
|
92152A
|
92152A
92152-1309 COLLAR,FR,AXLE,L=34カラ-，フロント アクスル，L=34 |
92152-1309 |
from US $19.32 |
||
| replacement | |||||
|
92152A
|
92152A
92152-0178 COLLAR,FR,AXLE,L=34カラ-，フロント アクスル，L=34 |
92152-0178 |
from US $16.33 |
||
