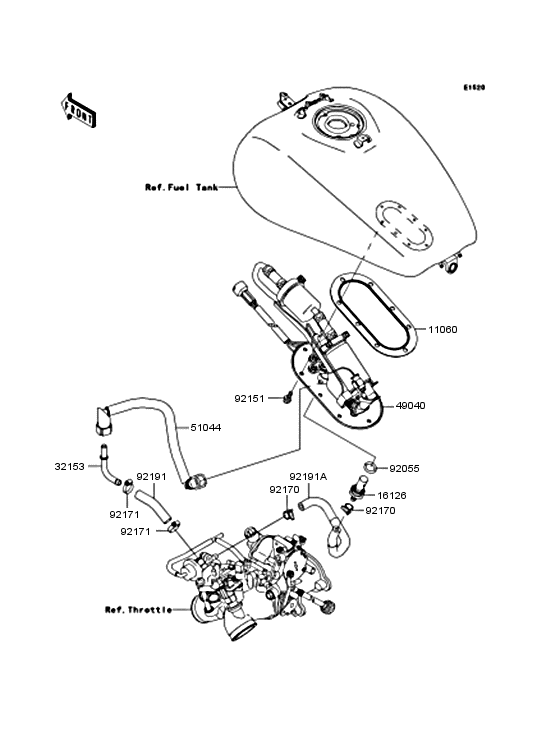

Fuel Pump Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11060-1929 GASKETガスケツト |
11060-1929 |
from US $36.50 |
||
|
16126
|
16126
16126-1418 VALVEバルブ |
16126-1418 |
US $90.81 |
||
|
32153
|
32153
32153-1414 PIPEパイプ |
32153-1414 |
from US $11.88 |
||
|
49040
|
49040
49040-1074
Pump-fuel
ポンプ(フユ-エル) |
49040-1074 |
— | ||
|
51044
|
51044
51044-1212 TUBE-ASSYチユ-ブアツシ |
51044-1212 |
from US $111 |
||
| replacement | |||||
|
51044
|
51044
51044-0010 TUBE-ASSYチユ-ブアツシ |
51044-0010 |
from US $113.10 |
||
|
92055
|
92055
92055-1667 RING-O,17.8X1.9リング(0)，14.8X2.4 |
92055-1667 |
from US $3.17 |
||
|
92151
|
92151
92151-1599 BOLT,FLANGED,5X12ボルト，フランジ，5X12 |
92151-1599 |
from US $1.27 |
||
|
92170
|
92170
92170-1492 CLAMPクランプ |
92170-1492 |
from US $3.17 |
||
|
92171
|
92171
92171-1274 CLAMPクランプ |
92171-1274 |
from US $6.81 |
||
|
92191
|
92191
92191-1536 TUBEチユ-ブ |
92191-1536 |
from US $8.24 |
||
|
92191A
|
92191A
92191-1557 TUBEチユ-ブ |
92191-1557 |
from US $16.32 |
||
