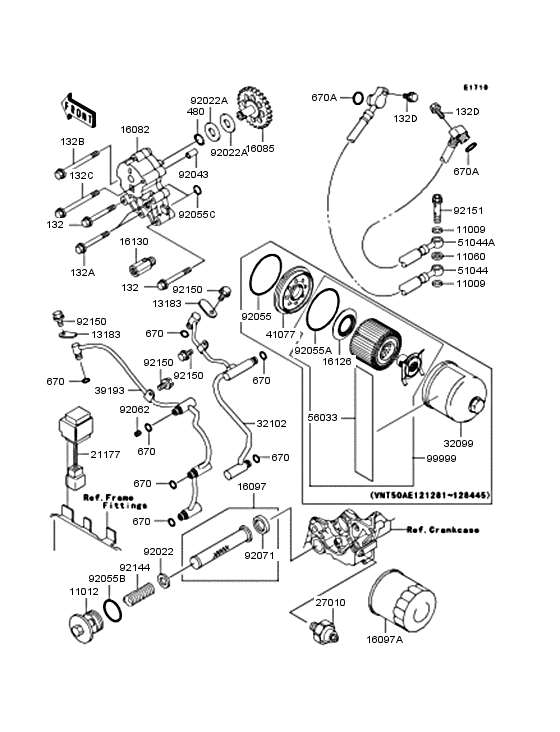

Oil pump/oil filter Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0645 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132G0645 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BA0645 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BA0645 |
from US $1.27 |
||
|
132A
|
132A
132G0655 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132G0655 |
from US $1.74 |
||
| replacement | |||||
|
132A
|
132A
132BA0655 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132BA0655 |
from US $1.27 |
||
|
132B
|
132B
132G0660 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132G0660 |
from US $1.90 |
||
| replacement | |||||
|
132B
|
132B
132BA0660 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BA0660 |
from US $1.43 |
||
|
11009
|
11009
11009-1344 GASKET,OIL PIPE,8.2X1ガスケツト，8.2X14X1.0 |
11009-1344 |
from US $3.33 |
||
|
11012
|
11012
11012-1461 CAP,OIL FILTERキヤツプ，オイル フイルタ |
11012-1461 |
from US $30.67 |
||
|
11060
|
11060
11060-1739 GASKET,PIPE JOINTガスケツト，パイプ ジヨイント |
11060-1739 |
from US $2.38 |
||
|
13183
|
13183
13183-1071 PLATEプレ-ト |
13183-1071 |
from US $3.94 |
||
|
16082
|
16082
16082-1155
PUMP-ASSY-OIL
ポンプアツシ(オイル) |
16082-1155 |
— | ||
|
16085
|
16085
16085-1345 OIL PUMP GEAR, 39Tギヤ，オイル ポンプ，39T |
16085-1345 |
from US $63.73 |
||
|
16097
|
16097
16097-1058 STRAINER-ASSY-OILフイルタアツシ(オイル) |
16097-1058 |
from US $14.69 |
||
|
16097A
|
16097A
16097-1072
Filter-assy-oil
フイルタアツシ(オイル) |
16097-1072 |
— | ||
| replacement | |||||
|
16097A
|
16097A
16097-0008 FILTER-ASSY-OILオイル フイルタアツシ(オイル) |
16097-0008 |
from US $14.84 |
||
|
16126
|
16126
16126-0012 VALVEバルブ |
16126-0012 |
from US $6.55 |
||
|
16130
|
16130
16130-1059 VALVE-ASSY-RELIEFバルブアツシ(リリ-フ) |
16130-1059 |
from US $28.12 |
||
|
21177
|
21177
21177-1058 CONTROLLERコントロ-ラ，オイル ランプ |
21177-1058 |
from US $87.07 |
||
|
27010
|
27010
27010-1360 SWITCH,OIL PRESSUREスイツチ，オイル プレツシヤ |
27010-1360 |
from US $30.67 |
||
|
32099
|
32099
32099-5003 CASEケ-ス |
32099-5003 |
from US $75.55 |
||
|
32102
|
32102
32102-1409 PIPEパイプ |
32102-1409 |
from US $87.07 |
||
|
39193
|
39193
39193-1036 PIPE-OILパイプ(オイル) |
39193-1036 |
from US $87.07 |
||
|
41077
|
41077
41077-0011 ADAPTERアダプタ |
41077-0011 |
from US $45.18 |
||
|
51044
|
51044
51044-1182 TUBE-ASSY,FRチユ-ブアツシ，FR |
51044-1182 |
from US $157.08 |
||
|
51044A
|
51044A
51044-1183 TUBE-ASSY,RRチユ-ブアツシ，RR |
51044-1183 |
from US $157.08 |
||
|
56033
|
56033
56033-0070 LABEL-MANUALラベル(マニユアル) |
56033-0070 |
from US $2.85 |
||
|
92022
|
92022
92022-1547 WASHER,20.1X28X1ワツシヤ，20.1X28X1 |
92022-1547 |
from US $2.69 |
||
|
92022A
|
92022A
92022-1852 WASHER,12X27.5X1.0ワツシヤ，12X27.5X1.0 |
92022-1852 |
from US $3.33 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14ピン，6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92055
|
92055
92055-0068 RING-O,59.6X2.4リング(0)，59.6X2.4 |
92055-0068 |
from US $3.80 |
||
|
92055A
|
92055A
92055-1209 RING-Oリング(0) |
92055-1209 |
from US $2.06 |
||
|
92055B
|
92055B
92055-1358 RING-Oリング(0)，35.2X2.4 |
92055-1358 |
from US $4.80 |
||
|
92055C
|
92055C
92055-1373 RING-O,13.2X2.4リング(0)，13.2X2.4 |
92055-1373 |
from US $3.33 |
||
|
92062
|
92062
92062-1078 NOZZLEノズル，6X8，グリ-ン |
92062-1078 |
from US $3.01 |
||
|
92071
|
92071
92071-100 GROMMET,OIL STRAINERグロメツト，オイル ストレ-ナ |
92071-100 |
from US $4.09 |
||
|
92144
|
92144
92144-1106 SPRINGスプリング |
92144-1106 |
from US $3.96 |
||
|
92150
|
92150
92150-1868 BOLT,6X12ボルト，6X12 |
92150-1868 |
from US $1.90 |
||
|
92151
|
92151
92151-1355 BOLT,BANJOボルト，バンジヨ，8X35 |
92151-1355 |
from US $8.55 |
||
|
99999
|
99999
99999-0032 KIT.,OIL FILTERキット.，オイル フイルタ |
99999-0032 |
from US $22.03 |
||
