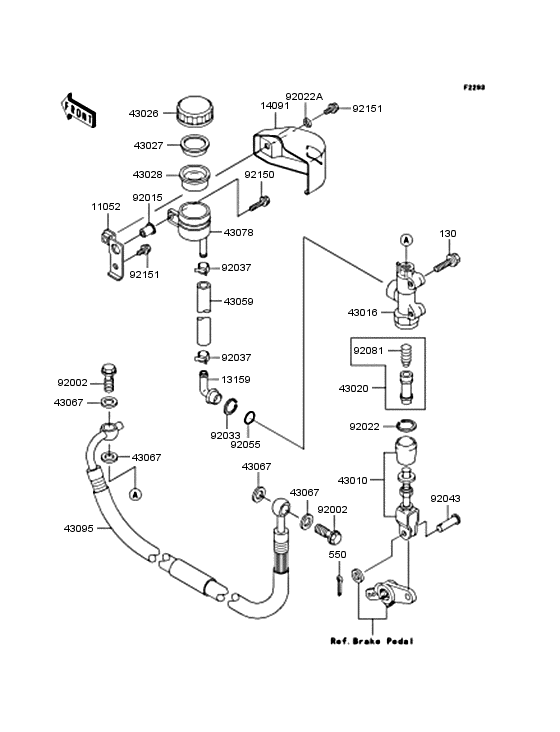

Rear master cylinder Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0830
BOLT-FLANGE,8X30
ボルト(ツバツキ)，8X30 |
130J0830 |
— | ||
| replacement | |||||
|
130
|
130
130BB0830 BOLT-FLANGE,8X30ボルト(ツバツキ)，8X30 |
130BB0830 |
from US $1.13 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
ワリ ピン，2.0X15 |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15ワリ ピン，2.0X15 |
550AA2015 |
from US $0.63 |
||
|
11052
|
11052
11052-1305 BRACKET,RESERVOIR TANブラケツト，リザ-バ タンク |
11052-1305 |
from US $6.34 |
||
|
13159
|
13159
13159-1052 CONNECTOR,RR MASTER Cコネクタ，RR マスタ シリンダ |
13159-1052 |
from US $9.98 |
||
|
14091
|
14091
14091-1341 COVER,RESERVOIR TANKカバ-，リザ-バ |
14091-1341 |
from US $57.60 |
||
| replacement | |||||
|
14091
|
14091
14091-0412 COVER,RESERVOIR TANKカバ-，リザ-バ |
14091-0412 |
from US $45.88 |
||
|
43010
|
43010
43010-1055 ROD-ASSY-BRAKEロツドアツシ(ブレ-キ) |
43010-1055 |
from US $46.68 |
||
|
43016
|
43016
43016-1122 CYLINDER-MASTER,RRシリンダ(マスタ)，RR |
43016-1122 |
from US $151.10 |
||
|
43020
|
43020
43020-1057 PISTON-COMP-BRAKEピストンコンプ(ブレ-キ) |
43020-1057 |
from US $42.04 |
||
|
43026
|
43026
43026-1051 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1051 |
from US $23.19 |
||
|
43027
|
43027
43027-1051 PLATE-DIAPHRAGMプレ-ト(ダイアフラム) |
43027-1051 |
from US $4.59 |
||
|
43028
|
43028
43028-1057 DIAPHRAGMダイアフラム |
43028-1057 |
from US $13.94 |
||
|
43059
|
43059
43059-1318 HOSE-BRAKE,RR MASTERホ-ス(ブレ-キ)，RR マスタ シリンダ |
43059-1318 |
from US $22.59 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
49091-0001 |
from US $1.27 |
||
|
43078
|
43078
43078-1178 RESERVOIR,RR MASTER Cリザ-バ，リヤ マスタ- シリンダ |
43078-1178 |
from US $19.01 |
||
|
43095
|
43095
43095-1219 HOSE-BRAKE,RRホ-ス(ブレ-キ)，RR |
43095-1219 |
from US $113.55 |
||
|
92002
|
92002
92002-1888
BOLT,OIL,L=23
ボルト，オイル，L=23 |
92002-1888 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92015
|
92015
92015-1700 NUTナツト |
92015-1700 |
from US $6.57 |
||
|
92022
|
92022
92022-1601 RING-SNAP,20.9X24.6X1ワツシヤ，サ-クリツプ |
92022-1601 |
from US $4.44 |
||
| replacement | |||||
|
92022
|
92022
92033-0079 RING-SNAP,20.9X24.6X1ワツシヤ，サ-クリツプ |
92033-0079 |
from US $3.80 |
||
|
92022A
|
92022A
92022-183 WASHER-PLAINワツシヤ，6.2X11X1.5 |
92022-183 |
from US $2.53 |
||
|
92033
|
92033
92033-1186 RING-SNAP,20.5MMリング(スナツプ)，20.5MM |
92033-1186 |
from US $3.01 |
||
|
92037
|
92037
92037-1547 CLAMPクランプ，ブレ-キ ホ-ス |
92037-1547 |
from US $8.08 |
||
|
92043
|
92043
92043-1013 PINピン，8X16 |
92043-1013 |
from US $6.65 |
||
|
92055
|
92055
92055-1251 RING-O,14.8X2.4リング(0) |
92055-1251 |
from US $3.96 |
||
| replacement | |||||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4リング(0) |
92055-0741 |
from US $1.90 |
||
|
92081
|
92081
92081-1737 SPRINGスプリング |
92081-1737 |
from US $8.08 |
||
|
92150
|
92150
92150-1829 BOLT,6X25ボルト，6X25 |
92150-1829 |
from US $2.69 |
||
|
92151
|
92151
92151-1401 BOLT,FLANGED,6X12ボルト，フランジ，6X12 |
92151-1401 |
from US $1.21 |
||
