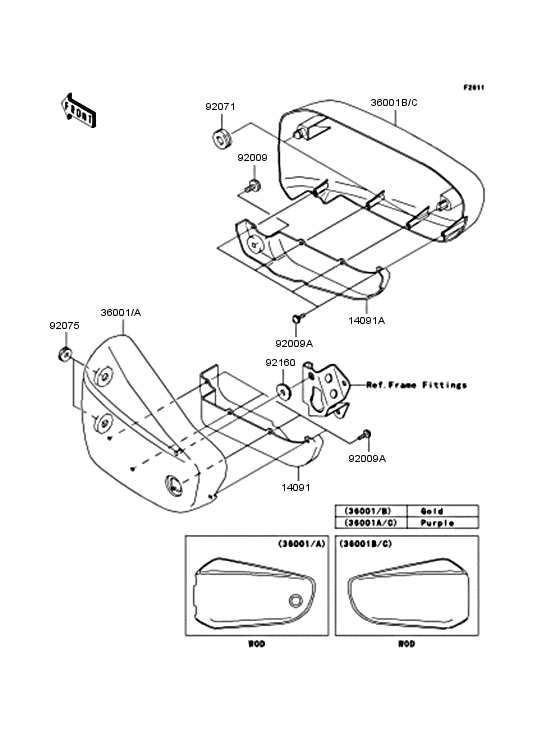

Side covers Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-1343 COVER,SIDE COVER,LHカバ-，サイド カバ-，LH |
14091-1343 |
from US $14.57 |
||
|
14091A
|
14091A
14091-1344 COVER,SIDE COVER,RHカバ-，サイド カバ-，RH |
14091-1344 |
US $14.57 |
||
|
36001A
|
36001A
36001-1649-3F COVER-SIDE,LH,M.M.PURカバ-(サイド)，LH，パープル |
36001-1649-3F |
from US $233.01 |
||
|
36001B
|
36001B
36001-1650-217 COVER-SIDE,RH,C.GOLDカバ-(サイド)，RH，ゴ-ルド |
36001-1650-217 |
from US $213.43 |
||
|
36001C
|
36001C
36001-1650-3F COVER-SIDE,RH,M.M.PURカバ-(サイド)，RH，パープル |
36001-1650-3F |
from US $233.01 |
||
|
36001
|
36001
36001-1649-217 COVER-SIDE,LH,C.GOLDカバ-(サイド)，LH，ゴ-ルド |
36001-1649-217 |
from US $237.42 |
||
|
92009
|
92009
92009-1662 SCREWスクリユ-，6X14 |
92009-1662 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1792 SCREW,TAPPING,4X14スクリユ-，タツピング，4X14 |
92009-1792 |
from US $1.43 |
||
|
92071
|
92071
92071-1131 GROMMETグロメツト |
92071-1131 |
from US $5.23 |
||
|
92075
|
92075
92075-1629 DAMPERダンパ |
92075-1629 |
from US $3.90 |
||
|
92160
|
92160
92160-1944 DAMPERダンパ |
92160-1944 |
from US $1.90 |
