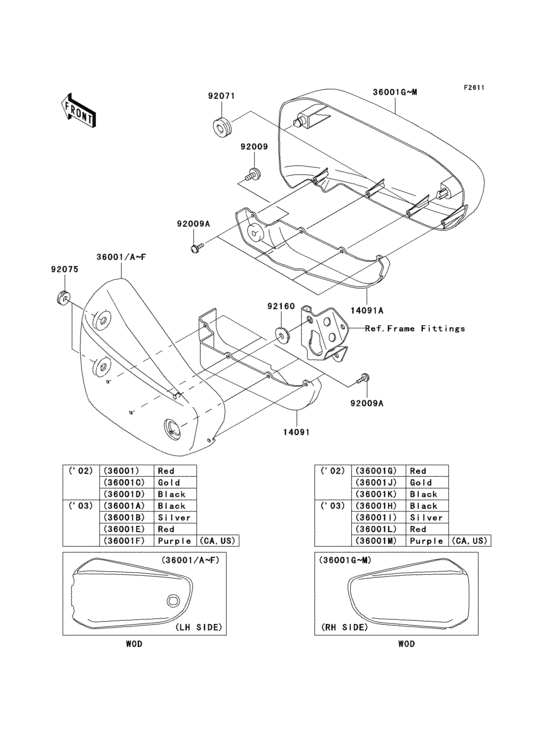

Side covers Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Black Pearl (B5)
- Model code
- VN1500-P2
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-1343 COVER,SIDE COVER,LH |
14091-1343 |
from US $14.57 |
||
|
14091A
|
14091A
14091-1344 COVER,SIDE COVER,RH |
14091-1344 |
US $14.57 |
||
|
36001A
|
36001A
36001-1649-B5 COVER-SIDE,LH,BLACK |
36001-1649-B5 |
US $230.51 |
||
|
36001H
|
36001H
36001-1650-B5 COVER-SIDE,RH,BLACK |
36001-1650-B5 |
US $230.51 |
||
|
92009
|
92009
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1792 SCREW,TAPPING,4X14 |
92009-1792 |
from US $1.43 |
||
|
92071
|
92071
92071-1131 GROMMET |
92071-1131 |
from US $5.23 |
||
|
92075
|
92075
92075-1629 DAMPER |
92075-1629 |
from US $3.90 |
||
|
92160
|
92160
92160-1944 DAMPER |
92160-1944 |
from US $1.90 |
