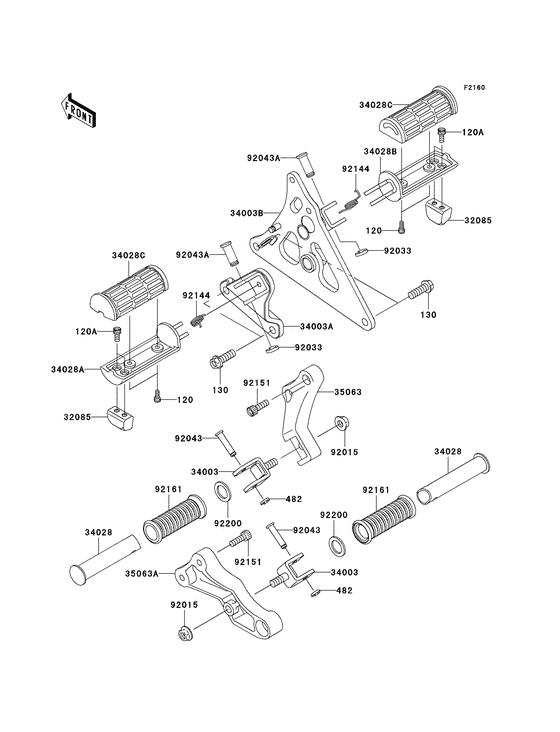

Footrests Diagram Kawasaki VN1600 Vulcan 1600 Mean Streak
- Year
- 2004
- Model code
- VN1600-B1
- Sales region
- USA
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0512
BOLT-SOCKET,5X12
Bolt-socket,5x12; |
120S0512 |
— | ||
| replacement | |||||
|
120
|
120
120CB0512 BOLT-SOCKET,5X12Bolt-socket,5x12; |
120CB0512 |
from US $0.95 |
||
|
120A
|
120A
120S0614 BOLT-SOCKET,6X14,BLACBolt-socket,6x14; |
120S0614 |
from US $1.43 |
||
| replacement | |||||
|
120A
|
120A
120CB0614 BOLT-SOCKET,6X14,BLACBolt-socket,6x14; |
120CB0614 |
from US $1.11 |
||
|
130
|
130
130J1030
BOLT-FLANGED,10X30,BL
Bolt-flanged,10x30; |
130J1030 |
— | ||
| replacements | |||||
|
130
|
130
130BB1030 BOLT-FLANGED,10X30,BLBolt-flanged,10x30; |
130BB1030 |
from US $1.43 |
||
|
130
|
130
130CB1030 BOLT-FLANGED,10X30,BLBolt-flanged,10x30; |
130CB1030 |
from US $1.43 |
||
|
482
|
482
482L7000 CIRCLIP-TYPE-E |
482L7000 |
US $3.64 |
||
| replacement | |||||
|
482
|
482
482EA7000 CIRCLIP-TYPE-E |
482EA7000 |
from US $3.01 |
||
|
32085
|
32085
32085-1534 STOPPER,BANK SENSORStopper,bank sensor; |
32085-1534 |
from US $16.63 |
||
|
34003
|
34003
34003-0015 HOLDER-STEP,RRHolder-step,rr; |
34003-0015 |
from US $20.38 |
||
|
34003A
|
34003A
34003-0036 HOLDER-STEP,FR,LHHolder-step,fr,lh; |
34003-0036 |
US $128.14 |
||
|
34003B
|
34003B
34003-1507 HOLDER-STEP,FR,RHHolder-step,fr,rh; |
34003-1507 |
from US $121.62 |
||
|
34028
|
34028
34028-0017 STEP,RRStep,rr; |
34028-0017 |
from US $18.37 |
||
|
34028A
|
34028A
34028-1519 STEP,FR,LHStep,fr,lh; |
34028-1519 |
from US $39.34 |
||
|
34028B
|
34028B
34028-1520 STEP,FR,RHStep,fr,rh; |
34028-1520 |
from US $39.34 |
||
|
34028C
|
34028C
34028-1522 STEP,RUBBERStep,rubber; |
34028-1522 |
US $20.64 |
||
| replacement | |||||
|
34028C
|
34028C
34028-0394
STEP,RUBBER
Step,rubber; |
34028-0394 |
— | ||
|
35063
|
35063
35063-0245-796 STAY,REAR STEP,LH,P.RStay,rear step,lh,p.red; |
35063-0245-796 |
from US $64.20 |
||
|
35063A
|
35063A
35063-0246-796 STAY,REAR STEP,RH,P.RStay,rear step,rh,p.red; |
35063-0246-796 |
from US $64.20 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MMNut,flanged,10mm; |
92015-1428 |
from US $3.01 |
||
|
92033
|
92033
92033-1166 RING-SNAP,10MMRing-snap,10mm; |
92033-1166 |
from US $2.53 |
||
|
92043
|
92043
92043-1339 PINPin,8x36.5; |
92043-1339 |
from US $5.23 |
||
|
92043A
|
92043A
92043-1358 PIN,12X37Pin,12x37; |
92043-1358 |
from US $5.39 |
||
|
92144
|
92144
92144-1126 SPRING,STEP RETURNSpring,step return; |
92144-1126 |
from US $3.64 |
||
|
92151
|
92151
92151-1525 BOLT,SOCKET,8X25Bolt,socket,8x25; |
92151-1525 |
from US $1.90 |
||
|
92161
|
92161
92161-0232 DAMPER,STEPDamper,step; |
92161-0232 |
from US $9.82 |
||
|
92200
|
92200
92200-1482 WASHER,22.5X33X2.3Washer,22.5x33x2.3; |
92200-1482 |
from US $1.43 |
||
