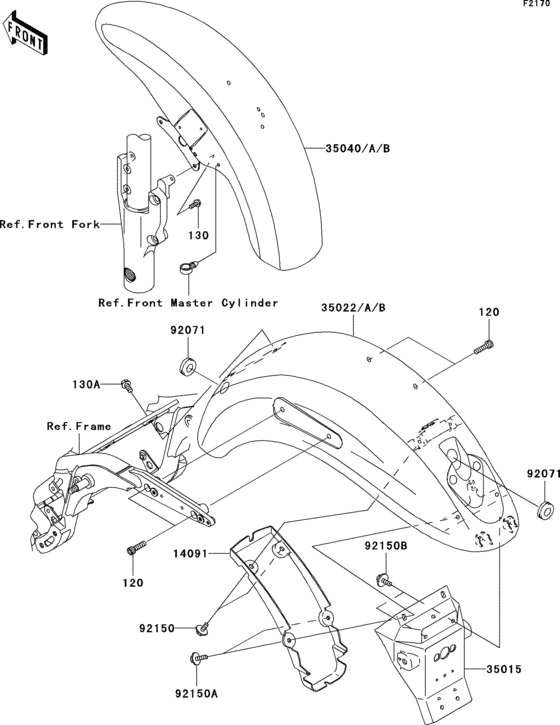

Fenders Diagram Kawasaki VN1600 VN1600 Mean Streak
- Year
- 2004
- Model code
- VN1600-B1H
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLAC |
120CB0830 |
from US $1.27 |
||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
130A
|
130A
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
14091
|
14091
14091-1348 COVER,TAIL LAMP |
14091-1348 |
US $18.53 |
||
|
35015
|
35015
35015-0002 FLAP-COMP |
35015-0002 |
from US $47.52 |
||
|
35022
|
35022
35022-0013-470 Fender-comp-rear,p.b.orange |
35022-0013-470 |
US $925.66 |
||
|
35022A
|
35022A
35022-0013-660 FENDER-COMP-REAR,M.S.BLACK |
35022-0013-660 |
from US $925.66 |
||
|
35040
|
35040
35040-1053-470 Fender-comp-front,p.b.orange |
35040-1053-470 |
US $168.71 |
||
|
35040A
|
35040A
35040-1053-660 FENDER-COMP-FRONT,M.S.BLACK |
35040-1053-660 |
from US $165.54 |
||
|
92071
|
92071
92071-1265 GROMMET |
92071-1265 |
from US $2.69 |
||
|
92150
|
92150
92150-1689 BOLT,FLANGED,6X14 |
92150-1689 |
from US $2.38 |
||
|
92150A
|
92150A
92150-1801 BOLT |
92150-1801 |
from US $3.80 |
||
|
92150B
|
92150B
92150-1894 BOLT,FLANGED,6X16 |
92150-1894 |
from US $3.33 |
