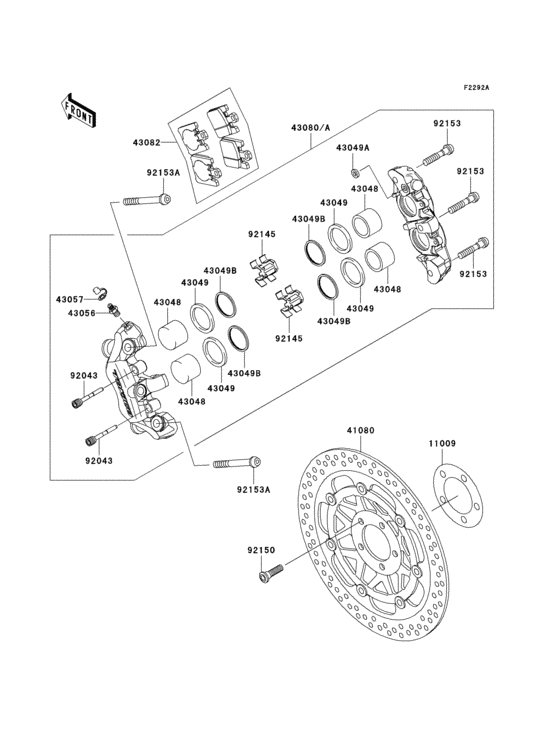

Front brake(b2) Diagram Kawasaki VN1600 Vulcan 1600 Mean Streak
- Year
- 2005
- Colour
- Ebony (H8)
- Model code
- VN1600-B2
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1754 GASKET,DISC PLATE |
11009-1754 |
from US $13.31 |
||
|
41080
|
41080
41080-0072-5D DISC,FR,SILVER+DISC-S |
41080-0072-5D |
from US $503.88 |
||
|
43048
|
43048
43048-0004 PISTON-CALIPER |
43048-0004 |
US $62.70 |
||
|
43049
|
43049
43049-0003 PACKING,PISTON |
43049-0003 |
from US $11.43 |
||
|
43049A
|
43049A
43049-1004 RING,SEAL6.5X11.5X2.2 |
43049-1004 |
from US $5.14 |
||
|
43049B
|
43049B
43049-1107 PACKING,WIPER |
43049-1107 |
from US $6.97 |
||
|
43056
|
43056
43056-1054
Breather-brake
|
43056-1054 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43080
|
43080
43080-0017-GN CALIPER-SUB-ASSY,FR,L |
43080-0017-GN |
from US $384.45 |
||
|
43080A
|
43080A
43080-0018-GN CALIPER-SUB-ASSY,FR,R |
43080-0018-GN |
from US $384.45 |
||
|
43082
|
43082
43082-0031 PAD-ASSY-BRAKE |
43082-0031 |
from US $85.10 |
||
|
92043
|
92043
92043-1709 PIN,PAD |
92043-1709 |
from US $6.38 |
||
|
92145
|
92145
92145-1568 SPRING,PAD |
92145-1568 |
from US $12.83 |
||
|
92150
|
92150
92150-1771 BOLT,SOCKET,8X30 |
92150-1771 |
US $6.05 |
||
| replacement | |||||
|
92150
|
92150
92154-1865 BOLT,SOCKET,8X30 |
92154-1865 |
from US $2.85 |
||
|
92153
|
92153
92153-0360 BOLT |
92153-0360 |
from US $3.17 |
||
|
92153A
|
92153A
92153-0577 BOLT,SOCKET,10X60 |
92153-0577 |
from US $2.85 |
||
| replacement | |||||
|
92153A
|
92153A
92153-1531 BOLT,SOCKET,10X60 |
92153-1531 |
from US $4.25 |
||
