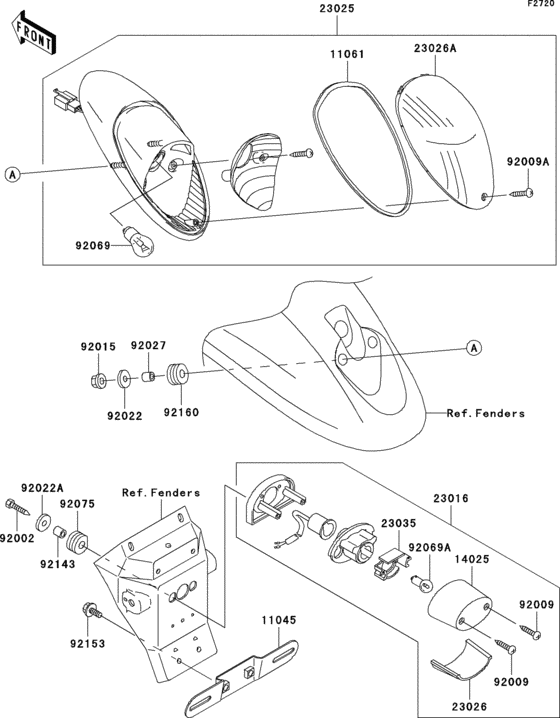

Taillight(s) Diagram Kawasaki VN1600 Vulcan 1600 Mean Streak
- Year
- 2005
- Model code
- VN1600-B2
- Sales region
- Canada
- Engine Capacity
- 1600
- Frame
- JKBVNKB1 5A005001 - 999999
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11045
|
11045
11045-1387 BRACKET,LICENSE LAMP |
11045-1387 |
from US $11.88 |
||
|
11061
|
11061
11061-1089 GASKET,TAIL LAMP LENS |
11061-1089 |
from US $5.54 |
||
|
14025
|
14025
14025-1725 COVER,LICENSE LAMP |
14025-1725 |
from US $13.15 |
||
|
23016
|
23016
23016-1194
LAMP-ASSY,LICENSE
|
23016-1194 |
— | ||
|
23026
|
23026
23026-1064
LENS,LICENSE LAMP
|
23026-1064 |
— | ||
| replacement | |||||
|
23026
|
23026
23026-0021 LENS,LICENSE LAMP |
23026-0021 |
from US $19.32 |
||
|
23035
|
23035
23035-1066 REFLECTOR-LAMP,LICENS |
23035-1066 |
from US $14.10 |
||
|
92002
|
92002
92153-1424 BOLT,TAPPING,5X25 |
92153-1424 |
from US $0.48 |
||
|
92009
|
92009
92009-1378 SCREW, TAPPING, 4X20 |
92009-1378 |
from US $2.69 |
||
|
92009A
|
92009A
92009-1966 SCREW,TAPPING,4X16 |
92009-1966 |
from US $1.11 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92022A
|
92022A
92200-0284 WASHER,5.5X20X1.2 |
92200-0284 |
from US $0.95 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92069
|
92069
92069-063 BULB,12V 21/5W |
92069-063 |
from US $6.49 |
||
|
92069A
|
92069A
92069-1055 BULB,12V 5W |
92069-1055 |
from US $3.01 |
||
|
92075
|
92075
92075-1870 DAMPER |
92075-1870 |
from US $3.17 |
||
|
92143
|
92143
92143-1047 COLLAR |
92143-1047 |
from US $2.85 |
||
|
92153
|
92153
92153-0684 BOLT,6X16 |
92153-0684 |
from US $3.20 |
||
|
92160
|
92160
92160-1162 DAMPER |
92160-1162 |
from US $3.90 |
||
