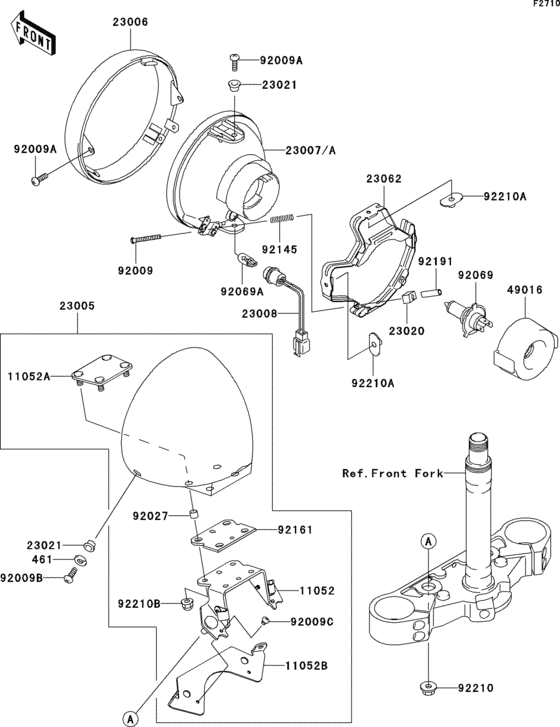

Headlight(s) Diagram Kawasaki VN1600 VN1600 Mean Streak
- Year
- 2005
- Model code
- VN1600-B2H
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461S0500 WASHER-SPRING,5MM |
461S0500 |
from US $0.82 |
||
|
11052
|
11052
11052-1265 BRACKET,HEAD LAMP BOD |
11052-1265 |
from US $19.48 |
||
|
11052A
|
11052A
11052-1266 BRACKET,HEAD LAMP BOD |
11052-1266 |
from US $16.95 |
||
|
11052B
|
11052B
11052-1371 BRACKET,HEAD LAMP BOD |
11052-1371 |
from US $19.48 |
||
|
23005
|
23005
23005-1202 BODY-COMP-HEAD LAMP |
23005-1202 |
from US $225.06 |
||
|
23006
|
23006
23006-0001 RIM-LAMP |
23006-0001 |
from US $90.79 |
||
|
23007
|
23007
23007-1360 Lens-comp,head lamp |
23007-1360 |
US $156.38 |
||
|
23008
|
23008
23008-1609 SOCKET-ASSY,PARKING L |
23008-1609 |
from US $17.21 |
||
|
23020
|
23020
23020018 NUT,4MM |
23020018 |
from US $3.17 |
||
|
23021
|
23021
23021010 WASHER |
23021010 |
from US $3.01 |
||
|
23062
|
23062
23062-1131 BRACKET,HEADLAMP |
23062-1131 |
from US $40.69 |
||
|
49016
|
49016
49016-1203 COVER-SEAL,SOCKET |
49016-1203 |
from US $9.98 |
||
|
92009
|
92009
92009-1816 SCREW |
92009-1816 |
from US $3.17 |
||
|
92009A
|
92009A
92009-1879 SCREW,5X16 |
92009-1879 |
from US $0.79 |
||
|
92009B
|
92009B
92009-1947 SCREW,5MM |
92009-1947 |
from US $1.43 |
||
|
92009C
|
92009C
92009-1988 SCREW,4X5 |
92009-1988 |
from US $1.43 |
||
|
92027
|
92027
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
92069
|
92069
92069-0050 BULB,12V 60/55W,H412V 60/55W,H4 |
92069-0050 |
from US $18.68 |
||
|
92069A
|
92069A
92069-1016 BULB,12V 5W |
92069-1016 |
from US $3.96 |
||
|
92145
|
92145
92145-1268 SPRING,HEAD LAMP LENS |
92145-1268 |
from US $3.01 |
||
|
92161
|
92161
92161-1212 DAMPER,HEAD LAMP BODY |
92161-1212 |
from US $10.14 |
||
|
92191
|
92191
92191-1217 TUBE |
92191-1217 |
from US $1.43 |
||
|
92210
|
92210
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92210A
|
92210A
92210-1060 NUT |
92210-1060 |
from US $1.43 |
||
|
92210B
|
92210B
92210-1252 NUT,CAP,6MM |
92210-1252 |
from US $1.37 |
||
| replacement | |||||
|
92210B
|
92210B
92210-0322 NUT,CAP,6MM |
92210-0322 |
from US $0.63 |
||
