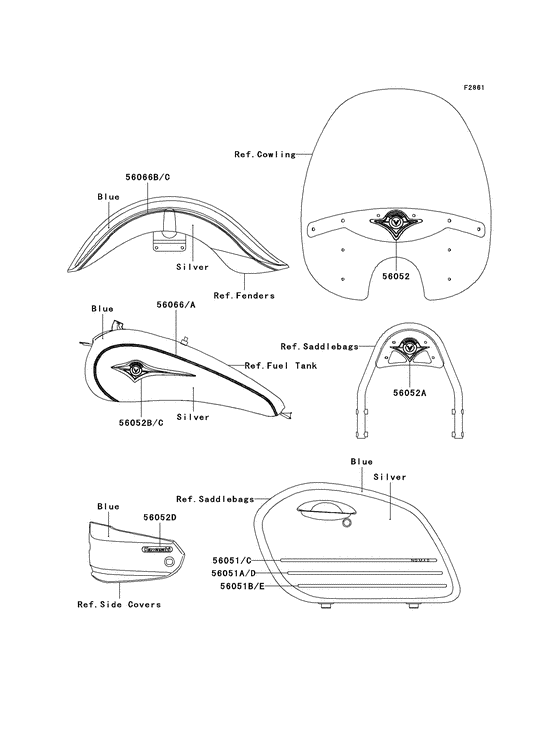

Decals (Blue) Diagram Kawasaki VN1600 Vulcan 1600 Nomad
- Year
- 2005
- Model code
- VN1600-D1
- Sales region
- USA
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Nomad/ VN1600 Classic Tourer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56051
|
56051
56051-1811 MARK,SIDE BAG COVER,UMark,side bag cover,upp,lh; |
56051-1811 |
from US $69.35 |
||
|
56051A
|
56051A
56051-1812 MARK,SIDE BAG COVER,CMark,side bag cover,cnt,lh; |
56051-1812 |
from US $65.97 |
||
|
56051B
|
56051B
56051-1813 MARK,SIDE BAG COVER,LMark,side bag cover,lwr,lh; |
56051-1813 |
from US $65.97 |
||
|
56051C
|
56051C
56051-1814 MARK,SIDE BAG COVER,UMark,side bag cover,upp,rh; |
56051-1814 |
US $76.50 |
||
|
56051D
|
56051D
56051-1815 MARK,SIDE BAG COVER,CMark,side bag cover,cnt,rh; |
56051-1815 |
from US $65.97 |
||
|
56051E
|
56051E
56051-1816 MARK,SIDE BAG COVER,LMark,side bag cover,lwr,rh; |
56051-1816 |
from US $65.97 |
||
|
56052
|
56052
56052-0477 MARK,OUTER PLATEMark,outer plate; |
56052-0477 |
from US $51.13 |
||
|
56052A
|
56052A
56052-0478 MARK,BACKRESTMark,backrest; |
56052-0478 |
from US $51.13 |
||
|
56052B
|
56052B
56052-0603 MARK,FUEL TANK,LHMark,fuel tank,lh; |
56052-0603 |
from US $87.71 |
||
|
56052C
|
56052C
56052-0604 MARK,FUEL TANK,RHMark,fuel tank,rh; |
56052-0604 |
from US $87.71 |
||
|
56052D
|
56052D
56052-1533 MARK,SIDE COVER,KAWASMark,side cover,kawasaki; |
56052-1533 |
from US $18.53 |
||
|
56066
|
56066
56066-1803 Pattern,fuel tank,lhPattern,fuel tank,lh; |
56066-1803 |
from US $70.92 |
||
|
56066A
|
56066A
56066-1804 Pattern,fuel tank,rhPattern,fuel tank,rh; |
56066-1804 |
from US $70.92 |
||
|
56066B
|
56066B
56066-1805 PATTERN,FR FENDER,LHPattern,fr fender,lh; |
56066-1805 |
from US $76.52 |
||
|
56066C
|
56066C
56066-1806 PATTERN,FR FENDER,RHPattern,fr fender,rh; |
56066-1806 |
from US $76.52 |
