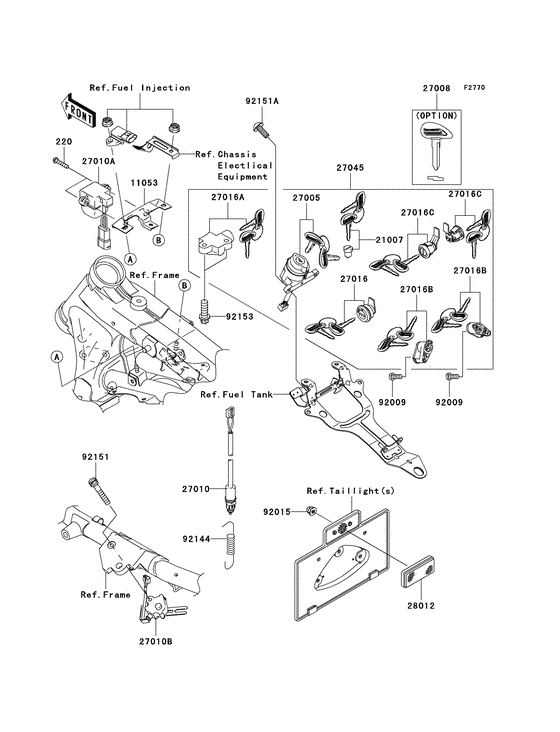

Ignition switch Diagram Kawasaki VN1600 Vulcan 1600 Nomad
- Year
- 2005
- Model code
- VN1600-D1
- Sales region
- USA
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Nomad/ VN1600 Classic Tourer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220C0420
SCREW-PAN-CROS,4X20
Screw-pan-cros,4x20; |
220C0420 |
— | ||
| replacement | |||||
|
220
|
220
220AB0420 SCREW-PAN-CROS,4X20Screw-pan-cros,4x20; |
220AB0420 |
from US $1.29 |
||
|
11053
|
11053
11053-0261 BRACKET,DOWN SENSORBracket,down sensor; |
11053-0261 |
from US $10.27 |
||
|
21007
|
21007
21007-5053
SWITCH-ASSY,TANK CAP
Rotor,lock,tank cap; |
21007-5053 |
— | ||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAPRotor,lock,tank cap; |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-0001 SWITCH-ASSY-IGNITION |
27005-0001 |
from US $193.12 |
||
|
27008
|
27008
27008-1211 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-1211 |
from US $21.23 |
||
|
27010
|
27010
27010-1412 SWITCH,REAR BRAKESwitch,rear brake; |
27010-1412 |
from US $26.33 |
||
|
27010A
|
27010A
27010-1416 SWITCH,DOWN SENSORSwitch,down sensor; |
27010-1416 |
US $149.60 |
||
|
27010B
|
27010B
27010-1470 SWITCH,SIDE STANDSwitch,side stand; |
27010-1470 |
from US $45.33 |
||
|
27016
|
27016
27016-5279
LOCK-ASSY,PAD
Lock-assy,lid; |
27016-5279 |
— | ||
| replacement | |||||
|
27016
|
27016
27016-5182 LOCK-ASSY,PADLock-assy,lid; |
27016-5182 |
from US $49.22 |
||
|
27016A
|
27016A
27016-5298 LOCK-ASSY,STEERINGLock-assy,steering; |
27016-5298 |
from US $104.43 |
||
|
27016B
|
27016B
27016-5311 LOCK-ASSY,HELMETLock-assy,helmet; |
27016-5311 |
from US $49.22 |
||
|
27016C
|
27016C
27016-5325 LOCK-ASSY,SIDE BAGLock-assy,side bag; |
27016-5325 |
from US $55.80 |
||
|
27045
|
27045
27045-5285
SWITCH-ASSY
|
27045-5285 |
— | ||
|
28012
|
28012
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
92009
|
92009
92009-1296 SCREW,5X12Screw,5x12; |
92009-1296 |
from US $2.53 |
||
|
92015
|
92015
92015-1263 NUT,LOCK 5MMNut,lock,flange cap,5mm; |
92015-1263 |
from US $3.80 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWISpring,rear brake switch; |
92144-1141 |
from US $3.33 |
||
|
92151
|
92151
92151-1390 BOLT,SOCKET,6X35Bolt,socket,6x35; |
92151-1390 |
from US $1.27 |
||
|
92151A
|
92151A
92151-1751 BOLTBolt,socket,6x16; |
92151-1751 |
from US $1.27 |
||
|
92153
|
92153
92153-1273 BOLT,TORX,8X22Bolt,torx,8x22; |
92153-1273 |
from US $3.01 |
||
