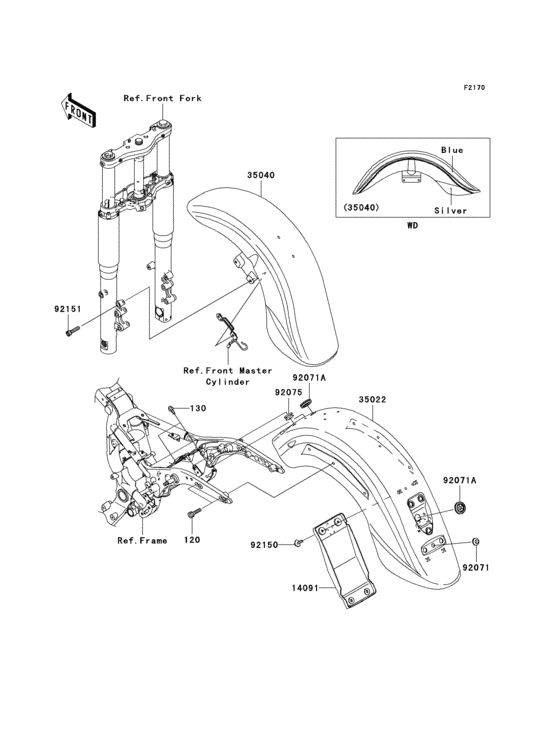

Fenders Diagram Kawasaki VN1600 Vulcan 1600 Nomad
- Year
- 2005
- Colour
- Metallic Ocean Blue / Metallic Phantom Silver (728)
- Model code
- VN1600-D1
- Sales region
- Australia
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Nomad/ VN1600 Classic Tourer
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0830
BOLT-SOCKET,8X30,BLAC
|
120S0830 |
— | ||
| replacement | |||||
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLAC |
120CB0830 |
from US $1.27 |
||
|
130
|
130
130J0816
BOLT-FLANGED
|
130J0816 |
— | ||
| replacement | |||||
|
130
|
130
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
14091
|
14091
14091-0370 COVER,TAIL LAMP |
14091-0370 |
from US $17.91 |
||
|
35022
|
35022
35022-0024-726
FENDER-COMP-REAR,M.O.
|
35022-0024-726 |
— | ||
|
35040
|
35040
35040-5002-728
FENDER-COMP-FRONT,BLU
|
35040-5002-728 |
— | ||
|
92071
|
92071
92071-019 GROMMET HARNESS 10MM |
92071-019 |
from US $2.69 |
||
|
92071A
|
92071A
92071-1265 GROMMET |
92071-1265 |
from US $2.69 |
||
|
92075
|
92075
92075-1067 DAMPER,SIDE COVER |
92075-1067 |
from US $3.73 |
||
|
92150
|
92150
92150-1689 BOLT,FLANGED,6X14 |
92150-1689 |
from US $2.38 |
||
|
92151
|
92151
92151-1535 BOLT,SOCKET,8X35 |
92151-1535 |
from US $1.74 |
||
