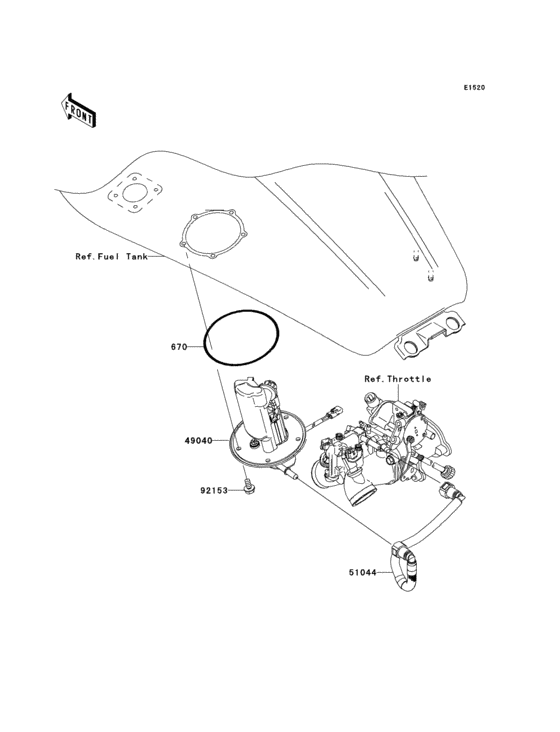

Fuel Pump Diagram Kawasaki VN1600 Vulcan 1600 Nomad
- Year
- 2005
- Colour
- Metallic Ocean Blue / Metallic Phantom Silver (728)
- Model code
- VN1600-D1
- Sales region
- Australia
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Nomad/ VN1600 Classic Tourer
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
670
|
670
670E5075 O RING |
670E5075 |
from US $13.94 |
||
|
49040
|
49040
49040-0008 Pump-fuel |
49040-0008 |
from US $1,064.20 |
||
|
51044
|
51044
51044-0008 TUBE-ASSY |
51044-0008 |
US $185.44 |
||
|
92153
|
92153
92153-1283 BOLT,6X12 |
92153-1283 |
from US $1.11 |
