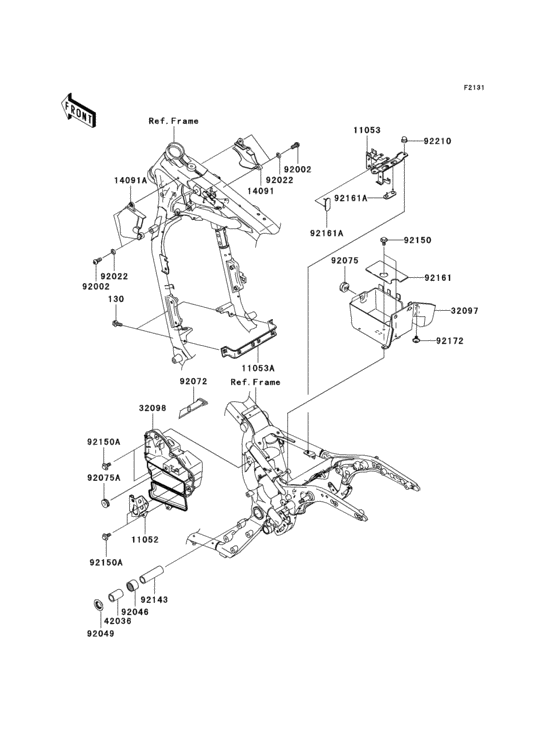

Frame fittings Diagram Kawasaki VN1600 VN1600 Classic Tourer
- Year
- 2005
- Colour
- Metallic Ocean Blue / Metallic Phantom Silver (728)
- Model code
- VN1600-D1H
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Nomad/ VN1600 Classic Tourer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
11052
|
11052
11052-1234 BRACKET,SIDE COVER LO |
11052-1234 |
from US $15.52 |
||
|
11053
|
11053
11053-0289 BRACKET,BATTERY BAND |
11053-0289 |
from US $10.83 |
||
|
11053A
|
11053A
11053-0434 BRACKET,REGULATOR |
11053-0434 |
from US $18.35 |
||
|
14091
|
14091
14091-0054 COVER,HEAD PIPE,RH |
14091-0054 |
from US $9.71 |
||
|
14091A
|
14091A
14091-0092 COVER,HEAD PIPE,LH |
14091-0092 |
from US $9.71 |
||
|
32097
|
32097
32097-1192 CASE-BATTERY |
32097-1192 |
from US $27.83 |
||
|
32098
|
32098
32098-1137 CASE-TOOL |
32098-1137 |
from US $109.96 |
||
|
42036
|
42036
42036-1330 SLEEVE,L=45 |
42036-1330 |
from US $20.91 |
||
|
92002
|
92002
92002-1700 BOLT,6X14 |
92002-1700 |
from US $3.48 |
||
|
92022
|
92022
92022-183 WASHER-PLAIN |
92022-183 |
from US $2.53 |
||
|
92046
|
92046
92046-1202 BEARING-NEEDLE,BM2824 |
92046-1202 |
from US $20.28 |
||
|
92049
|
92049
92049-1181 SEAL-OIL |
92049-1181 |
from US $8.86 |
||
|
92072
|
92072
92072-1331 BAND |
92072-1331 |
from US $16 |
||
|
92075
|
92075
92075-1067 DAMPER,SIDE COVER |
92075-1067 |
from US $3.73 |
||
|
92075A
|
92075A
92075-1629 DAMPER |
92075-1629 |
from US $3.90 |
||
|
92143
|
92143
92143-1878 COLLAR,20.2X27X90 |
92143-1878 |
from US $20.79 |
||
|
92150
|
92150
92150-1133 BOLT,6X14 |
92150-1133 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1198 BOLT |
92150-1198 |
from US $2.53 |
||
|
92161
|
92161
92161-1097 DAMPER,BATTERY |
92161-1097 |
from US $3.64 |
||
|
92161A
|
92161A
92161-1214 DAMPER,BATTERY BAND |
92161-1214 |
from US $2.53 |
||
|
92172
|
92172
92172-0005 SCREW, 6X10 |
92172-0005 |
US $2.99 |
||
|
92210
|
92210
92210-0003 NUT |
92210-0003 |
from US $1 |
||
