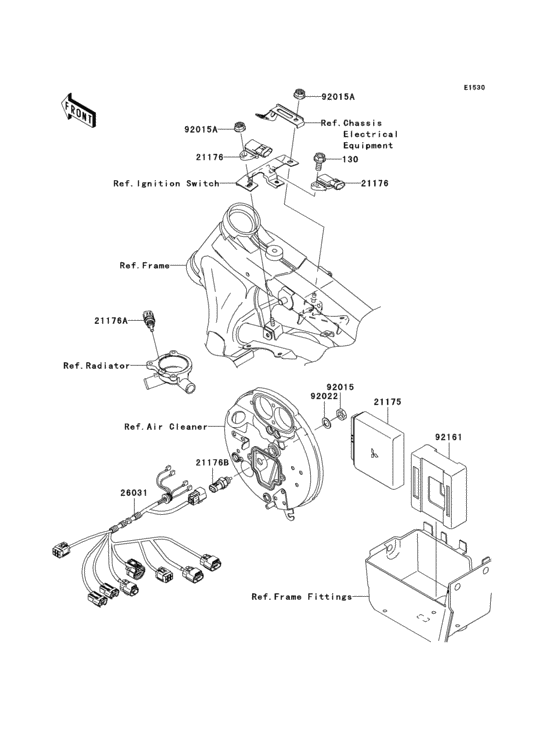

Fuel injection Diagram Kawasaki VN1600 VN1600 Classic
- Year
- 2006
- Colour
- Metallic Ocean Blue / Metallic Phantom Silver (728)
- Model code
- VN1600A6F
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Classic/ VN1600 Classic
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130L0614 BOLT-FLANGED,6X14 |
130L0614 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
21175
|
21175
21175-1100 Control unit-electron |
21175-1100 |
US $1,177.60 |
||
|
21176
|
21176
21176-0058 SENSOR |
21176-0058 |
from US $101.43 |
||
|
21176A
|
21176A
21176-1085 SENSOR,WATER TEMPERAT |
21176-1085 |
US $53.86 |
||
|
21176B
|
21176B
21176-1086 SENSOR,AIR TEMPERATUR |
21176-1086 |
from US $45.33 |
||
|
26031
|
26031
26031-0300 HARNESS |
26031-0300 |
from US $123.91 |
||
|
92015
|
92015
92015-1395 NUT,12MM |
92015-1395 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1603 NUT |
92015-1603 |
from US $2.85 |
||
|
92022
|
92022
92022-269 WASHER,PLAIN |
92022-269 |
from US $1.72 |
||
|
92161
|
92161
92161-1210 DAMPER |
92161-1210 |
from US $20.28 |
||
