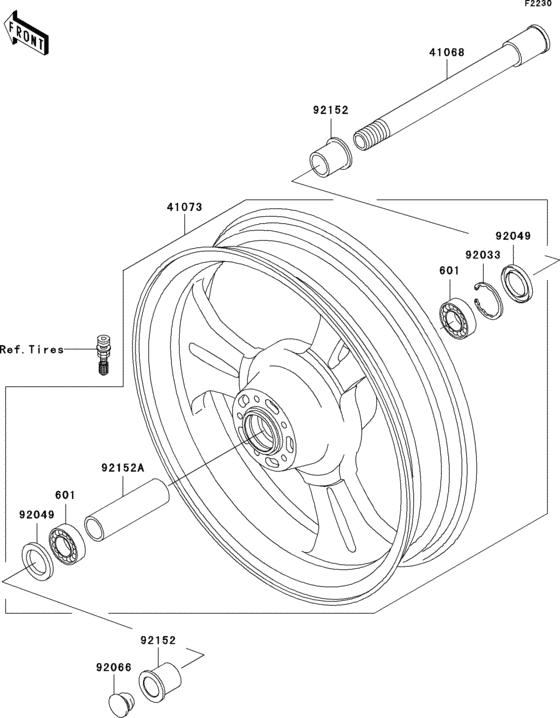

Front hub Diagram Kawasaki VN1600 VN1600 Mean Streak
- Year
- 2006
- Model code
- VN1600B6F
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6005UU BEARING-BALL,#6005UU |
601B6005UU |
from US $22.59 |
||
|
41068
|
41068
41068-1458 AXLE,FR |
41068-1458 |
from US $63.73 |
||
|
41073
|
41073
41073-0041-496 WHEEL-ASSY,FR,P.SILVE |
41073-0041-496 |
from US $1,090.76 |
||
|
92033
|
92033
92033-1042 CIRCLIP,47M/M |
92033-1042 |
from US $3.48 |
||
|
92049
|
92049
92049-0050 SEAL-OIL,BJN-C2 32X47 |
92049-0050 |
from US $8.24 |
||
|
92066
|
92066
92066-1093 PLUG,HANDLE |
92066-1093 |
from US $3.64 |
||
|
92152
|
92152
92152-0178 COLLAR,FR,AXLE,L=34 |
92152-0178 |
from US $16.33 |
||
|
92152A
|
92152A
92152-1308 COLLAR,FR HUB,L=109 |
92152-1308 |
from US $17.74 |
