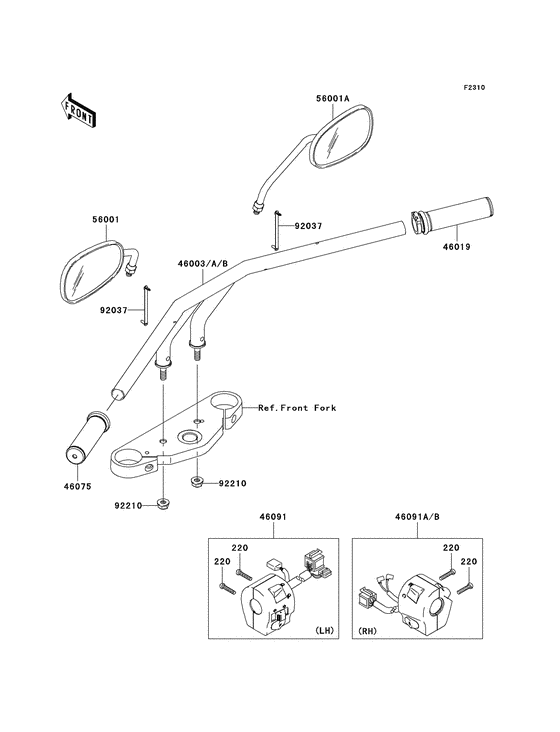

Handlebar Diagram Kawasaki VN1600 Vulcan 1600 Mean Streak
- Year
- 2008
- Model code
- VN1600B8F
- Sales region
- USA
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220R0525 SCREW-PAN-CROS,5X25Screw-pan-cross,5x25; |
220R0525 |
from US $1.36 |
||
|
46003
|
46003
46003-0005
HANDLE
|
46003-0005 |
— | ||
|
46003B
|
46003B
46003-0146 HANDLE |
46003-0146 |
from US $162.20 |
||
|
46019
|
46019
46019-1123 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1123 |
from US $42.64 |
||
|
46075
|
46075
46075-1212 GRIP,LHGrip,lh; |
46075-1212 |
from US $17.84 |
||
|
46091
|
46091
46091-0026 HOUSING-ASSY-CONTROL,Housing-assy-control,lh; |
46091-0026 |
from US $252.20 |
||
|
46091B
|
46091B
46091-0079 HOUSING-ASSY-CONTROL,Housing-assy-control,rh; |
46091-0079 |
from US $160.27 |
||
|
56001
|
56001
56001-0019 MIRROR-ASSY,LHMirror-assy,lh; |
56001-0019 |
from US $56.86 |
||
|
56001A
|
56001A
56001-0020 MIRROR-ASSY,RHMirror-assy,rh; |
56001-0020 |
from US $56.86 |
||
|
92037
|
92037
92037-1163 CLAMPClamp,speed,l=58; |
92037-1163 |
from US $3.50 |
||
|
92210
|
92210
92210-1139 NUTNut,lock,flanged,10mm; |
92210-1139 |
from US $2.24 |
