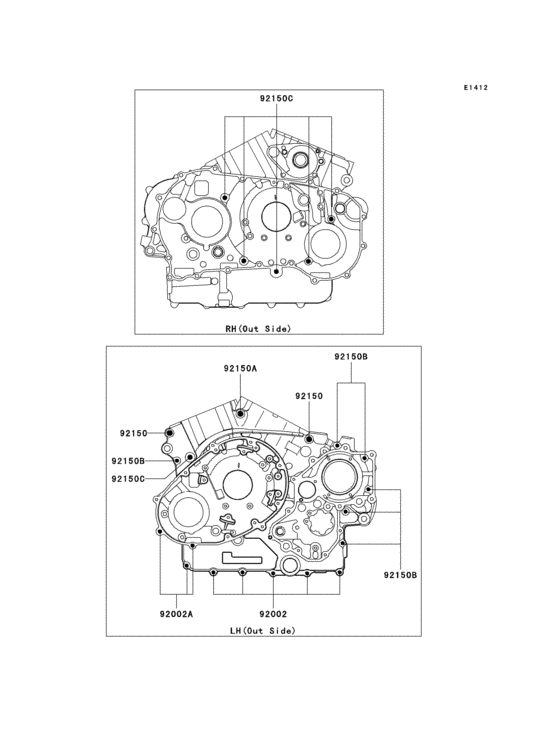

Crankcase bolt pattern Diagram Kawasaki VN1600 Vulcan 1600 Mean Streak
- Year
- 2006
- Colour
- Ebony (H8)
- Model code
- VN1600F6F
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Parts list
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
92002
|
92002
92002-1566 BOLT,6X40 |
92002-1566 |
from US $2.72 |
||
92002A
|
92002A
92002-1568 BOLT,6X80 |
92002-1568 |
from US $3.18 |
||
replacement | |||||
92002A
|
92002A
132BB0680 BOLT,6X80 |
132BB0680 |
from US $3.18 |
||
92150
|
92150
92150-1993 BOLT,10X105 |
92150-1993 |
from US $6.50 |
||
92150A
|
92150A
92150-1994 BOLT,10X115 |
92150-1994 |
from US $6.96 |
||
92150B
|
92150B
92150-1995 BOLT,6X70 |
92150-1995 |
from US $1.67 |
||
92150C
|
92150C
92150-1996 BOLT,8X90 |
92150-1996 |
from US $3.02 |
