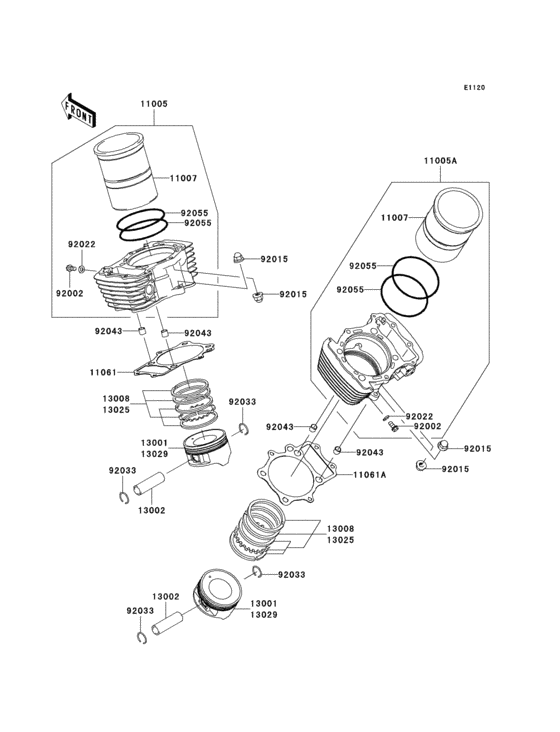

Cylinder/piston(s) Diagram Kawasaki VN1600 Vulcan 1600 Mean Streak
- Year
- 2006
- Colour
- Ebony (H8)
- Model code
- VN1600F6F
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Mean Streak/ VN1600 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
11005
|
11005
11005-0019 CYLINDER-ENGINE,FR |
11005-0019 |
from US $914.04 |
||
11005A
|
11005A
11005-0020 CYLINDER-ENGINE,RR |
11005-0020 |
from US $914.04 |
||
11007
|
11007
11007-1176 LINER-CYLINDER |
11007-1176 |
US $212.15 |
||
11061
|
11061
11061-1083 GASKET,CYLINDER BASE,FR |
11061-1083 |
from US $9.38 |
||
11061A
|
11061A
11061-1084 GASKET,CYLINDER BASE,RR |
11061-1084 |
from US $9.67 |
||
13001
|
13001
13001-0054
PISTON-ENGINE,STD
|
13001-0054 |
— | ||
13002
|
13002
13002-1107 PIN-PISTON |
13002-1107 |
from US $24.78 |
||
13008
|
13008
13008-1218 RING-SET-PISTON,STD |
13008-1218 |
from US $82.22 |
||
13025
|
13025
13025-0004
RING-SET-PISTON L,O/S 0.50
|
13025-0004 |
— | ||
13029
|
13029
13029-0014
PISTON-ENGINE L, O/S 0.50
|
13029-0014 |
— | ||
92002
|
92002
92002-1569
BOLT-FLANGED-SMALL,6X
|
92002-1569 |
— | ||
replacement | |||||
92002
|
92002
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.91 |
||
92015
|
92015
92015-1370 NUT,CAP,8MM |
92015-1370 |
US $3.75 |
||
replacements | |||||
92015
|
92015
92015-1371 NUT,CAP,8MM |
92015-1371 |
from US $2.72 |
||
92015
|
92015
92015-1174 NUT,CAP,8MM,BLACK |
92015-1174 |
from US $3.46 |
||
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.24 |
||
92033
|
92033
92033-1226 RING-SNAP |
92033-1226 |
from US $2.24 |
||
92043
|
92043
92043-1608 PIN |
92043-1608 |
from US $2.58 |
||
92055
|
92055
92055-1371 RING-O,110.5X2.5 |
92055-1371 |
from US $5.88 |
