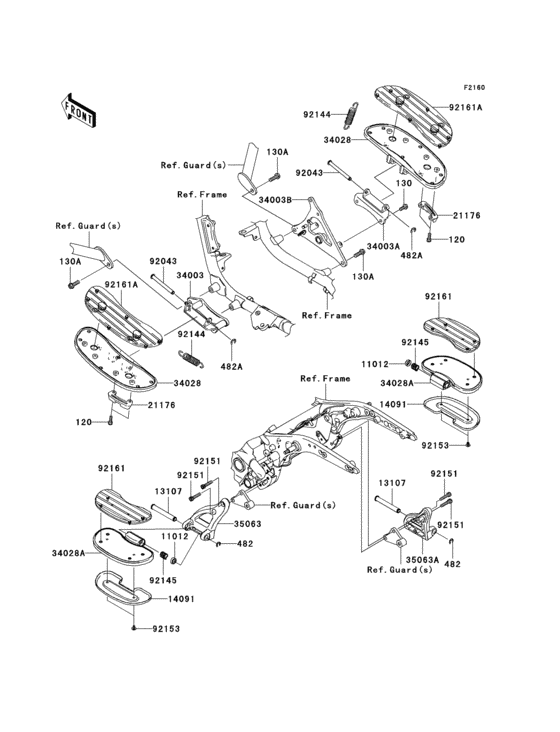

Footrests Diagram Kawasaki VN1600 Vulcan 1600 Nomad
- Year
- 2006
- Colour
- Ebony (H8)
- Model code
- VN1600G6F
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Nomad/ VN1600 Classic Tourer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0616 BOLT-SOCKET |
120S0616 |
from US $0.92 |
||
| replacement | |||||
|
120
|
120
120CB0616 BOLT-SOCKET |
120CB0616 |
from US $1.11 |
||
|
130
|
130
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130
|
130
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
130A
|
130A
130J1030
BOLT-FLANGED,10X30,BL
|
130J1030 |
— | ||
| replacements | |||||
|
130A
|
130A
130BB1030 BOLT-FLANGED,10X30,BL |
130BB1030 |
from US $1.43 |
||
|
130A
|
130A
130CB1030 BOLT-FLANGED,10X30,BL |
130CB1030 |
from US $1.43 |
||
|
482
|
482
482L0200 CIRCLIP-TYPE-E |
482L0200 |
from US $1.64 |
||
| replacement | |||||
|
482
|
482
482EA0200 CIRCLIP-TYPE-E |
482EA0200 |
from US $2.96 |
||
|
482A
|
482A
482L8000
CIRCLIP-TYPE-E
|
482L8000 |
— | ||
| replacement | |||||
|
482A
|
482A
482EA8000 CIRCLIP-TYPE-E |
482EA8000 |
from US $1.05 |
||
|
11012
|
11012
11012-1498 CAP,MUFFLER STAY |
11012-1498 |
US $4.44 |
||
|
13107
|
13107
13107-0087 SHAFT,REAR STEP |
13107-0087 |
from US $11.58 |
||
|
14091
|
14091
14091-0229 COVER,REAR STEP |
14091-0229 |
from US $7.08 |
||
|
21176
|
21176
21176-0021 SENSOR,BANK |
21176-0021 |
from US $15.93 |
||
|
34003
|
34003
34003-0012 HOLDER-STEP,FR,LH |
34003-0012 |
from US $100.58 |
||
|
34003A
|
34003A
34003-0013 HOLDER-STEP,FR,RH |
34003-0013 |
from US $38.45 |
||
|
34003B
|
34003B
34003-0014 HOLDER-STEP,FR,RH |
34003-0014 |
from US $121.12 |
||
|
34028
|
34028
34028-0011 STEP |
34028-0011 |
from US $88.26 |
||
|
34028A
|
34028A
34028-0028 STEP,RR |
34028-0028 |
US $60.16 |
||
| replacement | |||||
|
34028A
|
34028A
34028-0053 STEP,RR |
34028-0053 |
from US $60.16 |
||
|
35063
|
35063
35063-0149 STAY,REAR STEP,LH |
35063-0149 |
from US $86.96 |
||
|
35063A
|
35063A
35063-0150 STAY,REAR STEP,RH |
35063-0150 |
from US $86.96 |
||
|
92043
|
92043
92043-1707 PIN,10X98.5 |
92043-1707 |
from US $7.62 |
||
|
92144
|
92144
92144-1266 SPRING,BRAKE PEDAL RE |
92144-1266 |
from US $5.70 |
||
|
92145
|
92145
92145-1130 SPRING,REAR STEP |
92145-1130 |
from US $3.64 |
||
|
92151
|
92151
92151-1535 BOLT,SOCKET,8X35 |
92151-1535 |
from US $1.74 |
||
|
92153
|
92153
92153-1096 BOLT,SOCKET,6X10 |
92153-1096 |
from US $1.61 |
||
|
92161
|
92161
92161-0145 DAMPER,REAR STEP |
92161-0145 |
from US $10.73 |
||
|
92161A
|
92161A
92161-1325 DAMPER,FRONT STEP,LH |
92161-1325 |
from US $41.29 |
||
