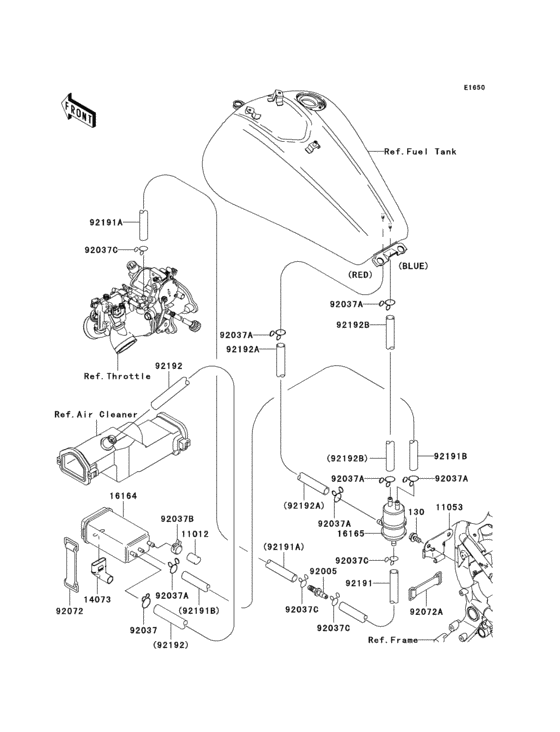

Fuel evaporative system(ca) Diagram Kawasaki VN1600 Vulcan 1600 Nomad
- Year
- 2006
- Colour
- Ebony (H8)
- Model code
- VN1600G6F
- Sales region
- Europe (General)
- Engine Capacity
- 1600
- Model
- Vulcan 1600 Nomad/ VN1600 Classic Tourer
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0612
BOLT-FLANGED,6X12
|
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
11012
|
11012
11012-1388 CAP,CANISTER |
11012-1388 |
from US $6.18 |
||
|
11053
|
11053
11053-0006 BRACKET,EVAPO |
11053-0006 |
from US $4.67 |
||
|
14073
|
14073
14073-1219 DUCT,CANISTER |
14073-1219 |
from US $12.60 |
||
|
16164
|
16164
16164-1070 CANISTER |
16164-1070 |
from US $121.68 |
||
|
16165
|
16165
16165-1001 SEPARATOR |
16165-1001 |
from US $62.23 |
||
|
92005
|
92005
92005-1206 FITTING |
92005-1206 |
from US $5.86 |
||
|
92037
|
92037
92037-1104 CLAMP-HOSE |
92037-1104 |
from US $1.94 |
||
|
92037A
|
92037A
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92037B
|
92037B
92037-1512 CLAMP,CANISTER |
92037-1512 |
from US $3.96 |
||
|
92037C
|
92037C
92037-1712 CLAMP |
92037-1712 |
from US $3.90 |
||
|
92072
|
92072
92072-045 BAND,L=90 |
92072-045 |
from US $9.03 |
||
|
92072A
|
92072A
92072-1419 BAND,L=50 |
92072-1419 |
from US $9.03 |
||
|
92191
|
92191
92191-1375 TUBE,THROTTLE-SEPARAT |
92191-1375 |
from US $13.06 |
||
|
92191A
|
92191A
92191-1414 TUBE,4X9X180,WHITE |
92191-1414 |
from US $2.95 |
||
|
92191B
|
92191B
92191-1677 TUBE,SEPARATOR-CANIST |
92191-1677 |
from US $9.65 |
||
|
92192
|
92192
92192-0027 TUBE,CANISTER-FILTER, |
92192-0027 |
from US $19.90 |
||
|
92192A
|
92192A
92192-0214 TUBE,TANK-SEPARATOR,R |
92192-0214 |
from US $7 |
||
|
92192B
|
92192B
92192-0215 TUBE,TANK-SEPARATOR,B |
92192-0215 |
from US $8.24 |
||
