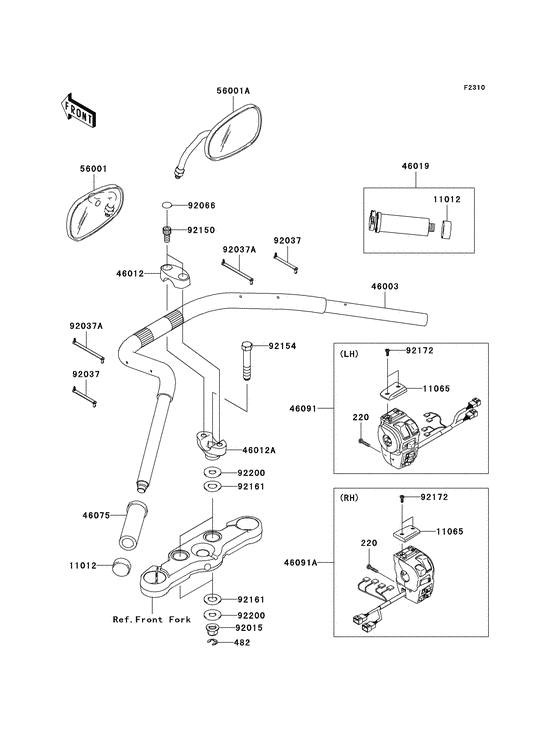

Handlebar Diagram Kawasaki VN1700 Vulcan 1700 Voyager
- Year
- 2009
- Model code
- VN1700A9F
- Sales region
- USA
- Engine Capacity
- 1700
- Model
- Vulcan 1700 Voyager/ VN1700 Voyager
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AB0525 SCREW-PAN-CROSScrew-pan-cros,5x25; |
220AB0525 |
from US $0.95 |
||
|
482
|
482
482EA0100 CIRCLIP-TYPE-E,10MMCirclip-type-e,10mm; |
482EA0100 |
from US $0.72 |
||
|
11012
|
11012
11012-1975 CAP,GRIP ENDCap,grip end; |
11012-1975 |
from US $17.52 |
||
|
11065
|
11065
11065-0270 CAP,HOUSING SWITCHCap,housing switch; |
11065-0270 |
from US $30.05 |
||
|
46003
|
46003
46003-0174 HANDLE |
46003-0174 |
US $380.30 |
||
| replacement | |||||
|
46003
|
46003
46003-0185 HANDLE |
46003-0185 |
from US $300.47 |
||
|
46012
|
46012
46012-0072 HOLDER-HANDLE,UPPHolder-handle,upp; |
46012-0072 |
from US $84.21 |
||
|
46012A
|
46012A
46012-0077
HOLDER-HANDLE,LWR
Holder-handle,lwr; |
46012-0077 |
— | ||
|
46019
|
46019
46019-1109 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1109 |
from US $53.48 |
||
|
46075
|
46075
46075-1074
GRIP,LH
Grip,lh; |
46075-1074 |
— | ||
| replacement | |||||
|
46075
|
46075
46075-0652 GRIP, LHGrip,lh; |
46075-0652 |
from US $22.40 |
||
|
46091
|
46091
46091-0141 HOUSING-ASSY-CONTROL,Housing-assy-control,lh; |
46091-0141 |
from US $380.71 |
||
|
46091A
|
46091A
46091-0142 HOUSING-ASSY-CONTROL,Housing-assy-control,rh; |
46091-0142 |
US $413.28 |
||
| replacement | |||||
|
46091A
|
46091A
46091-0199 HOUSING-ASSY-CONTROL,Housing-assy-control,rh; |
46091-0199 |
from US $326.59 |
||
|
56001
|
56001
56001-0032 MIRROR-ASSY,LHMirror-assy,lh; |
56001-0032 |
from US $65.02 |
||
|
56001A
|
56001A
56001-0033 MIRROR-ASSY,RHMirror-assy,rh; |
56001-0033 |
from US $65.02 |
||
|
92015
|
92015
92015-1401 NUT,FLANGED,14MMNut,flanged,14mm; |
92015-1401 |
from US $6.92 |
||
|
92037
|
92037
92037-1163 ClampL=58 Clamp,speed,l=58; |
92037-1163 |
from US $3.96 |
||
|
92037A
|
92037A
92037-1903 ClampL=80.5 Clamp,speed,l=80.5; |
92037-1903 |
from US $5.23 |
||
|
92066
|
92066
92066-1285 PLUG |
92066-1285 |
from US $5.23 |
||
|
92150
|
92150
92150-1942 BOLT,SOCKET,10X23Bolt,socket,10x23; |
92150-1942 |
from US $3.96 |
||
|
92154
|
92154
92154-0278 BOLT,UPSET,14X79Bolt,upset,14x79; |
92154-0278 |
from US $2.65 |
||
|
92161
|
92161
92161-0836 DAMPER,18X35X2.2Damper,18x35x2.2; |
92161-0836 |
from US $1.77 |
||
|
92172
|
92172
92172-0420 SCREW,4X12Screw,4x12; |
92172-0420 |
from US $0.46 |
||
|
92200
|
92200
92200-0534 WASHER,14.2X35X2.3Washer,14.2x35x2.3; |
92200-0534 |
from US $2.13 |
||
