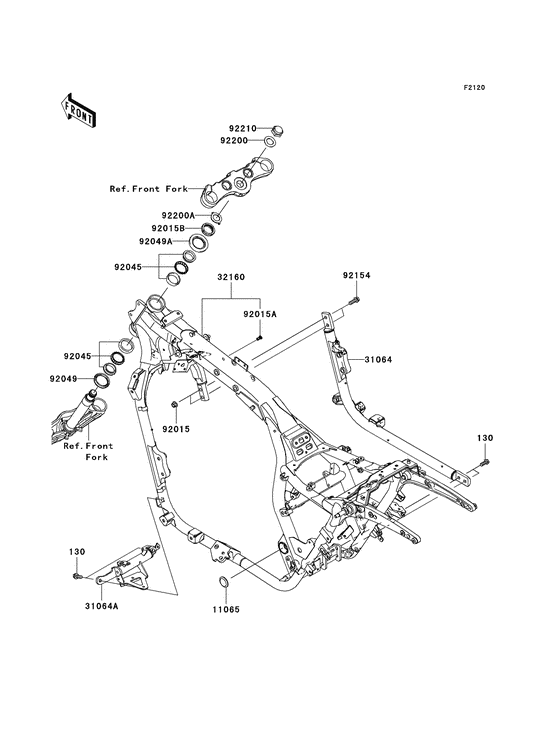

Frame Diagram Kawasaki VN1700 Vulcan 1700 Voyager
- Year
- 2009
- Model code
- VN1700A9FA
- Sales region
- USA
- Engine Capacity
- 1700
- Model
- Vulcan 1700 Voyager/ VN1700 Voyager
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB1025 BOLT-FLANGED,10X25Bolt-flanged,10x25; |
130BB1025 |
from US $1.43 |
||
|
11065
|
11065
11065-0320 CAP |
11065-0320 |
from US $5.80 |
||
|
31064
|
31064
31064-0129-18R PIPE-COMP,DOWNTUBE,RHPipe-comp,downtube,rh,black; |
31064-0129-18R |
US $548.08 |
||
| replacement | |||||
|
31064
|
31064
31064-0209-18R PIPE-COMP,DOWNTUBE,RHPipe-comp,downtube,rh,black; |
31064-0209-18R |
from US $432.96 |
||
|
31064A
|
31064A
31064-0130-18R PIPE-COMP,FRONT CROSSPipe-comp,front cross,black; |
31064-0130-18R |
from US $107.87 |
||
|
32160
|
32160
32160-0321-18R FRAME-COMP,F.S.BLACKFrame-comp,f.s.black; |
32160-0321-18R |
from US $3,247.26 |
||
| replacement | |||||
|
32160
|
32160
32160-0913-18R FRAME-COMP,F.S.BLACKFrame-comp,f.s.black; |
32160-0913-18R |
from US $3,247.26 |
||
|
92015
|
92015
92015-1727 NUTNut,flanged,10mm; |
92015-1727 |
from US $2.69 |
||
|
92015A
|
92015A
92015-1792 NUT,POP,6MM,L=16.5Nut,pop,6mm,l=16.5; |
92015-1792 |
from US $2.85 |
||
|
92015B
|
92015B
92015-1848 NUT,STEERING STEM,35MNut,steering stem,35mm; |
92015-1848 |
from US $25.73 |
||
|
92045
|
92045
92045-1384 BEARING-BALL,SF07A17PBearing-ball,sf07a17px1v1; |
92045-1384 |
from US $35.16 |
||
|
92049
|
92049
92049-1383 SEAL-OIL,XMHE 43 55 4Seal-oil,xmhe 43 55 4j; |
92049-1383 |
from US $12.51 |
||
|
92049A
|
92049A
92049-1483 SEAL-OIL,MX043N2Seal-oil,mx043n2; |
92049-1483 |
from US $15.05 |
||
|
92154
|
92154
92154-0156 BOLT,FLANGED,10X30Bolt,flanged,10x30; |
92154-0156 |
from US $1.24 |
||
|
92200
|
92200
92200-0105 WASHER,25.5X43X2.3Washer,25.5x42x2.3; |
92200-0105 |
from US $2.53 |
||
|
92200A
|
92200A
92200-1083 WASHER,CLAW,25.5X40X2Washer,claw,25.5x40x2.3; |
92200-1083 |
from US $3.80 |
||
|
92210
|
92210
92210-1166 NUTNut,cap,25mm; |
92210-1166 |
from US $14.57 |
||
