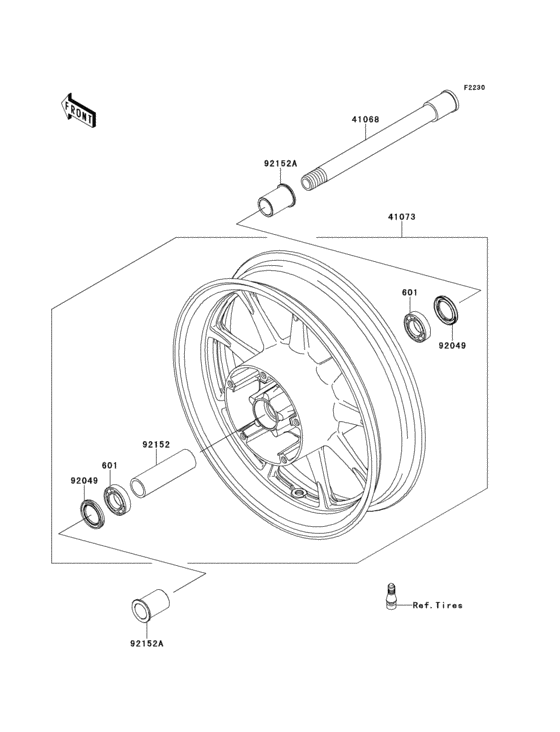

Front wheel Diagram Kawasaki VN1700 Vulcan 1700 Voyager
- Year
- 2014
- Colour
- New Warm Gray/Candy Fire Red (46E)
- Model code
- VN1700AEF
- Sales region
- USA
- Engine Capacity
- 1700
- Model
- Vulcan 1700 Voyager/ VN1700 Voyager
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6005UU BEARING-BALL,#6005UU |
601B6005UU |
from US $22.59 |
||
|
41068
|
41068
41068-1465 AXLE,FR |
41068-1465 |
US $78.53 |
||
| replacement | |||||
|
41068
|
41068
41068-0600 AXLE,FR |
41068-0600 |
from US $60.65 |
||
|
41073
|
41073
41073-0135-18 WHEEL-ASSY,FR,BLACK |
41073-0135-18 |
from US $1,235.45 |
||
|
92049
|
92049
92049-0050 SEAL-OIL,BJN-C2 32X47 |
92049-0050 |
from US $8.24 |
||
|
92152
|
92152
92152-1308 COLLAR,FR HUB,L=109 |
92152-1308 |
from US $17.74 |
||
|
92152A
|
92152A
92152-1492 COLLAR,FR HUB,L=46.5 |
92152-1492 |
from US $17.42 |
||
