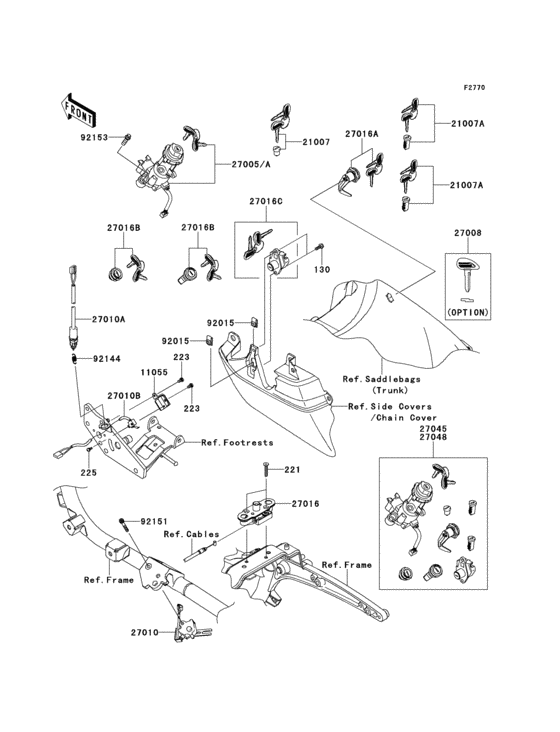

Ignition switch/locks/reflectors Diagram Kawasaki VN1700 Vulcan 1700 Voyager
- Year
- 2014
- Colour
- New Warm Gray/Candy Fire Red (46E)
- Model code
- VN1700AEF
- Sales region
- USA
- Engine Capacity
- 1700
- Model
- Vulcan 1700 Voyager/ VN1700 Voyager
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0516 BOLT-FLANGED |
130BA0516 |
from US $1.07 |
||
|
221
|
221
221AA0630 SCREW-CSK-CROSS,6X30 |
221AA0630 |
from US $0.78 |
||
|
223
|
223
223AB0510 SCREW-PAN-WS-CROS |
223AB0510 |
from US $0.95 |
||
|
225
|
225
225AB0412 SCREW-PAN-WSP-CROS |
225AB0412 |
from US $0.95 |
||
|
11055
|
11055
11055-0609 BRACKET,CRUISE CONTRO |
11055-0609 |
from US $7.46 |
||
|
21007
|
21007
21007-5053
SWITCH-ASSY,TANK CAP
|
21007-5053 |
— | ||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
21007A
|
21007A
21007-5065 ROTOR,PANNIER LOCK |
21007-5065 |
from US $55.80 |
||
|
27005A
|
27005A
27005-0587 SWITCH-ASSY-IGNITION |
27005-0587 |
US $251.32 |
||
| replacement | |||||
|
27005A
|
27005A
27005-0623 SWITCH-ASSY-IGNITION |
27005-0623 |
from US $257.54 |
||
|
27008
|
27008
27008-1211 KEY-LOCK,BLANK |
27008-1211 |
from US $21.23 |
||
|
27010
|
27010
27010-0088 SWITCH,SIDE STAND |
27010-0088 |
from US $51.32 |
||
|
27010A
|
27010A
27010-0089 SWITCH,REAR BRAKE |
27010-0089 |
from US $22.29 |
||
|
27010B
|
27010B
27010-0090 SWITCH,CRUISE CONTROL |
27010-0090 |
from US $37.89 |
||
|
27016
|
27016
27016-1098 LOCK-ASSY,SEAT STRIKE |
27016-1098 |
from US $66.12 |
||
|
27016A
|
27016A
27016-5357 LOCK-ASSY,CENTER TRUN |
27016-5357 |
from US $55.80 |
||
|
27016B
|
27016B
27016-5358 LOCK-ASSY,LID |
27016-5358 |
from US $55.80 |
||
|
27016C
|
27016C
27016-5359 LOCK-ASSY,SEAT |
27016-5359 |
from US $55.80 |
||
|
27048
|
27048
27048-5036 SWITCH-ASSY |
27048-5036 |
US $537.50 |
||
| replacement | |||||
|
27048
|
27048
27048-5106 SWITCH-ASSY |
27048-5106 |
from US $642.10 |
||
|
92015
|
92015
92015-1710 NUT |
92015-1710 |
from US $3.48 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWI |
92144-1141 |
from US $3.33 |
||
|
92151
|
92151
92151-1390 BOLT,SOCKET,6X35 |
92151-1390 |
from US $1.27 |
||
|
92153
|
92153
92153-1273 BOLT,TORX,8X22 |
92153-1273 |
from US $3.01 |
||
