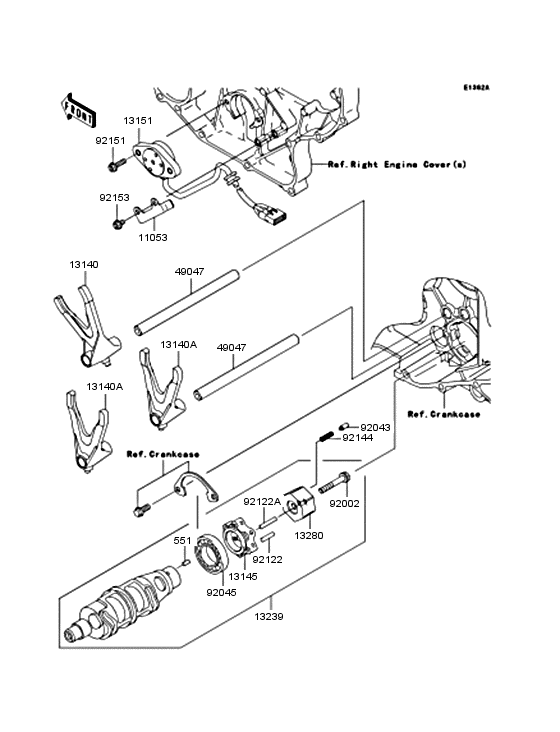

Gear change drum/shift fork (s; A2) Diagram Kawasaki VN2000 VN2000
- Year
- 2004
- Colour
- Metallic Dark Purple Prism (664)
- Model code
- VN2000-A1
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 000001 - 006000
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
551
|
551
551A0408 PIN,DOWEL,4X8PIN-DOWEL，4X8; A1 |
551A0408 |
from US $1.17 |
||
|
11053
|
11053
11053-0506 BRACKET,SENSOR WIREBRACKET，SENSOR WIRE |
11053-0506 |
from US $3.67 |
||
|
13140
|
13140
13140-0001
FORK-SHIFT,INPUT
FORK-SHIFT，INPUT |
13140-0001 |
— | ||
|
13140A
|
13140A
13140-0002
FORK-SHIFT,OUTPUT
FORK-SHIFT，OUTPUT |
13140-0002 |
— | ||
|
13145
|
13145
13145-0016 CAM-CHANGE DRUMCAM-CHANGE DRUM |
13145-0016 |
from US $53.91 |
||
|
13151
|
13151
13151-0013
SWITCH-COMP,GEAR POSITION
SWITCH-COMP，GEAR POSITION |
13151-0013 |
— | ||
| replacement | |||||
|
13151
|
13151
13151-0036
SWITCH-COMP,GEAR POSITION
SWITCH-COMP，GEAR POSITION |
13151-0036 |
— | ||
|
13239
|
13239
13239-0013 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE |
13239-0013 |
from US $266.13 |
||
|
13280
|
13280
13280-0106 HOLDERHOLDER |
13280-0106 |
from US $23.50 |
||
|
49047
|
49047
49047-0002 ROD-SHIFTROD-SHIFT |
49047-0002 |
from US $20.06 |
||
|
92002
|
92002
92002-1431 BOLT,6X38BOLT，6X38 |
92002-1431 |
from US $3.17 |
||
|
92043
|
92043
92043-0085 PINPIN |
92043-0085 |
from US $4.12 |
||
|
92045
|
92045
92045-1045 BEARING-BALL,16005(NTBEARING-BALL，16005(NTN) |
92045-1045 |
from US $19.80 |
||
|
92122
|
92122
92122-0001 ROLLER,4.5X17.8ROLLER，4.5X17.8 |
92122-0001 |
from US $3.17 |
||
|
92122A
|
92122A
92122-0010 ROLLER, 4.5X23.8ROLLER，4.5X23.8 |
92122-0010 |
from US $3.17 |
||
|
92144
|
92144
92144-1245 SPRINGSPRING |
92144-1245 |
from US $3.54 |
||
|
92151
|
92151
92151-1776 BOLTBOLT |
92151-1776 |
from US $1.27 |
||
|
92153
|
92153
92153-0687 BOLT,5X10BOLT，5X10 |
92153-0687 |
from US $1.11 |
||
