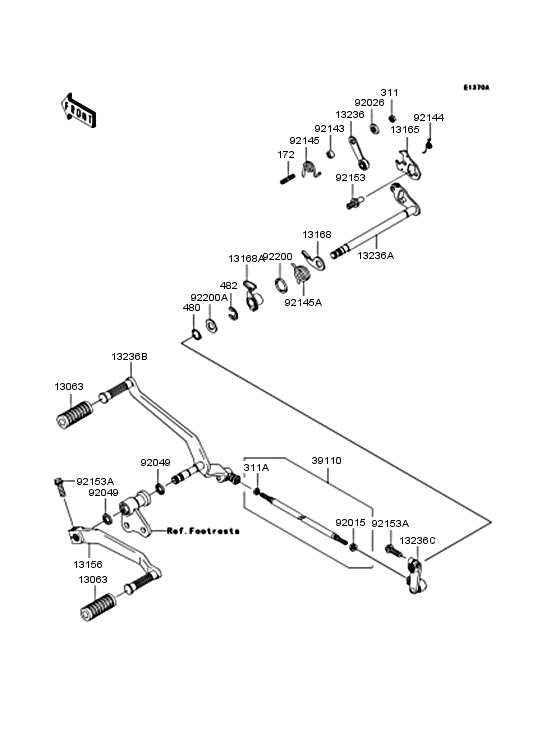

Gear change mechanism (A2) Diagram Kawasaki VN2000 VN2000
- Year
- 2004
- Colour
- Metallic Dark Purple Prism (664)
- Model code
- VN2000-A1
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 000001 - 006000
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
172
|
172
172H0618
BOLT-STUD
BOLT-STUD，6X18 |
172H0618 |
— | ||
| replacement | |||||
|
172
|
172
172BA0618 BOLT-STUDBOLT-STUD，6X18 |
172BA0618 |
from US $1.11 |
||
|
311
|
311
311G0600 NUT-HEXNUT-HEX，6MM |
311G0600 |
US $0.95 |
||
| replacement | |||||
|
311
|
311
311BA0600 NUT-HEXNUT-HEX，6MM |
311BA0600 |
from US $0.95 |
||
|
311A
|
311A
311L0600
NUT-HEX,6MM
NUT-HEX |
311L0600 |
— | ||
| replacement | |||||
|
311A
|
311A
311BB0600 NUT-HEX,6MMNUT-HEX |
311BB0600 |
from US $0.72 |
||
|
480
|
480
480J1200 CIRCLIP 12MMCIRCLIP-TYPE-C，12MM |
480J1200 |
from US $0.82 |
||
|
482
|
482
482J0200 CIRCLIP-TYPE-E,12MMCIRCLIP-TYPE-E，12MM |
482J0200 |
from US $1.11 |
||
|
13063
|
13063
13063-002 RUBBER, KICK PEDALDAMPER，PEDAL |
13063-002 |
from US $3.48 |
||
|
13156
|
13156
13156-0007 LEVER-CHANGELEVER-CHANGE |
13156-0007 |
from US $92.41 |
||
|
13165
|
13165
13165-0001 PAWLPAWL |
13165-0001 |
from US $12.95 |
||
|
13168
|
13168
13168-0009 LEVER,RHLEVER，RH |
13168-0009 |
from US $2.98 |
||
|
13168A
|
13168A
13168-0010 LEVER,LHLEVER，LH |
13168-0010 |
from US $9.19 |
||
|
13236
|
13236
13236-0059 LEVER-COMP,POSITIONLEVER-COMP，POSITION |
13236-0059 |
from US $12.57 |
||
|
13236A
|
13236A
13236-0060 LEVER-COMPLEVER-COMP |
13236-0060 |
from US $45.72 |
||
|
13236B
|
13236B
13236-0071 LEVER-COMPLEVER-COMP |
13236-0071 |
from US $90.44 |
||
|
13236C
|
13236C
13236-0072 LEVER-COMPLEVER-COMP |
13236-0072 |
from US $41.55 |
||
|
39110
|
39110
39110-0018
ROD-ASSY-TIE
ROD-ASSY-TIE |
39110-0018 |
— | ||
|
92015
|
92015
92015-1572 NUT,LEFT HANDED,6MMNUT，LEFT HANDED，6MM |
92015-1572 |
from US $2.85 |
||
|
92026
|
92026
92026-1217 SPACERSPACER |
92026-1217 |
from US $3.33 |
||
|
92049
|
92049
92049-1398 SEAL-OIL,VB13193SEAL-OIL，VB13193 |
92049-1398 |
from US $3.64 |
||
|
92143
|
92143
92143-1595 COLLARCOLLAR |
92143-1595 |
from US $6.34 |
||
|
92144
|
92144
92144-1029 SPRINGSPRING |
92144-1029 |
from US $5.23 |
||
|
92145
|
92145
92145-0197 SPRINGSPRING |
92145-0197 |
from US $4.75 |
||
|
92145A
|
92145A
92145-0205 SPRINGSPRING |
92145-0205 |
from US $4.75 |
||
|
92153
|
92153
92153-0421
BOLT,RETURN SPRING
BOLT，RETURN SPRING |
92153-0421 |
— | ||
| replacement | |||||
|
92153
|
92153
92154-1838 BOLT,RETURN SPRINGBOLT，RETURN SPRING |
92154-1838 |
from US $5.39 |
||
|
92153A
|
92153A
92153-1268 BOLT,8X25BOLT，8X25 |
92153-1268 |
from US $1.43 |
||
|
92200A
|
92200A
92200-0045 WASHER,13.4X25X1.0WASHER，13.4X25X1.0 |
92200-0045 |
from US $1.90 |
||
|
92200
|
92200
92200-0018 WASHER,20.5X27X1.6WASHER，20.5X27X1.6 |
92200-0018 |
from US $1.43 |
||
