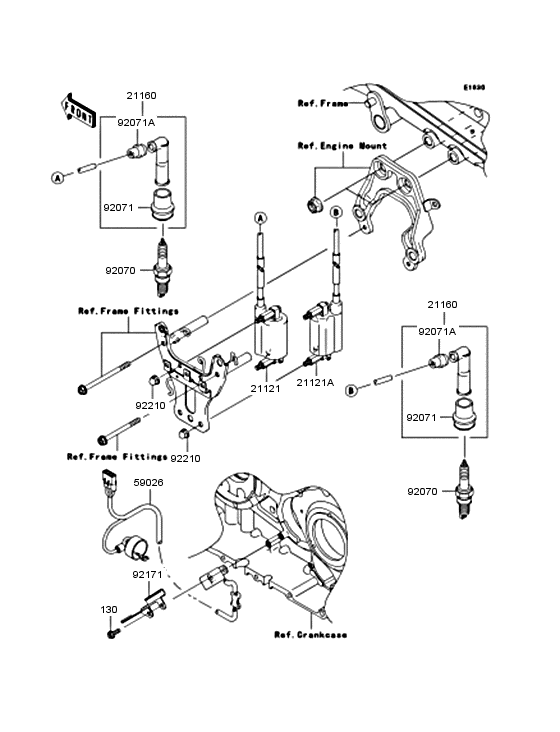

Ignition System Diagram Kawasaki VN2000 VN2000
- Year
- 2004
- Colour
- Metallic Dark Purple Prism (664)
- Model code
- VN2000-A1
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 000001 - 006000
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0514 BOLT-FLANGED,5X14BOLT-FLANGED，5X14 |
130G0514 |
US $10 |
||
| replacements | |||||
|
130
|
130
130CA0514 BOLT-FLANGEDBOLT-FLANGED，5X14 |
130CA0514 |
from US $0.95 |
||
|
130
|
130
130BA0514 BOLT-FLANGED,5X14BOLT-FLANGED，5X14 |
130BA0514 |
from US $0.95 |
||
|
21121
|
21121
21121-0013 COIL-IGNITION,FR ENGICOIL-IGNITION，FR ENGINE |
21121-0013 |
from US $178.85 |
||
|
21121A
|
21121A
21121-0014 COIL-IGNITION,RR ENGICOIL-IGNITION，RR ENGINE |
21121-0014 |
from US $178.85 |
||
|
21160
|
21160
21160-0005
CAP-ASSY-PLUG
CAP-ASSY-PLUG |
21160-0005 |
— | ||
|
59026
|
59026
59026-0002 COIL-PULSINGCOIL-PULSING |
59026-0002 |
from US $109.47 |
||
|
92070
|
92070
92070-0007 SPARK PLUG IZFR6F-11PLUG-SPARK，IZFR6F11(NGK) |
92070-0007 |
from US $19.28 |
||
|
92071
|
92071
92071-0006 GROMMET,PLUG CAPGROMMET，PLUG CAP |
92071-0006 |
from US $4.12 |
||
|
92071A
|
92071A
92071-0010 GROMMET,HIGH TENSIONGROMMET，HIGH TENSION |
92071-0010 |
from US $3.64 |
||
|
92171
|
92171
92171-0035 CLAMP,COIL WIRECLAMP，COIL WIRE |
92171-0035 |
from US $4.75 |
||
|
92210
|
92210
92210-0003 NUTNUT，CAP，6MM |
92210-0003 |
from US $1 |
||
