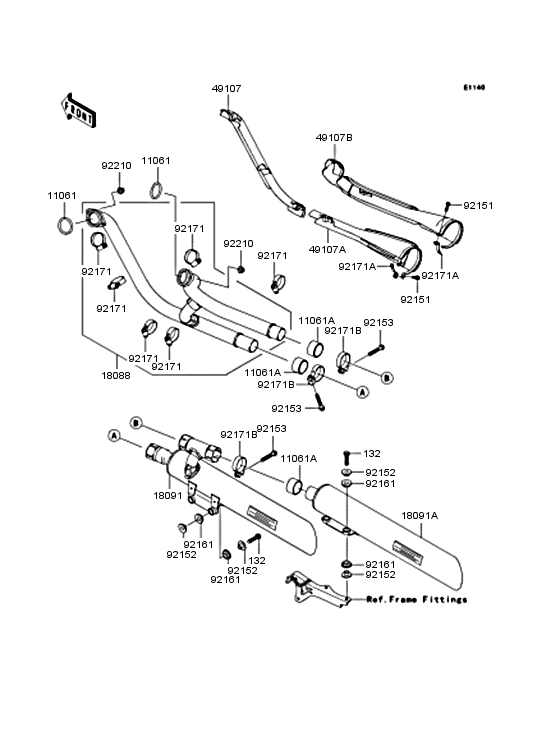

Muffler (s) Diagram Kawasaki VN2000 VN2000
- Year
- 2004
- Colour
- Metallic Dark Purple Prism (664)
- Model code
- VN2000-A1
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 000001 - 006000
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132L0835 BOLT-FLANGED-SMALL,8XBOLT-FLANGED-SMALL，8X35; s |
132L0835 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BB0835 BOLT-FLANGED-SMALL,8XBOLT-FLANGED-SMALL，8X35; s |
132BB0835 |
from US $1.40 |
||
|
11061
|
11061
11061-0013 GASKET,EXHAUST PIPEGASKET，EXHAUST PIPE |
11061-0013 |
from US $9.98 |
||
|
11061A
|
11061A
11061-0023 GASKET,MUFFLER CONNECGASKET，MUFFLER CONNECTING |
11061-0023 |
from US $30.70 |
||
| replacement | |||||
|
11061A
|
11061A
11061-0240 GASKET,MUFFLER CONNECGASKET，MUFFLER CONNECTING |
11061-0240 |
from US $25.47 |
||
|
18088
|
18088
18088-0133 PIPE-EXHAUSTPIPE-EXHAUST |
18088-0133 |
from US $837.08 |
||
| replacement | |||||
|
18088
|
18088
18088-0145 PIPE-EXHAUSTPIPE-EXHAUST |
18088-0145 |
from US $752.10 |
||
|
18091
|
18091
18091-0143
ボデイコンプ(マフラ)，lwr
BODY-COMP-MUFFLER，LWR |
18091-0143 |
— | ||
|
18091A
|
18091A
18091-0144 ボデイコンプ(マフラ)，uppBODY-COMP-MUFFLER，UPP |
18091-0144 |
US $1,139.64 |
||
|
49107
|
49107
49107-0005 COVER-EXHAUST PIPE,FRCOVER-EXHAUST PIPE，FR，F |
49107-0005 |
US $195.20 |
||
|
49107A
|
49107A
49107-0033 COVER-EXHAUST PIPE,FRCOVER-EXHAUST PIPE，FR，R |
49107-0033 |
US $382.36 |
||
|
49107B
|
49107B
49107-0048 COVER-EXHAUST PIPE,RRCOVER-EXHAUST PIPE，RR |
49107-0048 |
from US $382.36 |
||
|
92151
|
92151
92151-1252 BOLT-FLANGED-SMALL,6XBOLT，FLANGED-SMALL，M6X20 |
92151-1252 |
from US $1.30 |
||
| replacement | |||||
|
92151
|
92151
132BC0620 BOLT-FLANGED-SMALL,6XBOLT，FLANGED-SMALL，M6X20 |
132BC0620 |
from US $0.63 |
||
|
92152
|
92152
92152-0082 COLLAR,8.8X12X10.6COLLAR，8.8X12X10.6 |
92152-0082 |
from US $6.81 |
||
|
92153
|
92153
92153-0702 BOLT,8X45BOLT，8X45 |
92153-0702 |
from US $1.43 |
||
|
92161
|
92161
92161-0135 DAMPERDAMPER |
92161-0135 |
from US $1.58 |
||
|
92171A
|
92171A
92171-0294 CLAMPCLAMP |
92171-0294 |
from US $9.03 |
||
|
92171B
|
92171B
92171-0358 CLAMPCLAMP |
92171-0358 |
from US $15.68 |
||
|
92171
|
92171
92171-0072 CLAMPCLAMP |
92171-0072 |
from US $5.86 |
||
|
92210
|
92210
92210-1132 NUTNUT，CAP，8MM |
92210-1132 |
from US $2.53 |
||
