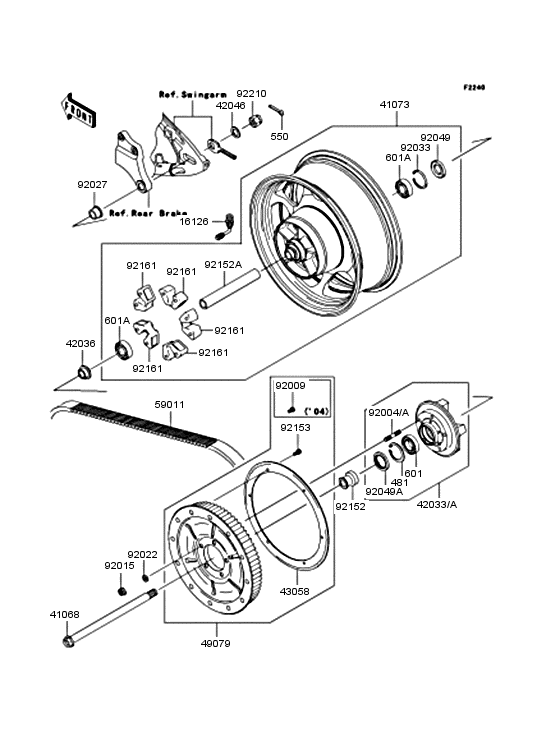

Rear wheel/chain Diagram Kawasaki VN2000 VN2000
- Year
- 2004
- Colour
- Metallic Dark Purple Prism (664)
- Model code
- VN2000-A1
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 000001 - 006000
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
481
|
481
481J5500 RING-SNAPCIRCLIP |
481J5500 |
US $6.34 |
||
| replacement | |||||
|
481
|
481
92033-1274 RING-SNAPCIRCLIP |
92033-1274 |
from US $5.60 |
||
|
550
|
550
550D4035 PIN-COTTER,4.0X35PIN-COTTER，4.0X35 |
550D4035 |
US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA4035 PIN-COTTER,4.0X35PIN-COTTER，4.0X35 |
550AA4035 |
from US $0.91 |
||
|
601
|
601
601B6006UU BEARING-BALLBEARING-BALL |
601B6006UU |
from US $26.63 |
||
|
601A
|
601A
601B6304UU BEARING-BALL,#6304UUCBEARING-BALL，#6304UUC3 |
601B6304UU |
from US $28.25 |
||
|
16126
|
16126
16126-1365 VALVEVALVE |
16126-1365 |
from US $19.86 |
||
|
41068
|
41068
41068-0007 AXLE,RRAXLE，RR |
41068-0007 |
from US $96.41 |
||
|
41073
|
41073
41073-0005 Wheel-assy，rrWHEEL-ASSY，RR |
41073-0005 |
from US $1,191.28 |
||
| replacement | |||||
|
41073
|
41073
41073-0649 WHEEL-ASSY,RRWHEEL-ASSY，RR |
41073-0649 |
from US $1,303.54 |
||
|
42033
|
42033
42033-0001 COUPLING-ASSY,RR HUBCOUPLING-ASSY，RR HUB |
42033-0001 |
from US $238.01 |
||
| replacement | |||||
|
42033
|
42033
42033-0017 COUPLING-ASSY,RR HUBCOUPLING-ASSY，RR HUB |
42033-0017 |
US $245.12 |
||
|
42033A
|
42033A
42033-0017 COUPLING-ASSY,RR HUBCOUPLING-ASSY，RR HUB |
42033-0017 |
US $245.12 |
||
|
42036
|
42036
42036-1366 SLEEVE,RR HUB COUPLINSLEEVE，RR HUB COUPLING，L=22 |
42036-1366 |
from US $14.26 |
||
|
42046
|
42046
42046003 WASHER PLAIN 22MMWASHER，21X33X2.6 |
42046003 |
from US $3.01 |
||
|
43058
|
43058
43058-0004 RING,REAR PULLEYRING，REAR PULLEY |
43058-0004 |
from US $58.87 |
||
|
49079
|
49079
49079-0004-458 PULLEY-BELT,P.SILVERPULLEY-BELT，P.SILVER |
49079-0004-458 |
from US $666.12 |
||
|
59011
|
59011
59011-0004 BELT,DRIVE,133TBELT，DRIVE，133T |
59011-0004 |
from US $750.10 |
||
|
92004
|
92004
92004-0010 STUD,10X33STUD，10X33 |
92004-0010 |
from US $5.39 |
||
| replacement | |||||
|
92004
|
92004
92004-0016 STUD,10X35STUD，10X33 |
92004-0016 |
from US $4.44 |
||
|
92004A
|
92004A
92004-0016 STUD,10X35STUD，10X35 |
92004-0016 |
from US $4.44 |
||
|
92009
|
92009
92009-1805 SCREWSCREW |
92009-1805 |
from US $1.43 |
||
|
92015
|
92015
92015-1335 NUT,LOCK,FLANGED,10MMNUT，FLANGED，10MM |
92015-1335 |
from US $3.15 |
||
| replacement | |||||
|
92015
|
92015
92210-0276 NUT,LOCK,FLANGED,10MMNUT，FLANGED，10MM |
92210-0276 |
from US $1.43 |
||
|
92022
|
92022
92022-1820 WASHER,10.5X19X3.2WASHER，10.5X19X3.2 |
92022-1820 |
from US $2.69 |
||
|
92027
|
92027
92027-1902 COLLAR,RR AXLE,L=21.5COLLAR，RR AXLE，L=21.5 |
92027-1902 |
from US $15.68 |
||
|
92033
|
92033
92033-1043 RING,SNAP,52 M/MRING-SNAP，52MM |
92033-1043 |
from US $5.54 |
||
|
92049
|
92049
92049-1061 SEAL-OILSEAL-OIL，28X52X5 |
92049-1061 |
from US $16.47 |
||
|
92049A
|
92049A
92049-1263 SEAL-OIL,PJN40556SEAL-OIL，PJN40556 |
92049-1263 |
from US $12.20 |
||
|
92152
|
92152
92152-0050 COLLAR,RR AXLE,LH,L=4COLLAR，RR AXLE，LH，L=41 |
92152-0050 |
from US $21.23 |
||
|
92152A
|
92152A
92152-0051 COLLAR,RR HUB,L=210COLLAR，RR HUB，L=210 |
92152-0051 |
from US $16 |
||
|
92153
|
92153
92153-0827 BOLT,SOCKET,6X12BOLT，SOCKET，6X12 |
92153-0827 |
from US $1.90 |
||
|
92161
|
92161
92161-0043 DAMPER,SHOCK,RR HUBDAMPER，SHOCK，RR HUB |
92161-0043 |
from US $18.69 |
||
|
92210
|
92210
92210-1134 NUTNUT，CASTLE，18MM |
92210-1134 |
from US $3.96 |
||
