	Description	OEM Part #	Price
120	120 120W0625 BOLT-SOCKET BOLT-SOCKET，6X25	120W0625	from US $1.11
	replacement
120	120 120CB0625 BOLT-SOCKET BOLT-SOCKET，6X25	120CB0625	from US $1.27
551	551 551R0408 PIN-DOWEL PIN-DOWEL	551R0408	from US $3.17
13280	13280 13280-0007 HOLDER,INTAKE MANIFOL HOLDER，INTAKE MANIFOLD	13280-0007	from US $24.48
16021	16021 16021-0006 SCREW-THROTTLE STOP SCREW-THROTTLE STOP	16021-0006	from US $98.90
16073	16073 16073-3707 INSULATOR INSULATOR	16073-3707	from US $3.64
16163	16163 16163-0001 THROTTLE-ASSY THROTTLE-ASSY	16163-0001	from US $1,003.45
26031	26031 26031-0179 HARNESS HARNESS	26031-0179	from US $151.52
35063	35063 35063-0075 STAY STAY	35063-0075	from US $5.86
35063A	35063A 35063-0076 STAY STAY	35063-0076	from US $5.86
49033	49033 49033-0003 NOZZLE-INJECTION NOZZLE-INJECTION	49033-0003	from US $145.74
49056	49056 49056-0004 PIPE-INJECTION PIPE-INJECTION	49056-0004	from US $168.45
59071	59071 59071-3752 JOINT JOINT，3WAY，T	59071-3752	from US $8.71
59076	59076 59076-0001 MANIFOLD-INTAKE MANIFOLD-INTAKE	59076-0001	from US $215.33
92055	92055 92055-0056 RING-O RING-O	92055-0056	—
92055A	92055A 92055-1622 RING-O,INJECTION NOZZLE RING-O，INJECTION NOZZLE	92055-1622	from US $1.27
92068	92068 92068-006 RUBBER PLUG PLUG，12X25	92068-006	from US $2.85
92093	92093 92093-0006 SEAL SEAL	92093-0006	from US $13.46
92151	92151 92151-3774 BOLT,6X20 BOLT，SOCKET，6X20	92151-3774	from US $1.11
92171	92171 92171-0130 CLAMP CLAMP	92171-0130	from US $3.48
92191	92191 92191-0032 TUBE,3X7X300 TUBE，3X7X300	92191-0032	from US $7.13
92192	92192 92192-0106 TUBE TUBE	92192-0106	from US $4.12

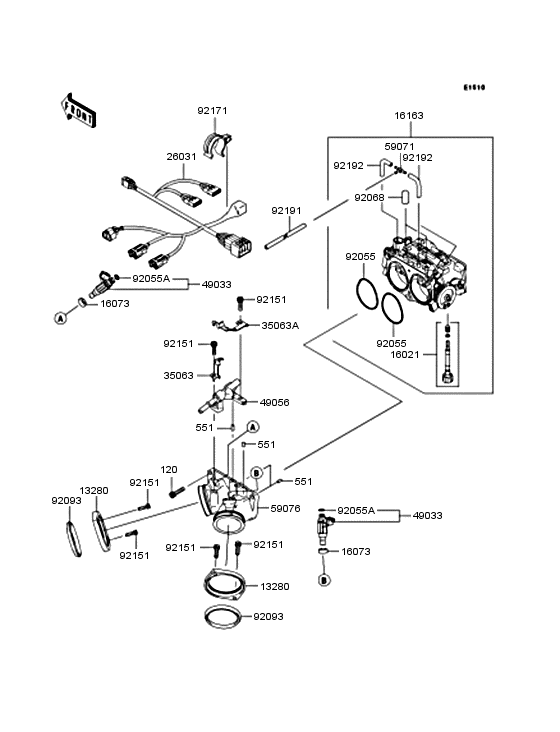

Throttle Diagram Kawasaki VN2000 VN2000 Metallic Dark Purple Prism (664) Malaysia 13852250-791009

Throttle Diagram Kawasaki VN2000 VN2000 Metallic Dark Purple Prism (664) Malaysia 13852250-791009
