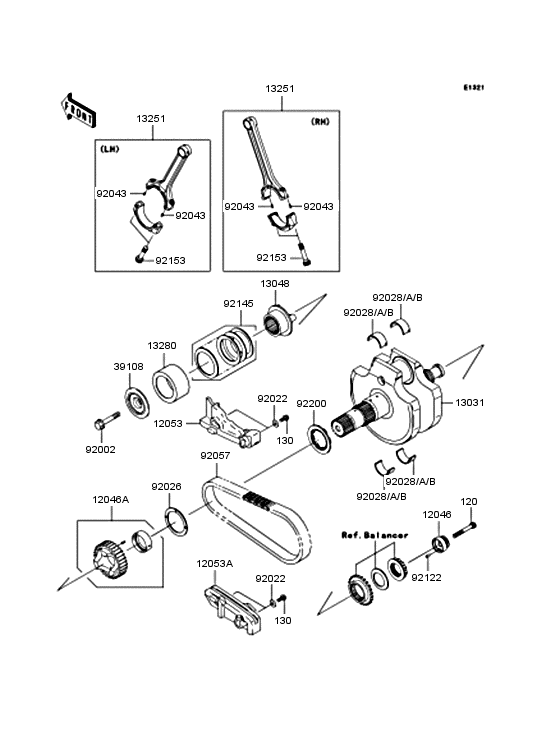

Crankshaft Diagram Kawasaki VN2000 VN2000
- Year
- 2005
- Colour
- Ebony (H8)
- Model code
- VN2000-A2
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 006001 -
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120Q0860
BOLT-SOCKET
BOLT-SOCKET，8X60 |
120Q0860 |
— | ||
|
130
|
130
130P0616 BOLT-FLANGED,6X16BOLT-FLANGED，6X16 |
130P0616 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130CA0616 BOLT-FLANGED,6X16BOLT-FLANGED，6X16 |
130CA0616 |
from US $0.95 |
||
|
12046
|
12046
12046-0005 SPROCKET,CAMSPROCKET，CAM |
12046-0005 |
from US $52.09 |
||
|
12046A
|
12046A
12046-0022
SPROCKET
SPROCKET |
12046-0022 |
— | ||
|
12053A
|
12053A
12053-0037
GUIDE-CHAIN,LWR
GUIDE-CHAIN，LWR |
12053-0037 |
— | ||
|
12053
|
12053
12053-0026
GUIDE-CHAIN,UPP
GUIDE-CHAIN，UPP |
12053-0026 |
— | ||
|
13031
|
13031
13031-0004 Crankshaft-compCRANKSHAFT-COMP |
13031-0004 |
from US $1,920.15 |
||
| replacement | |||||
|
13031
|
13031
13031-0031
Crankshaft-comp
CRANKSHAFT-COMP |
13031-0031 |
— | ||
|
13048
|
13048
13048-0001 CAM-DAMPERCAM-DAMPER |
13048-0001 |
US $150.13 |
||
|
13251
|
13251
13251-0001
ROD-ASSY-CONNECTING
ROD-ASSY-CONNECTING |
13251-0001 |
— | ||
|
13280
|
13280
13280-0027 HOLDERHOLDER |
13280-0027 |
from US $14.69 |
||
|
39108
|
39108
39108-0002 RETAINER-SPRINGRETAINER-SPRING |
39108-0002 |
from US $32.76 |
||
|
92002
|
92002
92002-1464 BOLT,FLANGED,12X60BOLT，FLANGED，12X60 |
92002-1464 |
from US $7.76 |
||
|
92022
|
92022
92022-1369 WASHER,6.2X18X1.2WASHER，6.2X18X1.2 |
92022-1369 |
from US $2.69 |
||
|
92026
|
92026
92026-0041
SPACER,57X74X1.97
SPACER，57X74X1.97 |
92026-0041 |
— | ||
|
92028A
|
92028A
92028-1475 BUSHING,CONNECTING ROD,BLACKBUSHING，CONNECTING ROD，BLACK |
92028-1475 |
from US $14.26 |
||
|
92028B
|
92028B
92028-1476 BUSHING,CONNECTING ROD,BROWNBUSHING，CONNECTING ROD，BROWN |
92028-1476 |
from US $14.26 |
||
|
92028
|
92028
92028-1474 BUSHING,CONNECTING ROD,BLUEBUSHING，CONNECTING ROD，BLUE |
92028-1474 |
from US $14.26 |
||
|
92043
|
92043
92043-0033 PIN,3X8.5PIN，3X8.5 |
92043-0033 |
from US $0.95 |
||
|
92057
|
92057
92057-0027 CHAIN,89HV304CF-88CHAIN，89HV304CF-88 |
92057-0027 |
from US $158.58 |
||
|
92122
|
92122
92122-1197 ROLLERROLLER，4X9.8 |
92122-1197 |
from US $2.69 |
||
|
92145
|
92145
92145-0031
SPRING
SPRING |
92145-0031 |
— | ||
|
92153
|
92153
92153-0314 BOLT,CONNECTING RODBOLT，CONNECTING ROD |
92153-0314 |
from US $5.39 |
||
|
92200
|
92200
92200-0013
WASHER
WASHER |
92200-0013 |
— | ||
