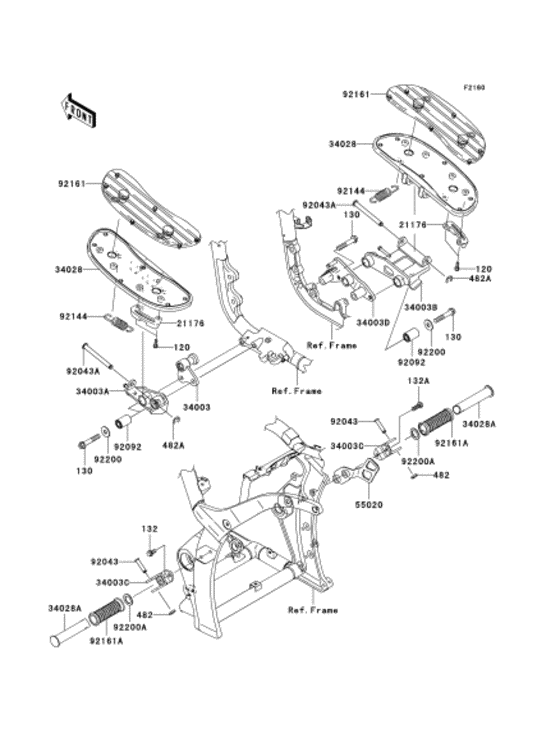

Footrests Diagram Kawasaki VN2000 VN2000
- Year
- 2005
- Colour
- Ebony (H8)
- Model code
- VN2000-A2
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 006001 -
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0616 BOLT-SOCKETBOLT-SOCKET，6X16 |
120S0616 |
from US $0.92 |
||
| replacement | |||||
|
120
|
120
120CB0616 BOLT-SOCKETBOLT-SOCKET，6X16 |
120CB0616 |
from US $1.11 |
||
|
130
|
130
130L1055 BOLT-FLANGED,10X55BOLT-FLANGED，10X55 |
130L1055 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130BB1055 BOLT-FLANGED,10X55BOLT-FLANGED，10X55 |
130BB1055 |
from US $1.74 |
||
|
132
|
132
132L0816 BOLT-FLANGED-SMALL,8XBOLT-FLANGED-SMALL，8X16 |
132L0816 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BB0816 BOLT-FLANGED-SMALL,8XBOLT-FLANGED-SMALL，8X16 |
132BB0816 |
from US $1.61 |
||
|
132A
|
132A
132L0830 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL，8X30 |
132L0830 |
from US $1.43 |
||
| replacement | |||||
|
132A
|
132A
132BB0830 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL，8X30 |
132BB0830 |
from US $1.27 |
||
|
482A
|
482A
482L8000
CIRCLIP-TYPE-E
CIRCLIP-TYPE-E，8MM; A1 |
482L8000 |
— | ||
| replacement | |||||
|
482A
|
482A
482EA8000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E，8MM; A1 |
482EA8000 |
from US $1.05 |
||
|
482
|
482
482L7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E |
482L7000 |
US $3.64 |
||
| replacement | |||||
|
482
|
482
482EA7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E |
482EA7000 |
from US $3.01 |
||
|
21176
|
21176
21176-0021 SENSOR,BANKSENSOR，BANK |
21176-0021 |
from US $15.93 |
||
|
34003
|
34003
34003-0020
HOLDER-STEP,FR,LH
HOLDER-STEP，FR，LH |
34003-0020 |
— | ||
|
34003A
|
34003A
34003-0026 HOLDER-STEP,FR,LHHOLDER-STEP，FR，LH |
34003-0026 |
from US $128.46 |
||
|
34003B
|
34003B
34003-0029 HOLDER-STEP,FR,RHHOLDER-STEP，FR，RH |
34003-0029 |
from US $160.38 |
||
|
34003C
|
34003C
34003-0030 HOLDER-STEP,RR,F.S.BLHOLDER-STEP，RR |
34003-0030 |
from US $29.02 |
||
| replacement | |||||
|
34003C
|
34003C
34003-0030-8F HOLDER-STEP,RR,F.S.BLHOLDER-STEP，RR |
34003-0030-8F |
from US $29.49 |
||
|
34003D
|
34003D
34003-0031 HOLDER-STEP,FR,RHHOLDER-STEP，FR，RH |
34003-0031 |
from US $124.29 |
||
|
34028
|
34028
34028-0011 STEPSTEP，FR |
34028-0011 |
from US $88.26 |
||
|
34028A
|
34028A
34028-0017 STEP,RRSTEP，RR |
34028-0017 |
from US $18.37 |
||
|
55020
|
55020
55020-0099 GUARD,MUFFLERGUARD，MUFFLER |
55020-0099 |
US $29.17 |
||
|
92043
|
92043
92043-1339 PINPIN，8X36.5 |
92043-1339 |
from US $5.23 |
||
|
92043A
|
92043A
92043-1707 PIN,10X98.5PIN，10X98.5 |
92043-1707 |
from US $7.62 |
||
|
92092
|
92092
92092-0005 BUSHING-RUBBERBUSHING-RUBBER |
92092-0005 |
from US $10.61 |
||
|
92144
|
92144
92144-1266 SPRING,BRAKE PEDAL RESPRING |
92144-1266 |
from US $5.70 |
||
|
92161
|
92161
92161-0126 DAMPER,FOOT BOARDDAMPER，FOOT BOARD |
92161-0126 |
from US $46.97 |
||
|
92161A
|
92161A
92161-0232 DAMPER,STEPDAMPER，STEP |
92161-0232 |
from US $9.82 |
||
|
92200
|
92200
92200-0113 WASHER,10.3X28X2.3WASHER，10.3X28X2.3 |
92200-0113 |
from US $3.33 |
||
|
92200A
|
92200A
92200-1482 WASHER,22.5X33X2.3WASHER，22.5X33X2.3 |
92200-1482 |
from US $1.43 |
||
