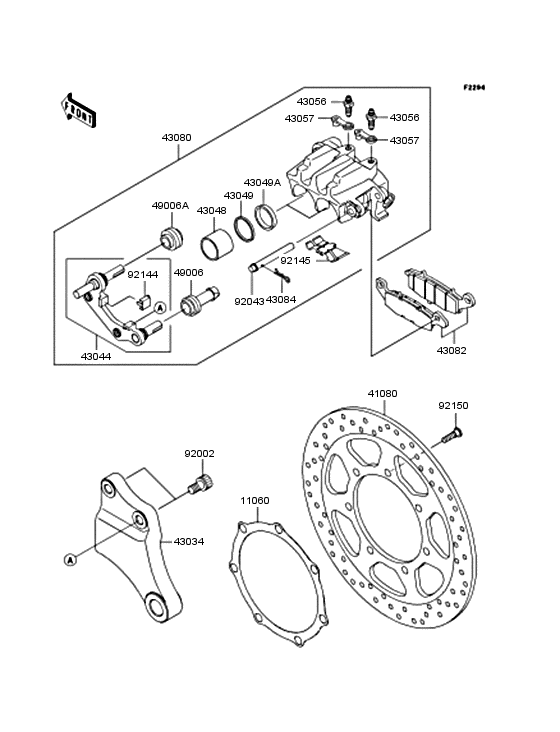

Rear brake Diagram Kawasaki VN2000 VN2000
- Year
- 2005
- Colour
- Ebony (H8)
- Model code
- VN2000-A2
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 006001 -
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11060-1865 GASKET,FRONT DISCGASKET，DISC |
11060-1865 |
from US $15.68 |
||
|
41080
|
41080
41080-0007-CM DISC,RR,SILVERDISC，RR，SILVER |
41080-0007-CM |
from US $462.40 |
||
|
43034
|
43034
43034-0001 Holder-brake,rear calHOLDER-BRAKE，REAR CALIPER |
43034-0001 |
from US $160.79 |
||
|
43044
|
43044
43044-1134 HOLDER-COMP-CALIPER,RHOLDER-COMP-CALIPER，RR |
43044-1134 |
from US $127.76 |
||
|
43048
|
43048
43048-1094 PISTON-CALIPERPISTON-CALIPER |
43048-1094 |
from US $42.79 |
||
|
43049
|
43049
43049-1068 PACKINGPACKING |
43049-1068 |
from US $6.97 |
||
|
43049A
|
43049A
43049-1092 PACKINGPACKING，PISTON SEAL |
43049-1092 |
from US $6.97 |
||
|
43056
|
43056
43056-1054
Breather-brake
BREATHER-BRAKE |
43056-1054 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SETBREATHER-BRAKE |
43085-001 |
from US $21.90 |
||
|
43057
|
43057
43057-003 CAP,BREEDERCAP-BREATHER |
43057-003 |
from US $3.16 |
||
|
43080
|
43080
43080-5098-GN CALIPER-SUB-ASSY,RR,SCALIPER-SUB-ASSY，RR，SILVER |
43080-5098-GN |
from US $386.11 |
||
|
43082
|
43082
43082-0015 PAD-ASSY-BRAKEPAD-ASSY-BRAKE |
43082-0015 |
from US $71.41 |
||
| replacement | |||||
|
43082
|
43082
43082-0052 PAD-ASSY-BRAKEPAD-ASSY-BRAKE |
43082-0052 |
from US $78.83 |
||
|
43084
|
43084
43084003 CLIPCLAMP，PAD |
43084003 |
from US $3.17 |
||
|
49006
|
49006
49006-1094 BOOT,CALIPERBOOT，CALIPER |
49006-1094 |
from US $8.87 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPERBOOT，CALIPER |
49006-1095 |
from US $4.91 |
||
|
92002
|
92002
92002-1713 BOLT,SOCKET,10X17BOLT，SOCKET，10X17 |
92002-1713 |
from US $3.96 |
||
|
92043
|
92043
92043-1640 PIN,PADPIN，PAD |
92043-1640 |
from US $3.96 |
||
|
92144
|
92144
92144-1831 SPRING,STOPPERSPRING，STOPPER |
92144-1831 |
from US $4.09 |
||
|
92145
|
92145
92145-1382 SPRING,PADSPRING，PAD |
92145-1382 |
from US $13.45 |
||
|
92150
|
92150
92150-1771 BOLT,SOCKET,8X30BOLT，SOCKET，8X30 |
92150-1771 |
US $6.05 |
||
| replacement | |||||
|
92150
|
92150
92154-1865 BOLT,SOCKET,8X30BOLT，SOCKET，8X30 |
92154-1865 |
from US $2.85 |
||
