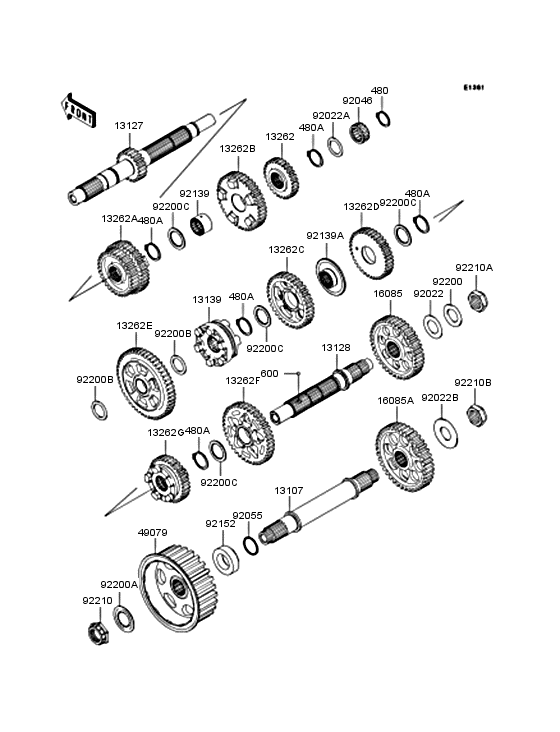

Transmission Diagram Kawasaki VN2000 VN2000
- Year
- 2005
- Colour
- Ebony (H8)
- Model code
- VN2000-A2
- Sales region
- Malaysia
- Engine Capacity
- 2000
- Frame
- VNW00A 006001 -
- Engine
- VNW00AE 000001 -
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J2500 CIRCLIP-TYPE-C,25MMCIRCLIP-TYPE-C，25MM |
480J2500 |
from US $1.27 |
||
|
480A
|
480A
480J2900 CIRCLIPCIRCLIP |
480J2900 |
from US $1.43 |
||
|
600
|
600
600A0500 BALL STEEL 5/32'BALL-STEEL，5/32"; s |
600A0500 |
from US $0.91 |
||
|
13107
|
13107
13107-0066 SHAFT,PULLEYSHAFT，PULLEY |
13107-0066 |
US $321.71 |
||
| replacement | |||||
|
13107
|
13107
13107-0108
SHAFT,PULLEY
SHAFT，PULLEY |
13107-0108 |
— | ||
|
13127
|
13127
13127-0003 SHAFT-TRANSMISSION INSHAFT-TRANSMISSION INPUT |
13127-0003 |
from US $418.59 |
||
|
13128
|
13128
13128-0013 SHAFT-TRANSMISSION OUSHAFT-TRANSMISSION OUTPUT |
13128-0013 |
from US $418.59 |
||
|
13139
|
13139
13139-0001 SHIFTER,OUTPUTSHIFTER，OUTPUT |
13139-0001 |
from US $118.40 |
||
|
13262G
|
13262G
13262-0012 GEAR,OUTPUT 5TH,27TGEAR，OUTPUT 5TH，27T |
13262-0012 |
from US $165.24 |
||
|
13262
|
13262
13262-0004
GEAR,INPUT 2ND,27T
GEAR，INPUT 2ND，27T |
13262-0004 |
— | ||
|
13262A
|
13262A
13262-0005 GEAR,INPUT 3RD&4TH,32GEAR，INPUT 3RD4TH，32T33T |
13262-0005 |
from US $165.24 |
||
|
13262B
|
13262B
13262-0006 GEAR,INPUT 5TH,37TGEAR，INPUT 5TH，37T |
13262-0006 |
from US $165.24 |
||
|
13262C
|
13262C
13262-0008 GEAR,OUTPUT 3RD,39TGEAR，OUTPUT 3RD，39T |
13262-0008 |
from US $165.24 |
||
|
13262D
|
13262D
13262-0009 GEAR,OUTPUT 4TH,31TGEAR，OUTPUT 4TH，31T |
13262-0009 |
from US $165.24 |
||
|
13262E
|
13262E
13262-0010 GEAR,OUTPUT LOW,51TGEAR，OUTPUT LOW，51T |
13262-0010 |
from US $165.24 |
||
|
13262F
|
13262F
13262-0011 GEAR,OUTPUT 2ND,44TGEAR，OUTPUT 2ND，44T |
13262-0011 |
from US $165.24 |
||
|
16085
|
16085
16085-0004 GEAR,TRANSFER,41TGEAR，TRANSFER，41T |
16085-0004 |
from US $165.24 |
||
|
16085A
|
16085A
16085-0032 GEAR,TRANSFER,50TGEAR，TRANSFER，50T |
16085-0032 |
from US $165.24 |
||
|
49079
|
49079
49079-0005
PULLEY-BELT
PULLEY-BELT |
49079-0005 |
— | ||
| replacement | |||||
|
49079
|
49079
49079-0014
PULLEY-BELT
PULLEY-BELT |
49079-0014 |
— | ||
|
92022
|
92022
92022-1390 WASHER,25.3X44X1WASHER，25.3X44X1 |
92022-1390 |
from US $3.01 |
||
|
92022A
|
92022A
92022-1855 WASHER,OUTPUT,LOWWASHER，25.5X36X1.0 |
92022-1855 |
from US $6.18 |
||
|
92022B
|
92022B
92022-1857 WASHER,25.3X56X2.0WASHER，25.3X56X2.0 |
92022-1857 |
from US $8.71 |
||
|
92046
|
92046
92046-0007 BEARING-NEEDLEBEARING-NEEDLE，KT 253515E02 C3 |
92046-0007 |
from US $20.28 |
||
|
92055
|
92055
92055-0006 RING-O,29.7X2.4RING-O，29.7X2.4 |
92055-0006 |
from US $3.17 |
||
|
92139A
|
92139A
92139-0007 BUSHING,OUTPUT 3RD-4TBUSHING，OUTPUT 3RD-4TH GEAR |
92139-0007 |
from US $54.01 |
||
|
92139
|
92139
92139-0006 BUSHINGBUSHING |
92139-0006 |
from US $33.51 |
||
|
92152
|
92152
92152-0021
COLLAR,30X50X16
COLLAR，30X50X16 |
92152-0021 |
— | ||
|
92200
|
92200
92200-0016 WASHER,25.5X42X2.6WASHER，25.5X42X2.6 |
92200-0016 |
from US $3.01 |
||
|
92200A
|
92200A
92200-0017 WASHER,31X50X1WASHER，31X50X1 |
92200-0017 |
from US $2.22 |
||
| replacement | |||||
|
92200A
|
92200A
92200-0505 WASHER,31X50X1WASHER，31X50X1 |
92200-0505 |
from US $2.62 |
||
|
92200B
|
92200B
92200-0116 WASHER,25.5X36X1.6WASHER，25.5X36X1.6 |
92200-0116 |
from US $6.81 |
||
|
92200C
|
92200C
92200-1381 WASHER,30.3X40X1.5WASHER，30.3X40X1.5 |
92200-1381 |
from US $7.44 |
||
|
92210
|
92210
92210-0060 NUT,25MMNUT，25MM |
92210-0060 |
from US $25.28 |
||
| replacement | |||||
|
92210
|
92210
92210-0554 NUT,25MMNUT，25MM |
92210-0554 |
from US $29.76 |
||
|
92210A
|
92210A
92210-0136 NUT,25MMNUT，LEFT HANDED，25MM |
92210-0136 |
from US $3.48 |
||
|
92210B
|
92210B
92210-0138 NUT,25MMNUT，25MM |
92210-0138 |
from US $3.01 |
||
