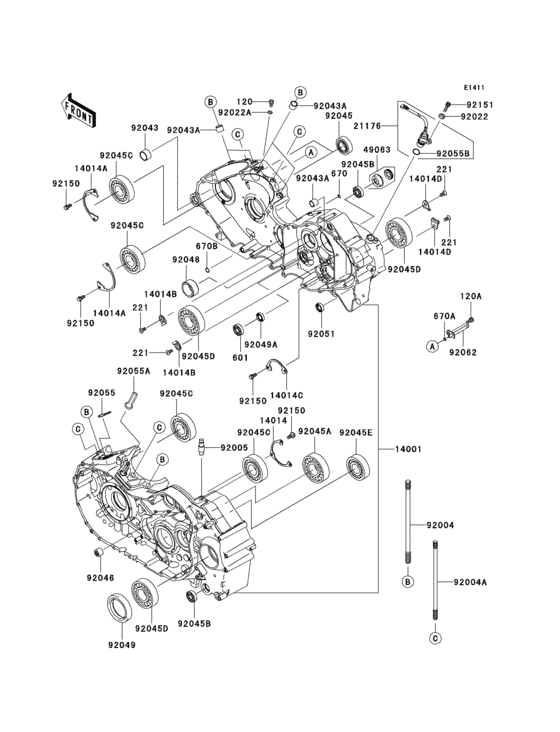

Crankcase Diagram Kawasaki VN2000 Vulcan 2000
- Year
- 2006
- Colour
- Galaxy Silver Type2 / Ebony (686)
- Model code
- VN2000A6F
- Sales region
- Europe (General)
- Engine Capacity
- 2000
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120R0610 BOLT-SOCKET |
120R0610 |
from US $1.11 |
||
|
120A
|
120A
120R0612 BOLT-SOCKET |
120R0612 |
from US $1.27 |
||
|
221
|
221
221B0614 SCREW-CSK-CROS,6X14 |
221B0614 |
from US $0.95 |
||
| replacement | |||||
|
221
|
221
221AA0614 SCREW-CSK-CROS,6X14 |
221AA0614 |
from US $0.94 |
||
|
601
|
601
601A6001 BEARING-BALL |
601A6001 |
from US $9.75 |
||
|
670
|
670
670D1505 O-RING |
670D1505 |
from US $2.53 |
||
|
670A
|
670A
670D1506 O RING |
670D1506 |
from US $2.19 |
||
|
670B
|
670B
670D2010 O RING |
670D2010 |
from US $2.52 |
||
|
14001
|
14001
14001-5392 SET-CRANKCASE |
14001-5392 |
from US $2,669.45 |
||
|
14014
|
14014
14014-0001 PLATE-POSITION |
14014-0001 |
from US $9.18 |
||
|
14014A
|
14014A
14014-0002 PLATE-POSITION |
14014-0002 |
from US $9.18 |
||
|
14014B
|
14014B
14014-0003 PLATE-POSITION |
14014-0003 |
from US $3.54 |
||
|
14014C
|
14014C
14014-0004 PLATE-POSITION |
14014-0004 |
from US $3.67 |
||
|
14014D
|
14014D
14014-0011 PLATE-POSITION |
14014-0011 |
from US $4.16 |
||
|
21176
|
21176
21176-0038 SENSOR,SPEED |
21176-0038 |
from US $141.84 |
||
|
49063
|
49063
49063-1055 SEAL-MECHANICAL |
49063-1055 |
from US $20.64 |
||
|
92004
|
92004
92004-0008 STUD,12X217 |
92004-0008 |
from US $17.42 |
||
|
92004A
|
92004A
92004-0009 STUD,10X206 |
92004-0009 |
from US $12.67 |
||
|
92005
|
92005
92005-0015 FITTING,BREATHER |
92005-0015 |
from US $16 |
||
|
92022
|
92022
92022-1506 WASHER,6.5X11.5X2 |
92022-1506 |
from US $2.53 |
||
|
92022A
|
92022A
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92043
|
92043
92043-0032 PIN,24X14 |
92043-0032 |
from US $4.75 |
||
|
92043A
|
92043A
92043-1608 PIN |
92043-1608 |
from US $3.01 |
||
|
92045
|
92045
92045-0002 BEARING-BALL,60/22 |
92045-0002 |
from US $24.24 |
||
|
92045A
|
92045A
92045-0022 BEARING-BALL,6306LU |
92045-0022 |
from US $35.16 |
||
|
92045B
|
92045B
92045-1151 BEARING-BALL,6001LLU |
92045-1151 |
from US $22.58 |
||
|
92045C
|
92045C
92045-1189 BEARING-BALL,63/28 |
92045-1189 |
from US $37.70 |
||
| replacement | |||||
|
92045C
|
92045C
92045-1183 Bearing-ball,tmb3/28j |
92045-1183 |
from US $37.70 |
||
|
92045D
|
92045D
92045-1190 BEARING-BALL,6306SH2 |
92045-1190 |
from US $30.82 |
||
|
92045E
|
92045E
92045-1254 BEARING-BALL,6305RHR4 |
92045-1254 |
from US $36.35 |
||
|
92046
|
92046
92046-1163 BEARING-NEEDLE,HK1212 |
92046-1163 |
from US $15.05 |
||
|
92048
|
92048
92048-1103 RACE |
92048-1103 |
from US $18.69 |
||
|
92049
|
92049
92049-0010 SEAL-OIL |
92049-0010 |
from US $14.57 |
||
|
92049A
|
92049A
92049-1228 SEAL-OIL,AC037AE0 |
92049-1228 |
from US $6.81 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-0007 RING-O,FR CYLINDER BA |
92055-0007 |
from US $2.22 |
||
|
92055A
|
92055A
92055-0008 RING-O,RR CYLINDER BA |
92055-0008 |
from US $2.22 |
||
|
92055B
|
92055B
92055-1638 RING-O |
92055-1638 |
from US $1.11 |
||
|
92062
|
92062
92062-0002
NOZZLE
|
92062-0002 |
— | ||
|
92150
|
92150
92150-1916 BOLT |
92150-1916 |
from US $1.90 |
||
|
92151
|
92151
92151-3774 BOLT,6X20 |
92151-3774 |
from US $1.11 |
||
