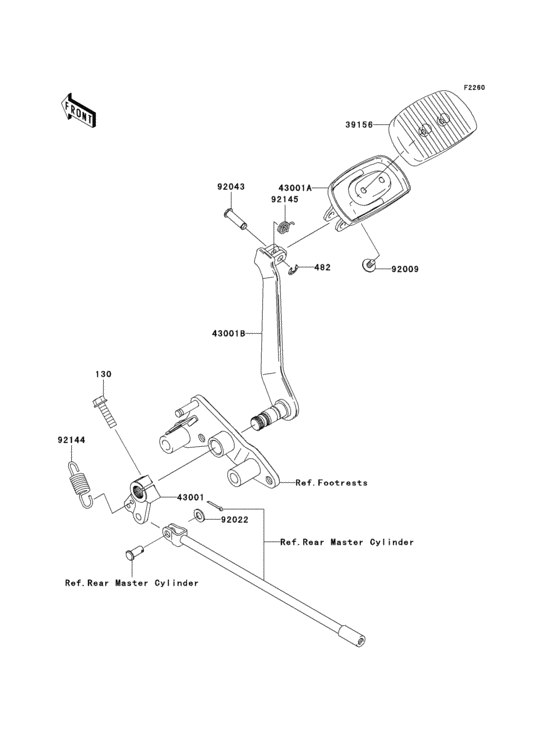

Brake pedal Diagram Kawasaki VN2000 VN2000
- Year
- 2006
- Colour
- Galaxy Silver Type2 / Ebony (686)
- Model code
- VN2000A6F
- Sales region
- Europe (General)
- Engine Capacity
- 2000
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130L0830 BOLT-FLANGE,8X30 |
130L0830 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130BB0830 BOLT-FLANGE,8X30 |
130BB0830 |
from US $1.13 |
||
|
482
|
482
482L7000 CIRCLIP-TYPE-E |
482L7000 |
US $3.64 |
||
| replacement | |||||
|
482
|
482
482EA7000 CIRCLIP-TYPE-E |
482EA7000 |
from US $3.01 |
||
|
39156
|
39156
39156-0045 PAD,BRAKE PEDAL |
39156-0045 |
from US $24.24 |
||
|
43001
|
43001
43001-0022 LEVER-BRAKE |
43001-0022 |
from US $39.37 |
||
|
43001A
|
43001A
43001-0023 LEVER-BRAKE |
43001-0023 |
from US $26.78 |
||
|
43001B
|
43001B
43001-0031 LEVER-BRAKE,PADAL |
43001-0031 |
from US $98.36 |
||
|
92009
|
92009
92009-1818 SCREW |
92009-1818 |
from US $1.74 |
||
| replacement | |||||
|
92009
|
92009
92172-0098 SCREW |
92172-0098 |
from US $1.27 |
||
|
92022
|
92022
92022-1582
WASHER-PLAIN-SMALL,8M
|
92022-1582 |
— | ||
| replacement | |||||
|
92022
|
92022
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
92043
|
92043
92043-0047 PIN,8X24.5 |
92043-0047 |
from US $4.12 |
||
|
92144
|
92144
92144-1169 SPRING,BRAKE PEDAL RE |
92144-1169 |
from US $6.34 |
||
|
92145
|
92145
92145-0168 SPRING |
92145-0168 |
from US $4.12 |
||
