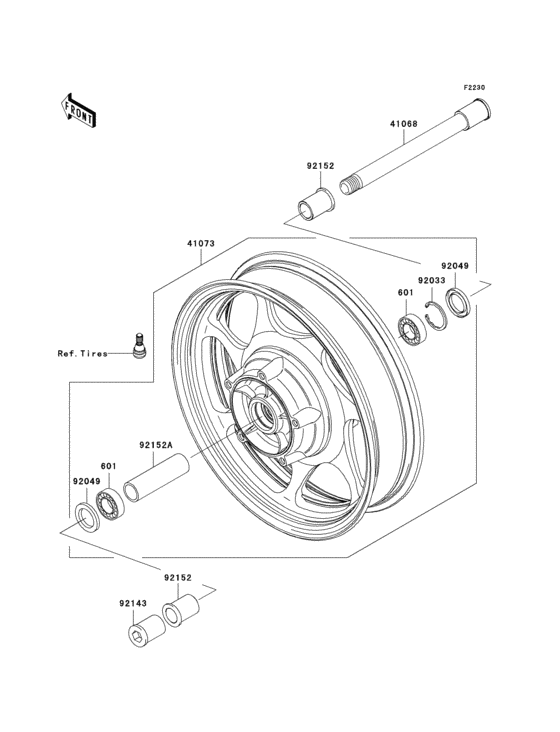

Front hub Diagram Kawasaki VN2000 VN2000
- Year
- 2006
- Colour
- Galaxy Silver Type2 / Ebony (686)
- Model code
- VN2000A6F
- Sales region
- Europe (General)
- Engine Capacity
- 2000
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6005UU BEARING-BALL,#6005UU |
601B6005UU |
from US $22.59 |
||
|
41068
|
41068
41068-0028 AXLE,FR |
41068-0028 |
from US $72.77 |
||
|
41073
|
41073
41073-0004 WHEEL-ASSY,FR |
41073-0004 |
from US $1,192.45 |
||
| replacement | |||||
|
41073
|
41073
41073-0059 WHEEL-ASSY,FR |
41073-0059 |
US $1,011.57 |
||
|
92033
|
92033
92033-1042 CIRCLIP,47M/M |
92033-1042 |
from US $3.48 |
||
|
92049
|
92049
92049-1377 SEAL-OIL,BJN 32 47 5 |
92049-1377 |
from US $9.82 |
||
|
92143
|
92143
92143-1478 COLLAR,FR AXLE,LH,L=4 |
92143-1478 |
from US $27.83 |
||
|
92152
|
92152
92152-0182 COLLAR,FR,AXLE,L=44 |
92152-0182 |
from US $20.94 |
||
|
92152A
|
92152A
92152-1308 COLLAR,FR HUB,L=109 |
92152-1308 |
from US $17.74 |
||
