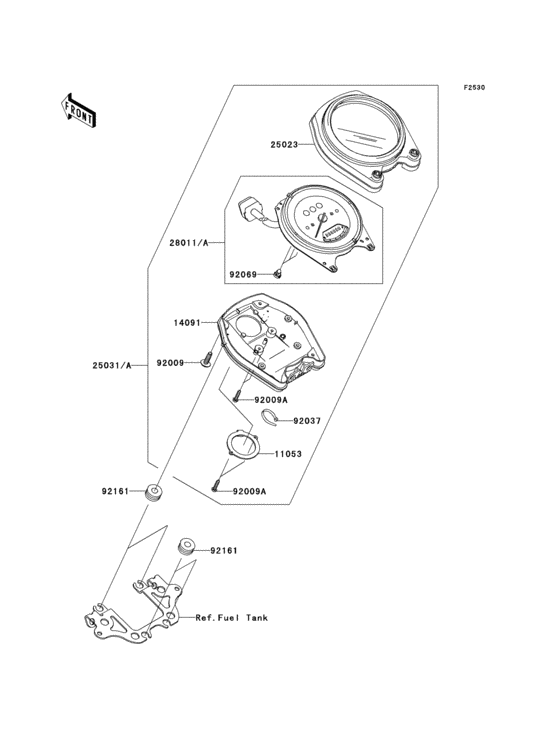

Meter(s) Diagram Kawasaki VN2000 VN2000
- Year
- 2006
- Colour
- Galaxy Silver Type2 / Ebony (686)
- Model code
- VN2000A6F
- Sales region
- Europe (General)
- Engine Capacity
- 2000
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-0022 BRACKET,METER |
11053-0022 |
from US $11.61 |
||
|
14091
|
14091
14091-0009 COVER,METER,LWR |
14091-0009 |
from US $75.26 |
||
|
25023
|
25023
25023-0002 Cover-meter case,upp |
25023-0002 |
from US $160.47 |
||
|
25031A
|
25031A
25031-0047 Meter-assy,mph |
25031-0047 |
US $774.49 |
||
|
28011A
|
28011A
28011-0014 Meter,speed,mph |
28011-0014 |
US $593.47 |
||
|
92009
|
92009
92009-1163 SCREW,TAPPING,4X16 |
92009-1163 |
from US $2.69 |
||
|
92009A
|
92009A
92009-1255 SCREW,TAPPING,3X12 |
92009-1255 |
from US $2.53 |
||
|
92037
|
92037
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92069
|
92069
92069-1110 BULB,T3.4,12V1.1W |
92069-1110 |
from US $5.23 |
||
|
92161
|
92161
92161-0056 DAMPER |
92161-0056 |
from US $1.58 |
