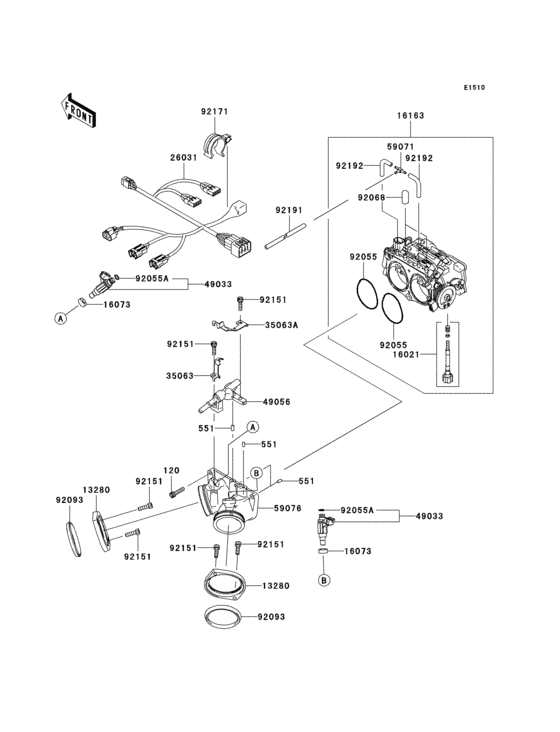

Throttle Diagram Kawasaki VN2000 VN2000
- Year
- 2006
- Colour
- Galaxy Silver Type2 / Ebony (686)
- Model code
- VN2000A6F
- Sales region
- Europe (General)
- Engine Capacity
- 2000
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120W0625 BOLT-SOCKET |
120W0625 |
from US $1.11 |
||
| replacement | |||||
|
120
|
120
120CB0625 BOLT-SOCKET |
120CB0625 |
from US $1.27 |
||
|
551
|
551
551R0408 PIN-DOWEL |
551R0408 |
from US $3.17 |
||
|
13280
|
13280
13280-0007 HOLDER,INTAKE MANIFOL |
13280-0007 |
from US $24.48 |
||
|
16021
|
16021
16021-0006 SCREW-THROTTLE STOP |
16021-0006 |
from US $98.90 |
||
|
16073
|
16073
16073-3707 INSULATOR |
16073-3707 |
from US $3.64 |
||
|
16163
|
16163
16163-0001 THROTTLE-ASSY |
16163-0001 |
from US $1,003.45 |
||
|
26031
|
26031
26031-0179 HARNESS |
26031-0179 |
from US $151.52 |
||
|
35063
|
35063
35063-0075 STAY |
35063-0075 |
from US $5.86 |
||
|
35063A
|
35063A
35063-0076 STAY |
35063-0076 |
from US $5.86 |
||
|
49033
|
49033
49033-0003 NOZZLE-INJECTION |
49033-0003 |
from US $145.74 |
||
|
49056
|
49056
49056-0004 PIPE-INJECTION |
49056-0004 |
from US $168.45 |
||
|
59071
|
59071
59071-3752 JOINT |
59071-3752 |
from US $8.71 |
||
|
59076
|
59076
59076-0001 MANIFOLD-INTAKE |
59076-0001 |
from US $215.33 |
||
|
92055
|
92055
92055-0056
RING-O
|
92055-0056 |
— | ||
|
92055A
|
92055A
92055-1622 RING-O,INJECTION NOZZLE |
92055-1622 |
from US $1.27 |
||
|
92068
|
92068
92068-006 RUBBER PLUG |
92068-006 |
from US $2.85 |
||
|
92093
|
92093
92093-0006 SEAL |
92093-0006 |
from US $13.46 |
||
|
92151
|
92151
92151-3774 BOLT,6X20 |
92151-3774 |
from US $1.11 |
||
|
92171
|
92171
92171-0130 CLAMP |
92171-0130 |
from US $3.48 |
||
|
92191
|
92191
92191-0032 TUBE,3X7X300 |
92191-0032 |
from US $7.13 |
||
|
92192
|
92192
92192-0106 TUBE |
92192-0106 |
from US $4.12 |
||
