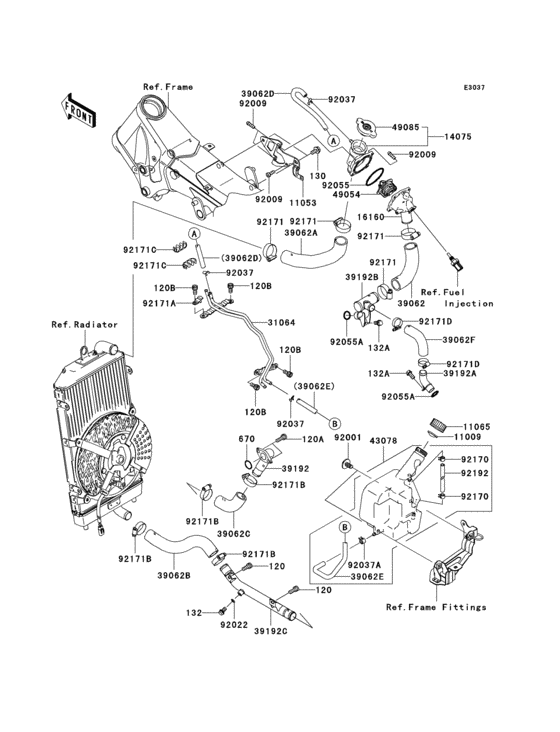

Water pipe(1/2) Diagram Kawasaki VN2000 VN2000
- Year
- 2006
- Colour
- Galaxy Silver Type2 / Ebony (686)
- Model code
- VN2000A6F
- Sales region
- Europe (General)
- Engine Capacity
- 2000
- Model
- Vulcan 2000/ VN2000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120R0614 BOLT-SOCKET |
120R0614 |
from US $1.43 |
||
|
120A
|
120A
120R0616 BOLT-SOCKET |
120R0616 |
from US $1.11 |
||
|
120B
|
120B
120W0612 BOLT-SOCKET,6X12 |
120W0612 |
from US $1.43 |
||
| replacement | |||||
|
120B
|
120B
120CB0612 BOLT-SOCKET,6X12 |
120CB0612 |
from US $1.11 |
||
|
130
|
130
130L0612 BOLT-FLANGED,6X12 |
130L0612 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
132
|
132
132L0610 BOLT-FLANGED-SMALL,6X |
132L0610 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BB0610 BOLT-FLANGED-SMALL,6X |
132BB0610 |
from US $1.11 |
||
|
132A
|
132A
132L0612 BOLT-FLANGED-SMALL,6X |
132L0612 |
from US $1.37 |
||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
670
|
670
670B2020 0 RING,20MM |
670B2020 |
from US $1.68 |
||
|
11009
|
11009
11009-1145 GASKET,RESERVE TANK |
11009-1145 |
from US $1.79 |
||
|
11053
|
11053
11053-0733 BRACKET,THERMOSTAT |
11053-0733 |
from US $18.36 |
||
|
11065
|
11065
11065-0063
CAP
|
11065-0063 |
— | ||
|
14075
|
14075
14075-0001 CAP-ASSY |
14075-0001 |
from US $101.43 |
||
|
16160
|
16160
16160-0095 BODY,THERMOSTAT |
16160-0095 |
from US $46.97 |
||
| replacement | |||||
|
16160
|
16160
16160-0781 BODY |
16160-0781 |
from US $39.20 |
||
|
31064
|
31064
31064-0011 PIPE-COMP |
31064-0011 |
from US $126.26 |
||
|
39062
|
39062
39062-0004 HOSE-COOLING,THERMO-P |
39062-0004 |
from US $18.43 |
||
|
39062A
|
39062A
39062-0005 HOSE-COOLING,THERMO-R |
39062-0005 |
US $18.43 |
||
|
39062B
|
39062B
39062-0008 HOSE-COOLING,RADIATOR |
39062-0008 |
from US $18.43 |
||
|
39062C
|
39062C
39062-0009 HOSE-COOLING,PIPE-WAT |
39062-0009 |
from US $7.60 |
||
|
39062D
|
39062D
39062-0047 HOSE-COOLING,THERMO-P |
39062-0047 |
from US $12.30 |
||
|
39062E
|
39062E
39062-0062 HOSE-COOLING,RESERVOI |
39062-0062 |
from US $9.22 |
||
|
39062F
|
39062F
39062-0064 HOSE-COOLING,RR HEAD- |
39062-0064 |
from US $9.22 |
||
|
39192
|
39192
39192-0001 PIPE-WATER |
39192-0001 |
from US $35.86 |
||
|
39192A
|
39192A
39192-0007 PIPE-WATER,RR HEAD |
39192-0007 |
from US $22.59 |
||
|
39192B
|
39192B
39192-0008 PIPE-WATER,FR HEAD |
39192-0008 |
from US $48.51 |
||
|
39192C
|
39192C
39192-0009 PIPE-WATER,RADIATOR-W |
39192-0009 |
from US $48.51 |
||
|
43078
|
43078
43078-0020 RESERVOIR |
43078-0020 |
from US $66.57 |
||
|
49054
|
49054
49054-1067 THERMOSTAT |
49054-1067 |
US $65.04 |
||
| replacement | |||||
|
49054
|
49054
49054-0004 THERMOSTAT |
49054-0004 |
from US $44.30 |
||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $33.96 |
||
|
92001
|
92001
92001-1950 BOLT,6X16 |
92001-1950 |
from US $2.69 |
||
|
92009
|
92009
92009-1341 SCREW,5X14 |
92009-1341 |
from US $3.73 |
||
|
92022
|
92022
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $3.17 |
||
|
92055
|
92055
92055-112 O-RING,53.5MM |
92055-112 |
from US $4.80 |
||
|
92055A
|
92055A
92055-1258 RING-O,ID=16.8 |
92055-1258 |
from US $3.33 |
||
|
92170
|
92170
92170-1493 CLAMP |
92170-1493 |
from US $3.17 |
||
|
92171
|
92171
92171-0179 CLAMP |
92171-0179 |
from US $6.49 |
||
|
92171A
|
92171A
92171-0209 CLAMP |
92171-0209 |
from US $4.75 |
||
|
92171B
|
92171B
92171-0261 CLAMP |
92171-0261 |
from US $11.88 |
||
|
92171C
|
92171C
92171-0334 CLAMP |
92171-0334 |
from US $3.17 |
||
|
92171D
|
92171D
92171-0338 CLAMP |
92171-0338 |
from US $5.70 |
||
|
92192
|
92192
92192-0010 TUBE,7X10X120 |
92192-0010 |
from US $3.17 |
||
