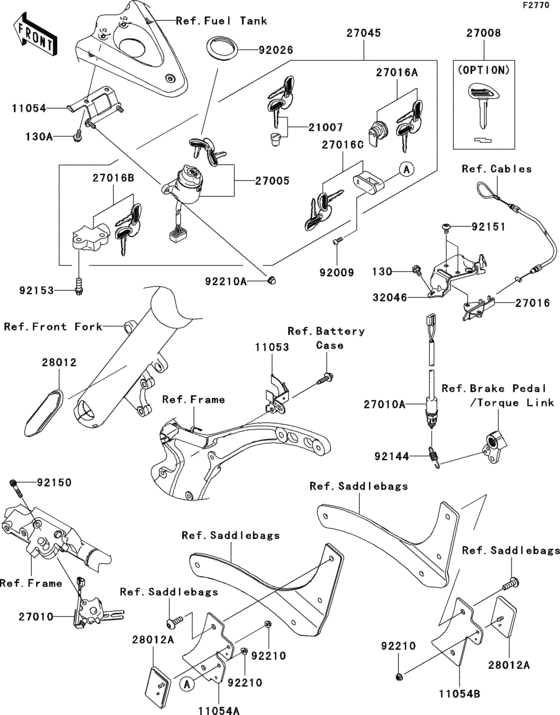

Ignition switch/locks/reflectors Diagram Kawasaki VN2000 Vulcan 2000 Classic LT
- Year
- 2007
- Model code
- VN2000F7F
- Sales region
- Canada
- Engine Capacity
- 2000
- Frame
- JKBVNMF1 7A004001 - 999999
- Model
- Vulcan 2000 Classic LT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
11053
|
11053
11053-0920 BRACKET,SIDE COVER LO |
11053-0920 |
from US $14.69 |
||
|
11054
|
11054
11054-0095 BRACKET,IGNITION SWIT |
11054-0095 |
from US $30.05 |
||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-0027 SWITCH-ASSY-IGNITION |
27005-0027 |
from US $186.37 |
||
|
27008
|
27008
27008-1211 KEY-LOCK,BLANK |
27008-1211 |
from US $21.23 |
||
|
27010
|
27010
27010-0011 SWITCH,SIDE STAND |
27010-0011 |
from US $61.57 |
||
|
27010A
|
27010A
27010-0023 SWITCH,REAR BRAKE |
27010-0023 |
from US $30.07 |
||
|
27016
|
27016
27016-1115 LOCK-ASSY,SEAT STRIKE |
27016-1115 |
from US $22.44 |
||
|
27016A
|
27016A
27016-5182 LOCK-ASSY,PAD |
27016-5182 |
from US $49.22 |
||
|
27016B
|
27016B
27016-5298 LOCK-ASSY,STEERING |
27016-5298 |
from US $104.43 |
||
|
27016C
|
27016C
27016-5311 LOCK-ASSY,HELMET |
27016-5311 |
from US $49.22 |
||
|
27045
|
27045
27045-5324 SWITCH-ASSY |
27045-5324 |
from US $468.43 |
||
|
28012A
|
28012A
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
32046
|
32046
32046-0037 BRACKET-SEAT |
32046-0037 |
from US $25.09 |
||
|
92009
|
92009
92009-1341 SCREW,5X14 |
92009-1341 |
from US $3.73 |
||
|
92026
|
92026
92026-0018 SPACER,IGNITION SWITC |
92026-0018 |
from US $4.75 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWI |
92144-1141 |
from US $3.33 |
||
|
92150
|
92150
92150-1958 BOLT,SOCKET,6X40 |
92150-1958 |
from US $3.17 |
||
|
92151
|
92151
92151-1219 BOLT |
92151-1219 |
from US $3.80 |
||
|
92153
|
92153
92153-1273 BOLT,TORX,8X22 |
92153-1273 |
from US $3.01 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MM |
92210-0007 |
from US $1.61 |
||
|
92210A
|
92210A
92210-1252 NUT,CAP,6MM |
92210-1252 |
from US $1.37 |
||
| replacement | |||||
|
92210A
|
92210A
92210-0322 NUT,CAP,6MM |
92210-0322 |
from US $0.63 |
||
