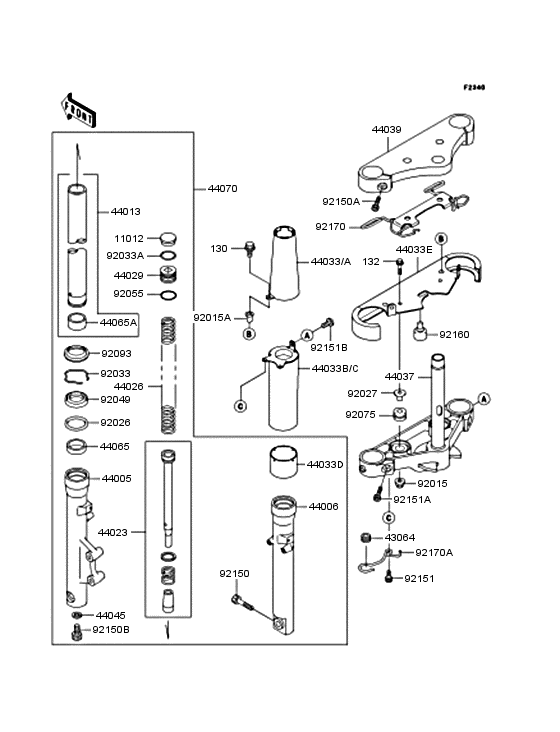

Front fork (VN400-C7) Diagram Kawasaki VN400 Vulcan Classic
- Year
- 2003
- Colour
- Metallic Ruby Red (468)
- Model code
- VN400-C8
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- VN400A 047001 -
- Engine
- VN400AE 000001 -
- Model
- VN400-C Vulcan Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1618 CAP,FORK TOPキヤツプ，フオ-ク トツプ |
11012-1618 |
from US $21.23 |
||
|
43064
|
43064
43064006 DAMPER RUBBER,CYL HSEクランプ ラバ- |
43064006 |
from US $3.17 |
||
|
44005
|
44005
44005-1366 PIPE-LEFT FORK OUTERチユ-ブ(レフトフオ-クアウタ) |
44005-1366 |
from US $360.10 |
||
|
44006
|
44006
44006-1365 PIPE-RIGHT FORK OUTERチユ-ブ(ライトフオ-クアウタ) |
44006-1365 |
US $360.10 |
||
|
44013
|
44013
44013-1426 PIPE-FORK INNERパイプ(フオ-クインナ) |
44013-1426 |
US $293.30 |
||
|
44023
|
44023
44023-1103 CYLINDER-COMP-FORKシリンダコンプ(フオ-ク) |
44023-1103 |
from US $104.27 |
||
|
44026
|
44026
44026-1615 SPRING-FRONT FORKスプリング(フロントフオ-ク) |
44026-1615 |
US $70.91 |
||
|
44029
|
44029
44029-1125 SEAT-FORK SPRINGシ-ト(フオ-クスプリング) |
44029-1125 |
from US $31.12 |
||
|
44033
|
44033
44033-1215 COVER-FORK,UPP,LHカバ-(フオ-ク)，UPP，LH |
44033-1215 |
from US $79.14 |
||
|
44033A
|
44033A
44033-1216 COVER-FORK,UPP,RHカバ-(フオ-ク)，UPP，RH |
44033-1216 |
from US $61.27 |
||
|
44033B
|
44033B
44033-1221 COVER-FORK,UNDER,LHカバ-(フオ-ク)，アンダ，LH |
44033-1221 |
from US $148.27 |
||
|
44033C
|
44033C
44033-1222 COVER-FORK,UNDER,RHカバ-(フオ-ク)，アンダ，RH |
44033-1222 |
from US $148.27 |
||
|
44033D
|
44033D
44033-1223 COVER-FORKカバ-(フオ-ク) |
44033-1223 |
from US $17.27 |
||
|
44033E
|
44033E
44033-1235 COVER-FORK,LWRカバ-(フオ-ク)，LWR |
44033-1235 |
from US $164.08 |
||
|
44037
|
44037
44037-1344 Holder-fork underホルダ(フオ-クアンダ) |
44037-1344 |
from US $332.51 |
||
|
44039
|
44039
44039-1260 HOLDER-FORK UPPERホルダ(フオ-クアツパ) |
44039-1260 |
from US $264.26 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLTガスケツト，フオ-ク シリンダ ボルト |
44045051 |
from US $4.59 |
||
|
44065
|
44065
44065-1079 BUSHING-FRONT FORKブツシング(フロントフオ-ク) |
44065-1079 |
from US $18.37 |
||
|
44065A
|
44065A
44065-1087 BUSHING-FRONT FORK,INブツシング(フロントフオ-ク)，インナ パイプ |
44065-1087 |
US $24.77 |
||
| replacement | |||||
|
44065A
|
44065A
44065-1080 BUSHING-FRONT FORK,INブツシング(フロントフオ-ク)，インナ パイプ |
44065-1080 |
from US $25.27 |
||
|
44070
|
44070
44070-1511
DAMPER-ASSY,FORK
ダンパアツシ，フオ-ク |
44070-1511 |
— | ||
| replacements | |||||
|
44070
|
44070
44070-1512 DAMPER-ASSY,FORK,LHダンパアツシ，フオ-ク |
44070-1512 |
from US $749.61 |
||
|
44070
|
44070
44070-1513 DAMPER-ASSY,FORK,RHダンパアツシ，フオ-ク |
44070-1513 |
from US $749.61 |
||
|
92015
|
92015
92015-1385 NUT,CAP,6MMナツト，キヤツプ，6MM |
92015-1385 |
from US $2.69 |
||
|
92015A
|
92015A
92015-1757 NUT,5MMナツト，ウエル，5MM |
92015-1757 |
from US $4.25 |
||
|
92026
|
92026
92026-1276 SPACER,FORK OUTERスペ-サ，フオ-ク アウタ |
92026-1276 |
from US $6.34 |
||
|
92027
|
92027
92027-1847 COLLAR,6=16.1カラ-，L=16.1 |
92027-1847 |
from US $3.64 |
||
|
92033
|
92033
92033-1222 RING-SNAP,FORK OUTERリング(スナツプ) |
92033-1222 |
from US $4.61 |
||
|
92033A
|
92033A
92033-1223 RING-SNAP,SPRING SEATリング(スナツプ)，スプリング シ-ト |
92033-1223 |
from US $4.12 |
||
|
92049
|
92049
92049-1363 SEAL-OILシ-ル(オイル)，フオ-ク |
92049-1363 |
from US $21.24 |
||
|
92055
|
92055
92055-1363 RING-O,SPRING SEATリング(0)，スプリング シ-ト |
92055-1363 |
from US $3.96 |
||
|
92075
|
92075
92075-1035 DAMPER RUBBERダンパ |
92075-1035 |
from US $3.80 |
||
|
92093
|
92093
92093-1268 SEAL,FORKシ-ル，フオ-ク |
92093-1268 |
from US $20.53 |
||
|
92150
|
92150
92150-1029 BOLT,SOCKET,10X40ボルト，ソケツト，10X40 |
92150-1029 |
from US $7.44 |
||
|
92150A
|
92150A
92150-1031 BOLT,SOCKET,8MMボルト，ソケツト，8X30 |
92150-1031 |
from US $6.49 |
||
|
92150B
|
92150B
92150-1432 Boltボルト，ソケツト，8X18 |
92150-1432 |
from US $6.34 |
||
|
92151
|
92151
92151-1068 BOLT,SOCKET,6X14ボルト，ソケツト，6X14 |
92151-1068 |
from US $3.33 |
||
|
92151A
|
92151A
92151-1083 Boltボルト，ソケツト，10X25; VN400-C7 |
92151-1083 |
from US $6.49 |
||
