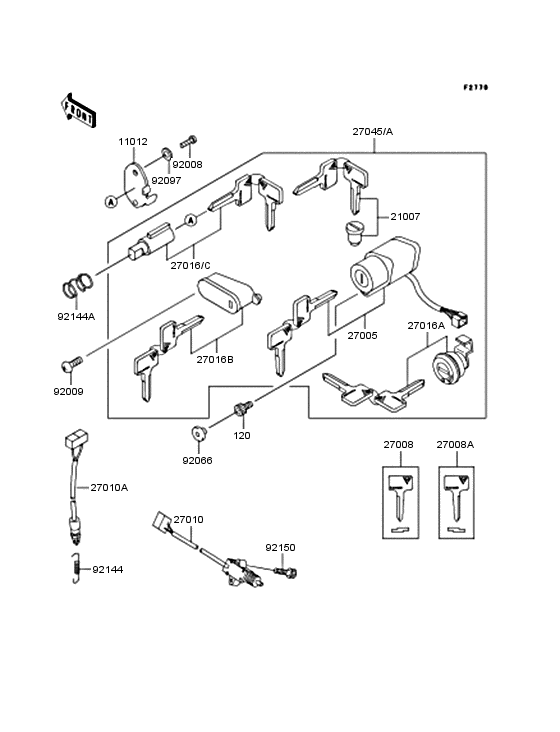

Ignition switch Diagram Kawasaki VN400 Vulcan Classic
- Year
- 2003
- Colour
- Metallic Ruby Red (468)
- Model code
- VN400-C8
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- VN400A 047001 -
- Engine
- VN400AE 000001 -
- Model
- VN400-C Vulcan Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0512 BOLT-SOCKET,5X12ボルト(ロツカクアナ) |
120P0512 |
from US $1.13 |
||
| replacement | |||||
|
120
|
120
120CA0512 BOLT-SOCKET,5X12ボルト(ロツカクアナ) |
120CA0512 |
from US $0.63 |
||
|
11012
|
11012
11012-1586 CAP,STEERING LOCKキヤツプ，ステアリング ロツク |
11012-1586 |
from US $6.18 |
||
|
21007
|
21007
21007-5024 Rotor,lock,tank capロ-タ，ロツク，タンク キヤツプ |
21007-5024 |
US $42.64 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAPロ-タ，ロツク，タンク キヤツプ |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-1204 SWITCH-ASSY-IGNITIONスイツチアツシ(イグニシヨン) |
27005-1204 |
from US $188.76 |
||
|
27008
|
27008
27008-1138 KEY-LOCK,BLANKキ-(ロツク)，ブランク，#A |
27008-1138 |
from US $15.36 |
||
|
27008A
|
27008A
27008-1139 KEY-LOCK,BLANKキ-(ロツク)，ブランク，#B |
27008-1139 |
from US $15.36 |
||
|
27010
|
27010
27010-1352 SWITCH,SIDE STANDスイツチ，サイドスタンド |
27010-1352 |
from US $57.15 |
||
|
27010A
|
27010A
27010-1487 SWITCH,REAR BRAKEスイツチ，リヤ ブレ-キ |
27010-1487 |
from US $25.13 |
||
|
27016
|
27016
27016-5131 LOCK-ASSY,STEERINGロツクアツシ，ステアリング |
27016-5131 |
US $77.27 |
||
| replacement | |||||
|
27016
|
27016
27016-5255 LOCK-ASSY,STEERINGロツクアツシ，ステアリング |
27016-5255 |
from US $67.17 |
||
|
27016A
|
27016A
27016-5225 LOCK-ASSY,LIDロツクアツシ |
27016-5225 |
from US $55.65 |
||
|
27016B
|
27016B
27016-5226 Lock-assy helmetロツクアツシ，ヘルメツト |
27016-5226 |
US $49.88 |
||
| replacement | |||||
|
27016B
|
27016B
27016-5311 LOCK-ASSY,HELMETロツクアツシ，ヘルメツト |
27016-5311 |
from US $49.22 |
||
|
27016C
|
27016C
27016-5299 LOCK-ASSY,STEERINGロツクアツシ，ステアリング |
27016-5299 |
from US $55.65 |
||
| replacement | |||||
|
27016C
|
27016C
27016-5255 LOCK-ASSY,STEERINGロツクアツシ，ステアリング |
27016-5255 |
from US $67.17 |
||
|
27045
|
27045
27045-5040 SWITCH-ASSYスイツチアツシ |
27045-5040 |
from US $271.52 |
||
| replacement | |||||
|
27045
|
27045
27045-5191
SWITCH-ASSY
スイツチアツシ |
27045-5191 |
— | ||
|
27045A
|
27045A
27045-5191
SWITCH-ASSY
スイツチアツシ |
27045-5191 |
— | ||
|
92008
|
92008
92008-007 SCREW-TAPPINGタツピング スクリユ-，3.51MM |
92008-007 |
from US $3.73 |
||
|
92009
|
92009
92009-1296 SCREW,5X12スクリユ-，5X12 |
92009-1296 |
from US $2.53 |
||
|
92066
|
92066
92066-1435 PLUGプラグ |
92066-1435 |
from US $1.90 |
||
|
92097
|
92097
92097-003 WASHERウエ-ブ ワツシヤ |
92097-003 |
from US $3.17 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWIスプリング，リヤ ブレ-キ スイツチ |
92144-1141 |
from US $3.33 |
||
|
92144A
|
92144A
92144-1222 SPRING,STEERING LOCKスプリング，ステアリング ロツク |
92144-1222 |
from US $3.33 |
||
|
92150
|
92150
92150-1491 Boltボルト，ソケツト，5X22 |
92150-1491 |
from US $2.53 |
||
