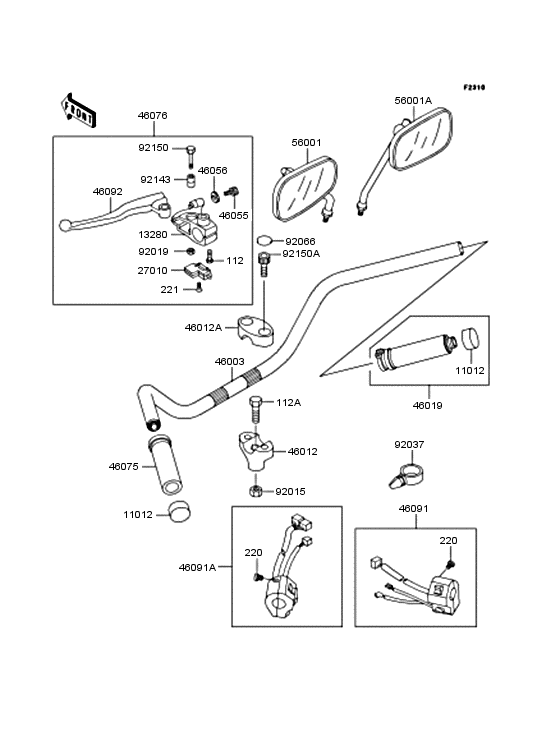

Handlebar Diagram Kawasaki VN400 Vulcan Drifter
- Year
- 1999
- Colour
- Sky Blue (Q5)
- Model code
- VN400-D1
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- VN400D 000001 - 003000
- Engine
- VN400AE 000001 -
- Model
- VN400-D Vulcan Drifter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0620
BOLT-UPSET
ボルト(アプセツト) |
112G0620 |
— | ||
| replacement | |||||
|
112
|
112
112BA0620 BOLT-UPSETボルト(アプセツト) |
112BA0620 |
from US $0.95 |
||
|
112A
|
112A
112H1065 BOLT-UPSET,10X65ボルト(アプセツト)，10X65 |
112H1065 |
from US $2.06 |
||
| replacement | |||||
|
112A
|
112A
112BA1065 BOLT-UPSET,10X65ボルト(アプセツト)，10X65 |
112BA1065 |
from US $1.74 |
||
|
220
|
220
220C0525
SCREW-PAN-CROS
ナベコネジ(+ジアナ) |
220C0525 |
— | ||
| replacement | |||||
|
220
|
220
220AB0525 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220AB0525 |
from US $0.95 |
||
|
221
|
221
221B0320 SCREW-CSK-CROS,3X20サラコネジ(+ジアナ)，3X20 |
221B0320 |
from US $1.11 |
||
| replacement | |||||
|
221
|
221
221AA0320 SCREW-CSK-CROS,3X20サラコネジ(+ジアナ)，3X20 |
221AA0320 |
from US $0.78 |
||
|
11012
|
11012
11012-1975 CAP,GRIP ENDキヤツプ，グリツプ エンド |
11012-1975 |
from US $17.52 |
||
|
13280
|
13280
13280-1101 HOLDER,CLUTCH LEVERホルダ，クラツチ レバ- |
13280-1101 |
from US $39.49 |
||
|
27010
|
27010
27010-1268 SWITCH,CLUTCHスイツチ，クラツチ |
27010-1268 |
from US $21.07 |
||
|
46003
|
46003
46003-1512 HANDLEハンドル |
46003-1512 |
from US $121.33 |
||
| replacement | |||||
|
46003
|
46003
46003-0562
HANDLE
ハンドル |
46003-0562 |
— | ||
|
46012
|
46012
46012-1291 HOLDER-HANDLE,LWRホルダ(ハンドル)，LWR |
46012-1291 |
from US $79.07 |
||
|
46012A
|
46012A
46012-1292 HOLDER-HANDLE,UPPホルダ(ハンドル)，UPP |
46012-1292 |
from US $53.71 |
||
|
46019
|
46019
46019-1109 GRIP-ASSY,THROTTLEグリツプアツシ，スロツトル |
46019-1109 |
from US $53.48 |
||
|
46055
|
46055
46055003 SCREW CABLE ADJUSTアジヤスト スクリユ-，8MM |
46055003 |
from US $11.09 |
||
|
46056
|
46056
46056005 NUT-LOCKロツキング ナツト，ケ-ブル アジヤスト ロツク，8M |
46056005 |
from US $6.02 |
||
|
46075
|
46075
46075-1074
GRIP,LH
グリツプ，LH |
46075-1074 |
— | ||
| replacement | |||||
|
46075
|
46075
46075-0652 GRIP, LHグリツプ，LH |
46075-0652 |
from US $22.40 |
||
|
46076
|
46076
46076-1220 LEVER-ASSY-GRIP,CLUTCレバ-アツシ(グリツプ)，クラツチ |
46076-1220 |
from US $84.49 |
||
|
46091
|
46091
46091-1759 HOUSING-ASSY-CONTROL,ハウジングアツシ(コントロ-ル)，RH |
46091-1759 |
US $174.24 |
||
|
46091A
|
46091A
46091-1781 Housing assembly (control), lhハウジングアツシ(コントロ-ル)，LH |
46091-1781 |
US $216.35 |
||
|
46092
|
46092
46092-1204 LEVER-GRIP,CLUCTHレバ-(グリツプ)，クラツチ |
46092-1204 |
from US $26.18 |
||
|
56001
|
56001
56001-1451 MIRROR-ASSY,LHミラ-アツシ，LH |
56001-1451 |
from US $59.69 |
||
|
56001A
|
56001A
56001-1452 MIRROR-ASSY,RHミラ-アツシ，RH |
56001-1452 |
from US $59.69 |
||
|
92015
|
92015
92015-1717 NUT,LOCK,FLANGED,10MMナツト，ロツク，フランジ，10MM |
92015-1717 |
from US $6.34 |
||
|
92019
|
92019
92019-008 NUTセルフロツク ナツト，6MM |
92019-008 |
from US $2.53 |
||
|
92037
|
92037
92037-1827 Clamp,Hoseクランプ，ホ-ス |
92037-1827 |
from US $6.21 |
||
|
92066
|
92066
92066-1285 PLUGプラグ |
92066-1285 |
from US $5.23 |
||
|
92143
|
92143
92143-1351 COLLARカラ- |
92143-1351 |
from US $11.56 |
||
|
92150
|
92150
92150-1330 BOLT,LEVER SETボルト，レバ- セツト |
92150-1330 |
from US $9.19 |
||
|
92150A
|
92150A
92150-1942 BOLT,SOCKET,10X23ボルト，ソケツト，10X23 |
92150-1942 |
from US $3.96 |
||
