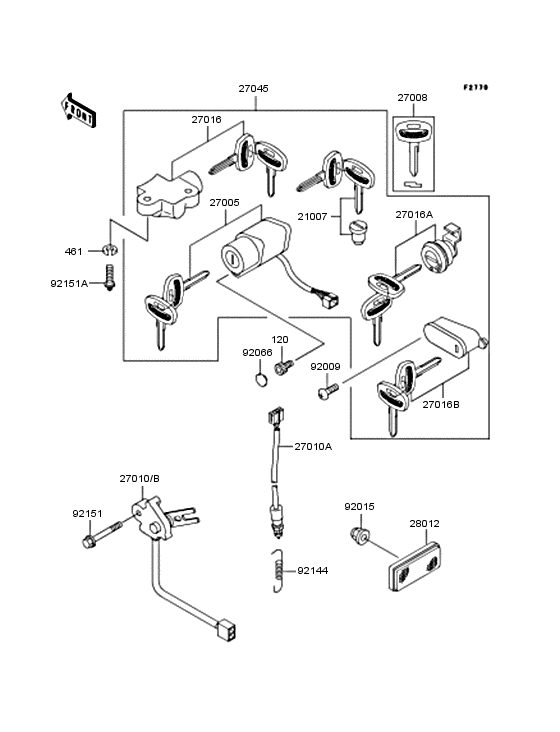

Ignition switch Diagram Kawasaki VN400 Vulcan Drifter
- Year
- 2001
- Colour
- Pearl Purplish Black Mica (20)
- Model code
- VN400-D3
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- VN400D 008001 - 010000
- Engine
- VN400AE 000001 -
- Model
- VN400-D Vulcan Drifter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0512 BOLT-SOCKET,5X12ボルト(ロツカクアナ) |
120P0512 |
from US $1.13 |
||
| replacement | |||||
|
120
|
120
120CA0512 BOLT-SOCKET,5X12ボルト(ロツカクアナ) |
120CA0512 |
from US $0.63 |
||
|
461
|
461
461L0600 WASHER-SPRING,6MMバネザガネ |
461L0600 |
US $4.30 |
||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMバネザガネ |
461DA0600 |
from US $0.55 |
||
|
21007
|
21007
21007-5047 SWITCH-ASSY,TANK CAPロ-タ，ロツク，タンク キヤツプ |
21007-5047 |
US $61.76 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAPロ-タ，ロツク，タンク キヤツプ |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-1257 SWITCH-ASSY-IGNITIONスイツチアツシ(イグニシヨン) |
27005-1257 |
from US $178.63 |
||
|
27008
|
27008
27008-1208 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1208 |
from US $20.43 |
||
|
27010
|
27010
27010-1396 SWITCH,SIDE STANDスイツチ，サイド スタンド |
27010-1396 |
from US $61.04 |
||
| replacement | |||||
|
27010
|
27010
27010-1466 SWITCH,SIDE STANDスイツチ，サイド スタンド |
27010-1466 |
US $62.23 |
||
|
27010A
|
27010A
27010-1412 SWITCH,REAR BRAKEスイツチ，リヤ ブレ-キ |
27010-1412 |
from US $26.33 |
||
|
27010B
|
27010B
27010-1466 SWITCH,SIDE STANDスイツチ，サイド スタンド |
27010-1466 |
US $62.23 |
||
|
27016
|
27016
27016-5269 LOCK-ASSY,STEERINGロツクアツシ，ステアリング |
27016-5269 |
US $58.49 |
||
|
27016A
|
27016A
27016-5275 LOCK-ASSY,LIDロツクアツシ，リツド |
27016-5275 |
US $61.87 |
||
| replacement | |||||
|
27016A
|
27016A
27016-5225 LOCK-ASSY,LIDロツクアツシ，リツド |
27016-5225 |
from US $55.65 |
||
|
27016B
|
27016B
27016-5276 LOCK-ASSY,HELMETロツクアツシ，ヘルメツト |
27016-5276 |
from US $58.49 |
||
| replacement | |||||
|
27016B
|
27016B
27016-5311 LOCK-ASSY,HELMETロツクアツシ，ヘルメツト |
27016-5311 |
from US $49.22 |
||
|
27045
|
27045
27045-5129 SWITCH-ASSYスイツチアツシ |
27045-5129 |
from US $274.43 |
||
|
28012
|
28012
28012-1077 Reflector-reflexリフレクタ(リフレツクス) |
28012-1077 |
from US $19.66 |
||
|
92009
|
92009
92009-1296 SCREW,5X12スクリユ-，5X12 |
92009-1296 |
from US $2.53 |
||
|
92015
|
92015
92015-1263 NUT,LOCK 5MMナツト，ロツク，フランジ キヤツプ，5MM |
92015-1263 |
from US $3.80 |
||
|
92066
|
92066
92066-1435 PLUGプラグ |
92066-1435 |
from US $1.90 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWIスプリング，リヤ ブレ-キ スイツチ |
92144-1141 |
from US $3.33 |
||
|
92151
|
92151
92151-1576 BOLT,6X45ボルト，6X45 |
92151-1576 |
from US $1.82 |
||
|
92151A
|
92151A
92151-1946 BOLT,TORX,6X22ボルト，トルクス，6X22 |
92151-1946 |
from US $2.53 |
||
| replacement | |||||
|
92151A
|
92151A
92154-1858 BOLT,TORX,6X22ボルト，トルクス，6X22 |
92154-1858 |
from US $3.02 |
||
